a. In the navigation tree, choose WAN > WAN Configuration.

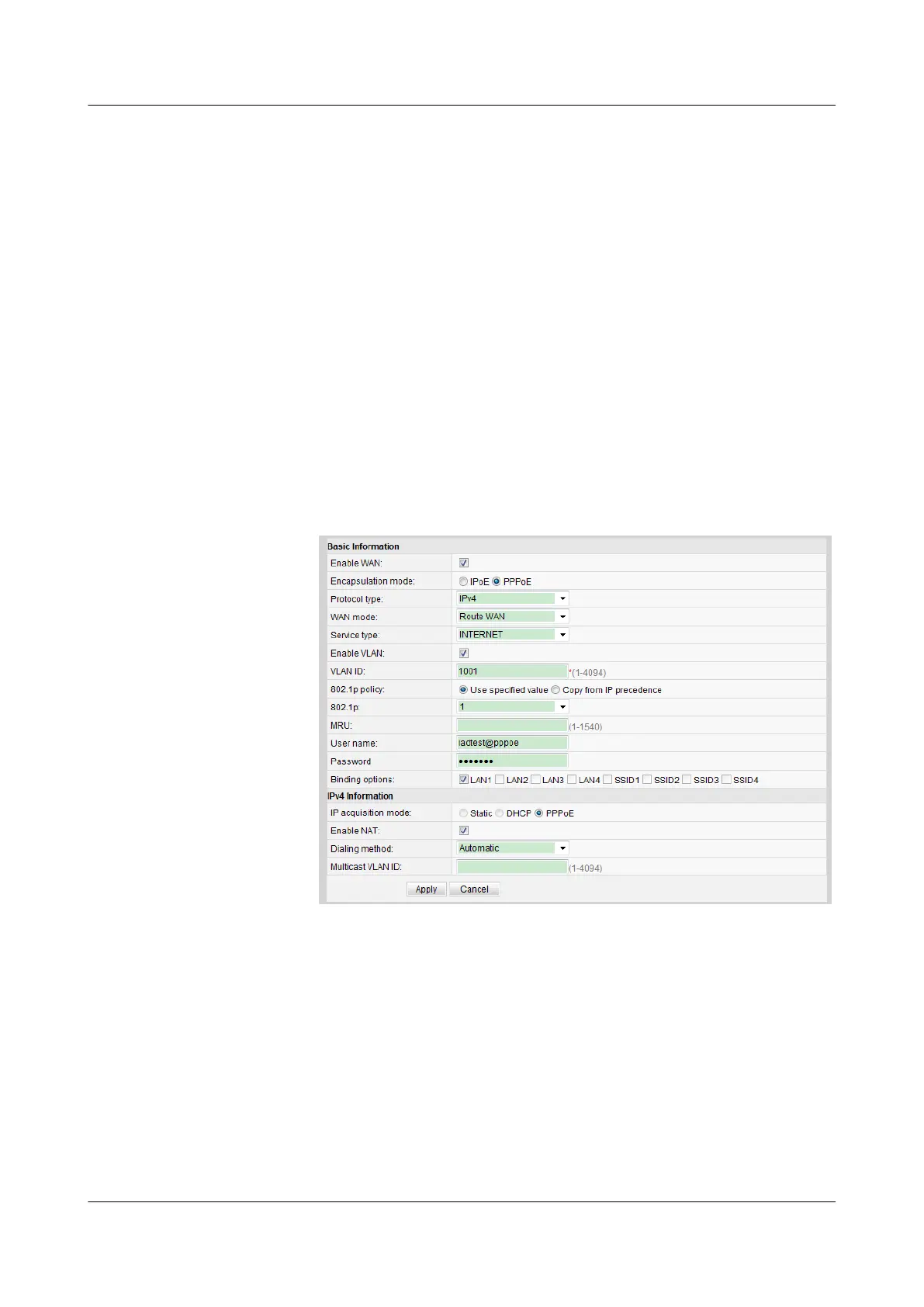

b. In the right pane, click New. In the dialog box that is displayed, configure
parameters of a WAN port as follows:
– WAN Connection: Enable
– Encapsulation Mode: PPPoE
– WAN mode: Route WAN
– Service type: INTERNET (For configuring the Internet access service,
INTERNET or a combination containing INTERNET needs to be selected.)
– VLAN ID: 1001 (The VLAN ID of the ONU must be the same as the user-
side VLAN ID configured on the OLT.)
– 802.1p: 1
– User Name: iadtest@pppoe, Password: iadtest (The user name and password
must be the same as the user name and password configured on the BRAS.)
– Binding options: LAN1
– IP acquisition Mode: PPPoE
– NAT: Enable (NAT must be enabled to configure the Internet access service.)
c. Click Apply to apply the configuration.
4. Save the configuration.
In the navigation tree, choose System Tools > Configuration File. In the right pane,
click Save Configuration to save the configuration.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide
12 FTTO Configuration(SOHO and SME)
Issue 01 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
1106
