Huawei SmartAX MA5608T User Manual

Configuration File
vlan 2 smart
port vlan 2 0/19 0
interface vlanif 2
ip address 10.50.1.10 255.255.255.0
quit
ip route-static 10.10.1.0 24 10.50.1.1
save
1.4.4 Interconnection Commissioning of the MG Interface
The MG interface is a communication interface between the MA5600T/MA5603T/MA5608T
and the MGC. Based on different control protocols between the MA5600T/MA5603T/
MA5608T and the MGC, the MG interface can adopt the H.248 protocol or the MGCP protocol.
The communication between the MA5600T/MA5603T/MA5608T and the MGC can be in the
normal state and the services and functions can be implemented, only when the MG interface is
in the normal state. This topic describes how to commission the interconnection between the
MA5600T/MA5603T/MA5608T and the MGC.
1.4.4.1 Commissioning the Interconnection with the MG Interface(H.248)
This topic describes how to check whether the MG interface can normally communicate with
the MGC through the H.248 protocol.
Service Requirements
In the network as shown in Figure 1-73, the service requirements are as follows:
l The MA5600T/MA5603T/MA5608T uses the H.248 protocol.
l The media IP address is the same as the signaling IP address, and the media stream and the
signaling stream are transmitted upstream through the same Ethernet port on the GIU board.
l The media stream and the signaling stream use the default QoS policy for upstream
transmission.
l Various terminals connected to the MG interface use the default TID profile, and the
software parameters of the MG interface use the default settings.
l The MGC identifies the MG through the signaling IP address (IP address of the MG
interface), and their communication packets do not contain any VLAN tag.

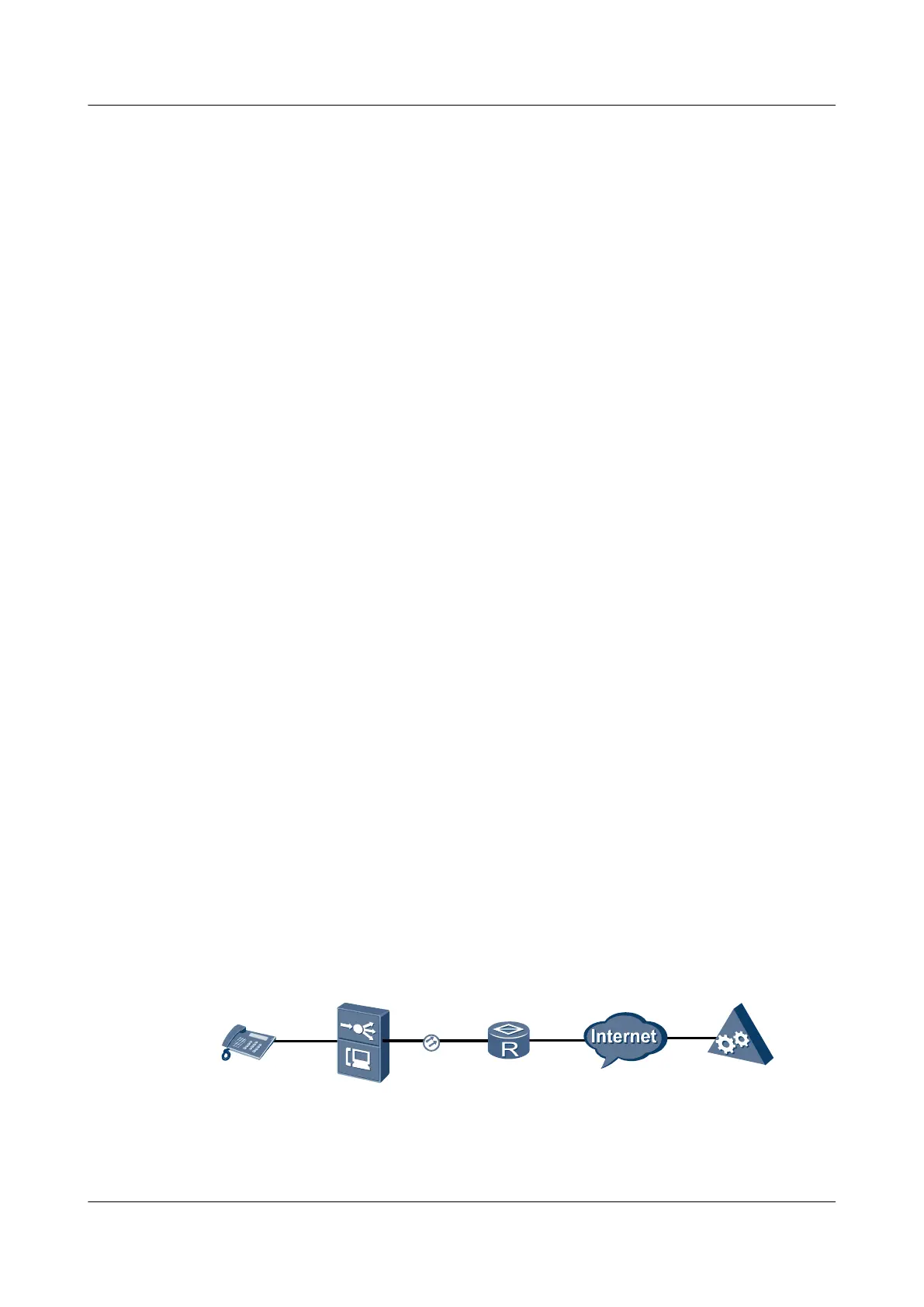

Figure 1-73 Example network for commissioning the interconnection with the MG interface
(H.248)
MGC
10.10.1.4/24
H.248
Access node
10.50.1.10/24
VLAN:50
Router
10.50.1.1/24
Phone
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide
1 Commissioning
Issue 01 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
165

Huawei SmartAX MA5608T Specifications

General

Dual Power Supply	Yes
Humidity	5% to 95% (non-condensing)
Uplink Slots	2
Maximum GPON Ports	16
Input Voltage Range	-38.4 V DC to -72 V DC
Device Type	OLT
Power Supply	-48 V DC
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to 70°C
Switching Capacity	128 Gbps
Ports	GPON, XG-PON, 10GE
