Services are mainly implemented on the HGW, and the bridging ONU works with the OLT to
provide Layer 2 channels.

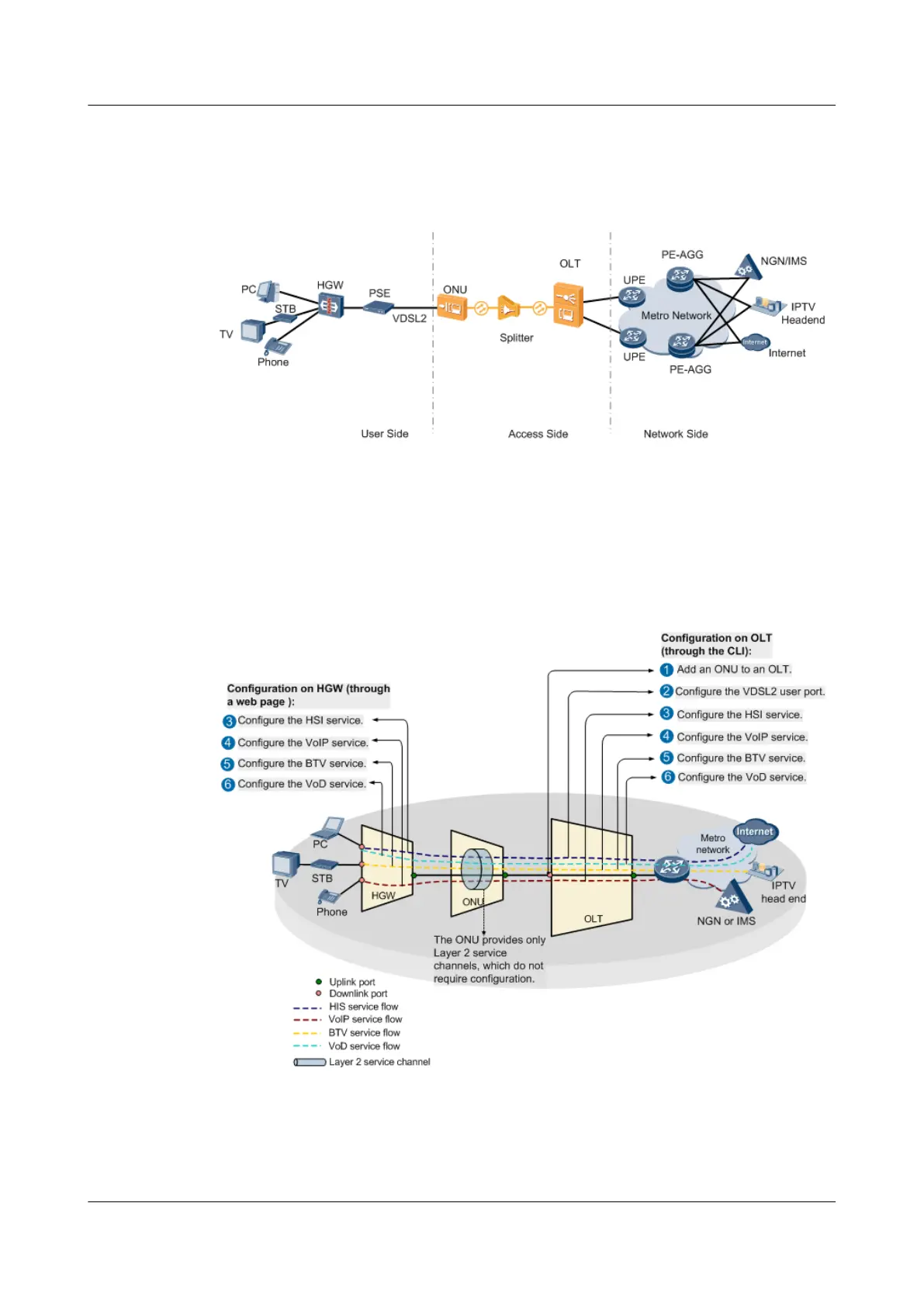

Figure 10-9 Bridging ONU + HGW
10.6.2.2 Configuration Process
Figure 10-10 shows the configuration roadmap in fiber to the door (FTTD) networking using a
bridging optical network unit (ONU)+home gateway (HGW).
Figure 10-10 Configuration roadmap in FTTD networking using a bridging ONU+HGW
The following table describes the configuration steps.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide
10 FTTD Configuration
Issue 01 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
787
