14.4.9.5 Configuring the Remote Software Commissioning Policy (GPON Dock
Scenario)
Prerequisites
The configuration script is available.
Context
If you configure a remote software commissioning policy through the NMS, the NMS, according
to the ONU type and the configured policy, will automatically issue the configuration script to
the FTTM ONUs once the ONUs go online, and the service channels will be automatically
established.
Procedure
Step 1 Choose Configuration > FTTx Service Pre-Deployment > ONU PnP Management
(compatibility style) from the main menu or select Fix-Network NE Configuration in
Application Center and choose Access Service > FTTx Service Pre-Deployment > ONU PnP
Management (application style) from the main menu.
Step 2 Click the ONU Onsite Commissioning-Free Configuration tab.
Step 3 Right-click in a blank area and choose Add from the shortcut menu. In the dialog box that is
displayed, configure a GPON-upstream MDU commissioning-free policy.

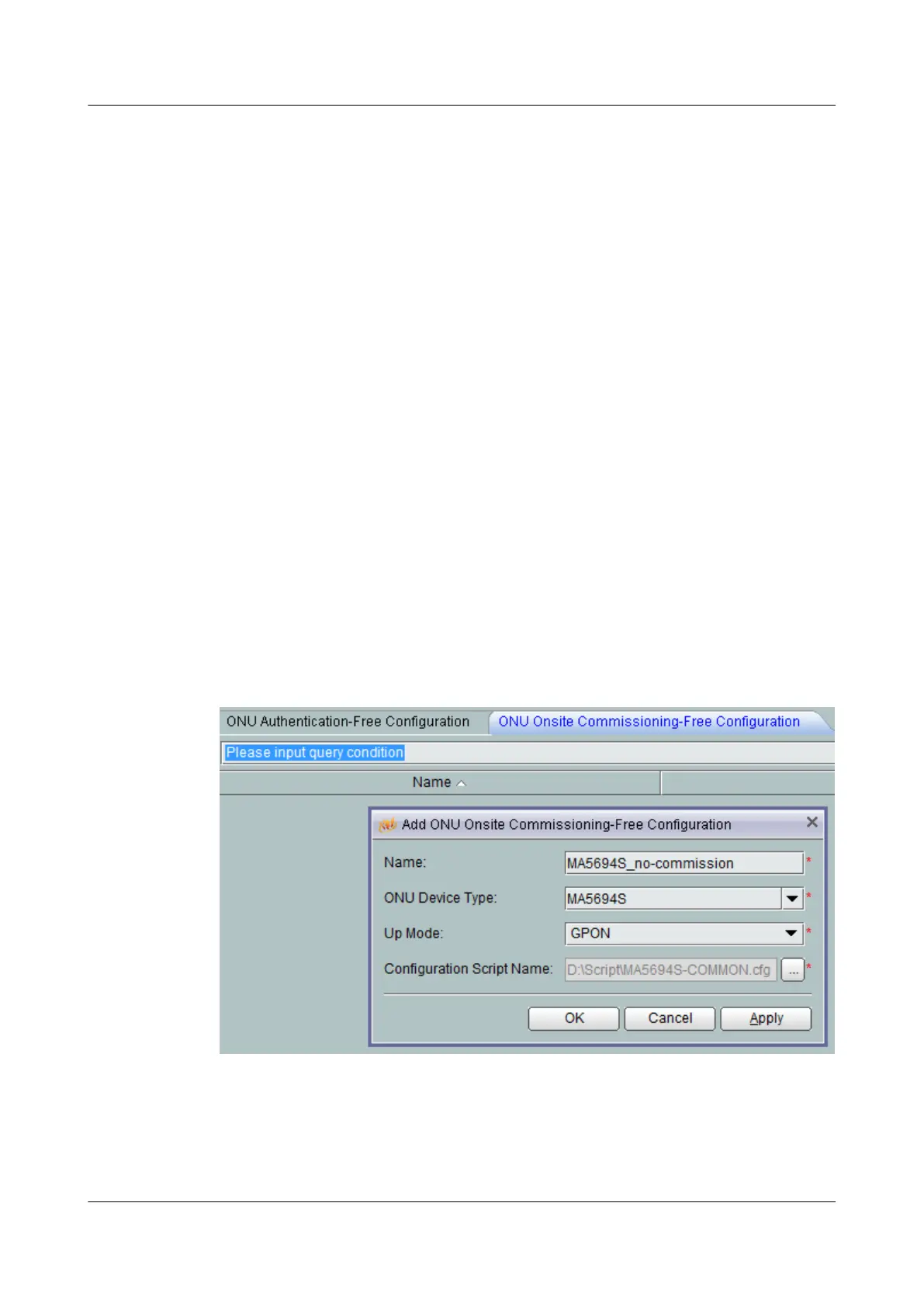

The following figure shows the configuration dialog box.
----End
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide
14 FTTM Configuration (Base Station Access)
Issue 01 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
1511
