Huawei SmartAX MA5608T User Manual

Synchronization
Solution
Usage Scenario Advantage Limitation or
Hardware
Requirements
End-to-end 1588v2
clock
Applies to the BTS
that requires time
synchronization,
such as CDMA2000/
TD-SCDMA/LTE.
When the OLT
upstream network
supports 1588V2 hop
by hop, this solution
is recommended.
1. This solution
supports time
synchronization
and frequency
synchronization
and provides
high-precision
time. The clock
quality meets G.
813 and G.8262
specifications.
2. This solution
does not require a
1588V2 server on
the OLT.
The upstream
network of the OLT
should support
1588V2 hop by hop.
14.3.2 Configuring BITS Clock Synchronization
The OLT receives the clock through the BITS and transmits the clock to the ONU through the
PON line and then downstream to the base station, implementing clock synchronization of the
entire network.
Application Context
As shown in Figure 14-2, the OLT receives the clock from the BITS and the clock share the
same clock source with the BSC/RNC. Then the OLT transmits the clock to the ONU through
the PON line clock. After recovering the clock, the ONU transmits the clock to the base station
through the E1 or FE/GE port.

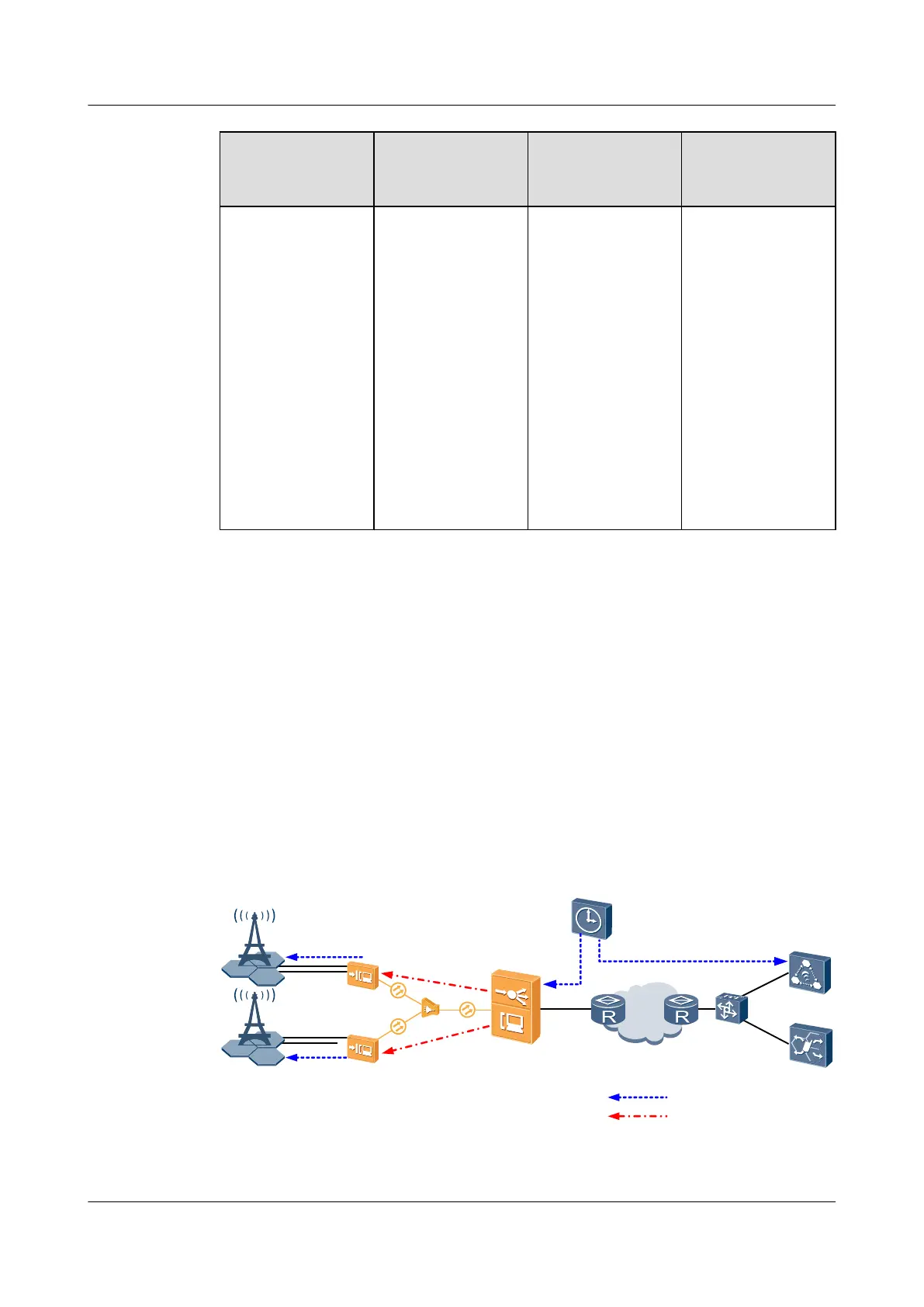

Figure 14-2 BITS clock synchronization
PSN
N*E1
BTS
OLT
BSC
NodeB
N*E1
ONU
RNC
CX600
GE/10GE
BITS clock
PON line clock
FE/GE
GE
BITS
ONU
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide
14 FTTM Configuration (Base Station Access)
Issue 01 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
1381

Huawei SmartAX MA5608T Specifications

General

Dual Power Supply	Yes
Humidity	5% to 95% (non-condensing)
Uplink Slots	2
Maximum GPON Ports	16
Input Voltage Range	-38.4 V DC to -72 V DC
Device Type	OLT
Power Supply	-48 V DC
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to 70°C
Switching Capacity	128 Gbps
Ports	GPON, XG-PON, 10GE
