Huawei SmartAX MA5608T User Manual

15.3.2.2 Configuration Process

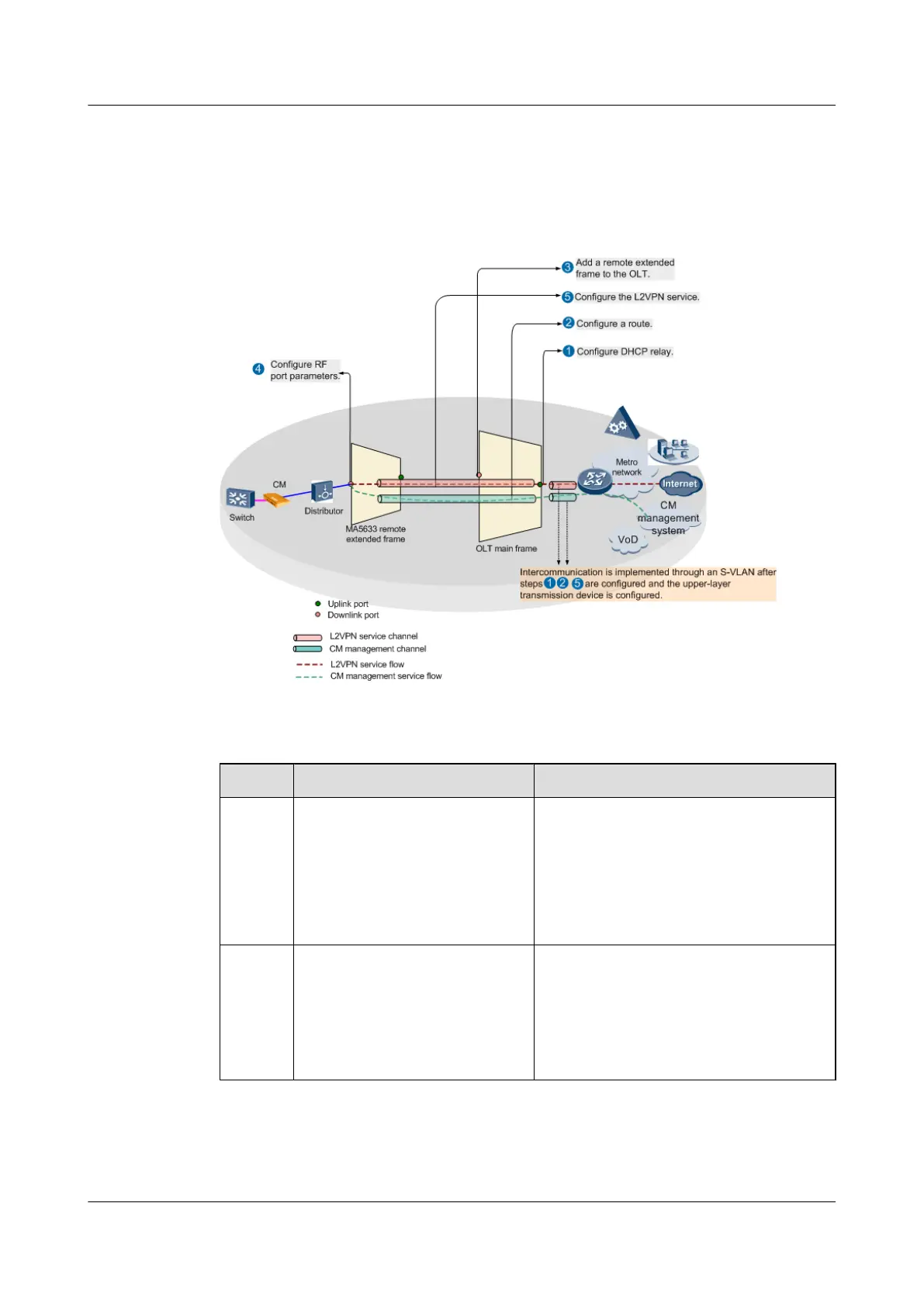

Figure 15-11 shows the configuration roadmap for the L2VPN service networking.
Figure 15-11 Configuration roadmap for the L2VPN service networking
The following table describes the configuration steps. All configurations are issued from the
optical line terminal (OLT).
No. Step Description
1
l IPv4: Configure Dynamic
Host Configuration Protocol
(DHCP) relay.
l IPv6: Configure Dynamic
Host Configuration Protocol
(DHCP) relay (IPv6).
This section describes how to configure
Dynamic Host Configuration Protocol
(DHCP) relay so that cable modems (CMs)
can obtain IP addresses in different network
segments.
2
l IPv4: Configure a route.
l IPv6: Configure a route
(IPv6).
This section describes how to implement
network communication by configuring a
route in Layer 3 networking with an optical
line terminal (OLT). Through the route,
packets are forwarded at Layer 3 between the
OLT and its upper-layer devices or servers.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide
15 OptiCable D-CMTS Configuration (MA5633 Working as
a Remote Extended Frame)
Issue 01 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
1570
