11.1 FTTB and FTTC Service Overview
This topic describes FTTB and FTTC services from basic concepts, network scenarios, typical
configurations, and ONU capability sets to provide necessary background information for FTTB
and FTTC service configuration in different scenarios.
11.1.1 Basic Concept
FTTB and FTTC solutions involve many concepts. This topic describes concepts involved in
FTTB and FTTC solutions from user side to network side based on the following integrated
FTTB and FTTC network diagram.

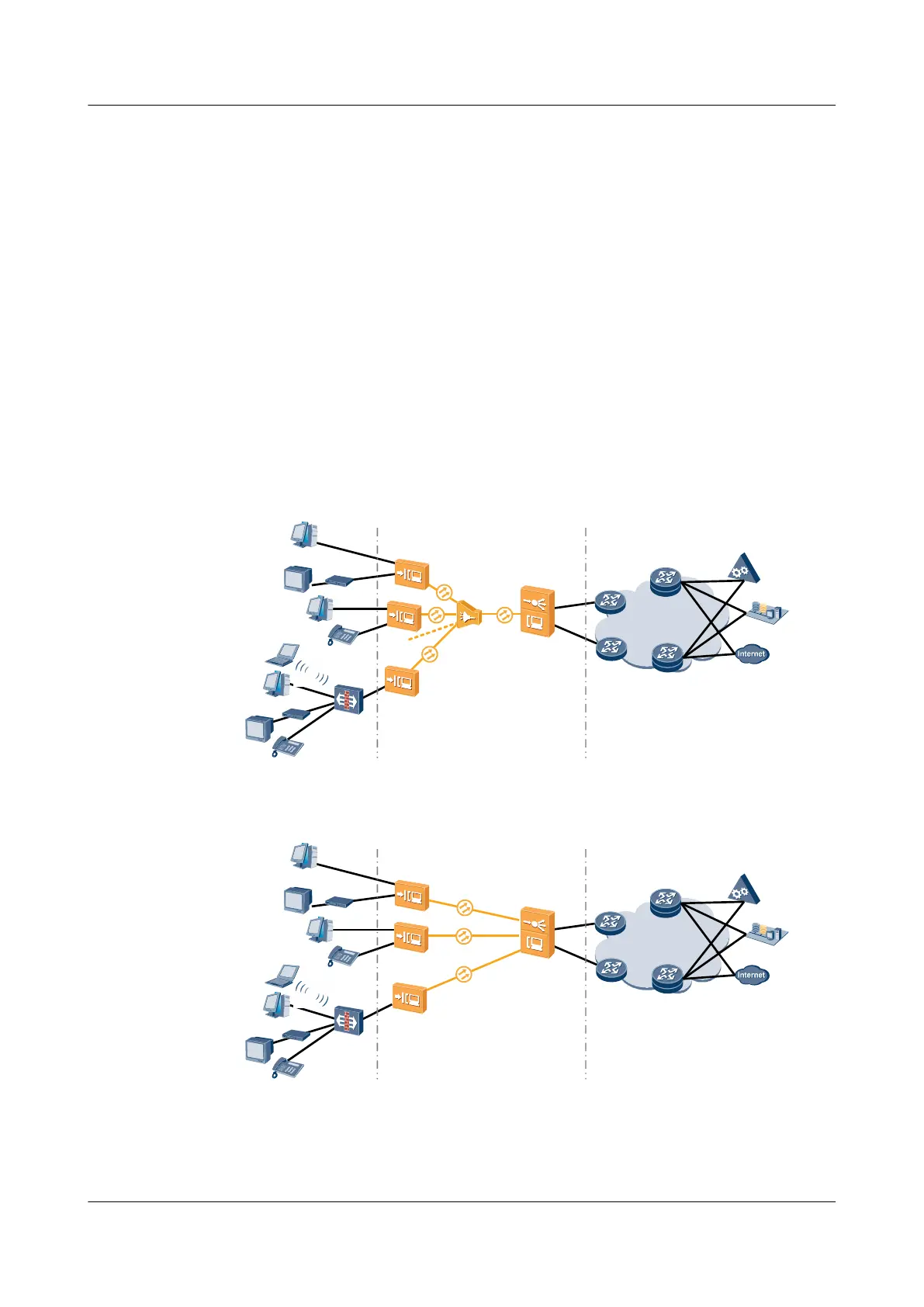

Integrated FTTB and FTTC Network Diagram
Figure 11-1 Integrated FTTB and FTTC network diagram (PON)
Metro Network
NGN/IMS
IPTV
Headend
Internet
UPE
PE-AGG
Splitter
OLT
ONU
HGW
PC
TV
STB
Phone
Laptop
PC
TV
STB
Phone
ONU
PE-AGG
UPE
Access Side Network SideUser Side
Figure 11-2 Integrated FTTB and FTTC network diagram (Ethernet cascading)
Metro Network
NGN/IMS
IPTV
Headend
Internet
UPE
PE-AGG
OLT
ONU
HGW
PC
TV
STB
Phone
Laptop
PC
TV
STB
Phone
ONU
PE-AGG
UPE
Access Side Network SideUser Side
FE/GE
FE/GE
FE/GE
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide 11 FTTB and FTTC Solution Configuration
Issue 01 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
815

Huawei SmartAX MA5608T Specifications

General

Dual Power Supply	Yes
Humidity	5% to 95% (non-condensing)
Uplink Slots	2
Maximum GPON Ports	16
Input Voltage Range	-38.4 V DC to -72 V DC
Device Type	OLT
Power Supply	-48 V DC
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to 70°C
Switching Capacity	128 Gbps
Ports	GPON, XG-PON, 10GE
