Huawei SmartAX MA5608T User Manual

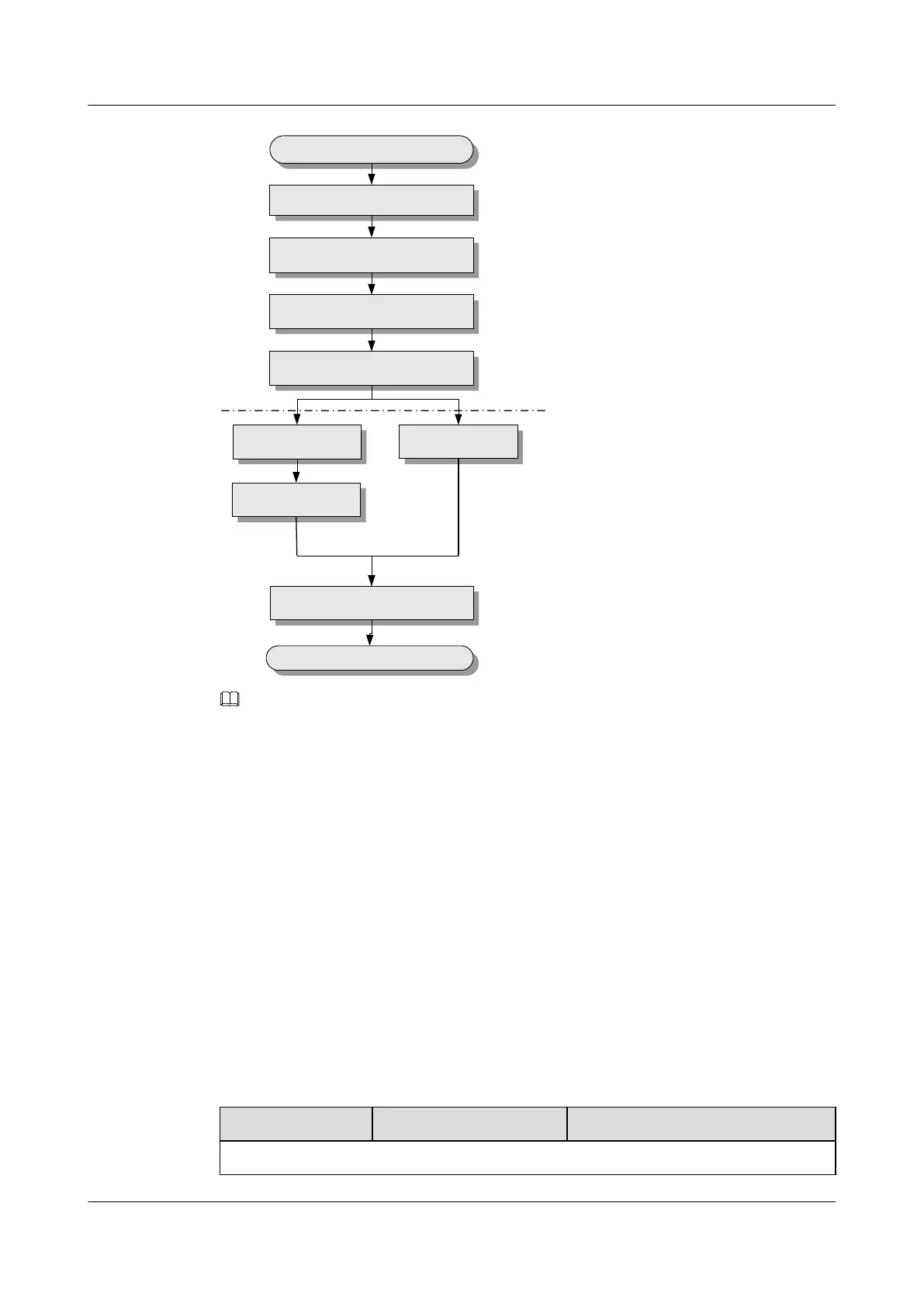

Add an ONU on the OLT
Configure the service channel
between the OLT and the ONU
Configure the VoIP
service (H.248/SIP)
Configure the management channel
between the OLT and the ONU
Start
Configure the link aggregation,
congestion control, and security policy
Configure the xDSL
Internet access service
Verify the Internet access service and
VoIP service
End
OLT
ONU
(Optional) Configure
Vectoring
NOTE
Texts in blue show the configuration difference between IPv6 and IPv4.
19.3.4 Configuration Example
Introduce the end-to-end service configuration based on the FTTB/C without HGW networking
and the corresponding data plan.
Key Messages for Configuration
l Even after IPv6 is used, the OLT and ONU implement Layer 2 forwarding in this
networking, irrespective of whether the access service is IPv4 or IPv6. Service
configurations for IPv4 and IPv6 are the same.
l For the HSI service from one end user, one service flow is used to carry IPv6 and IPv4
Internet services, and the same service VLAN is used.
l Even after IPv6 is used, the voice service is still realized by IPv4.
Data plan on the OLT side
Item Data Memo
ONU data plan
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide 19 IPv6 Configuration
Issue 01 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
1889

Huawei SmartAX MA5608T Specifications

General

Dual Power Supply	Yes
Humidity	5% to 95% (non-condensing)
Uplink Slots	2
Maximum GPON Ports	16
Input Voltage Range	-38.4 V DC to -72 V DC
Device Type	OLT
Power Supply	-48 V DC
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to 70°C
Switching Capacity	128 Gbps
Ports	GPON, XG-PON, 10GE
