Huawei SmartAX MA5608T User Manual

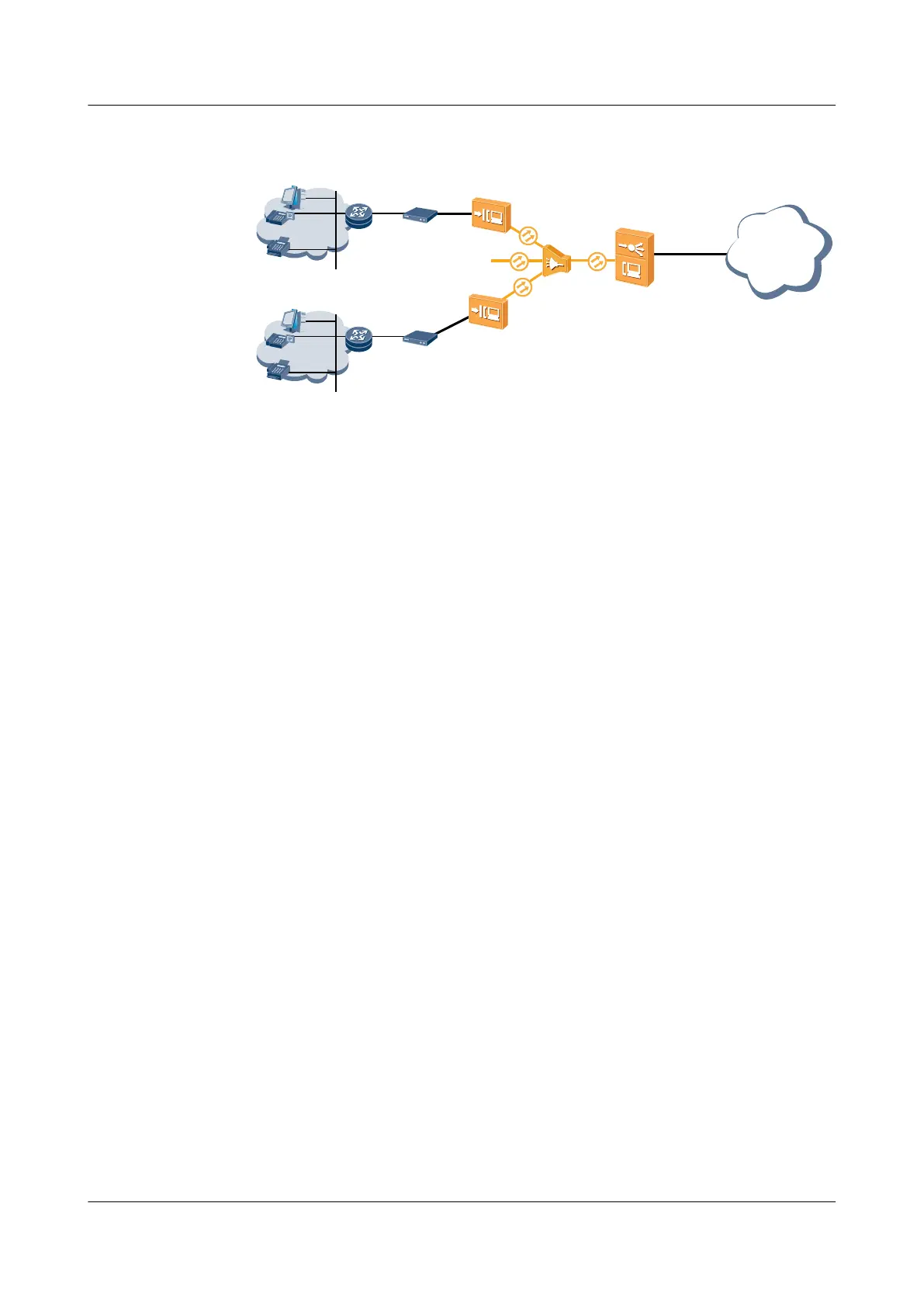

Figure 13-5 Networking diagram of the DDN private line access service
Splitter
OLT
ONU
ONU
SDH
DDN Node
Machine
Protocol
Converter
DDN
Digital Terminal
V.24/
V.35
E1
E1/STM-1
DDN Node
Machine
DDN
Digital Terminal
V.24/
V.35
E1
Protocol
Converter
13.3.2.2 Configuration Process
The following figure shows the configuration process for the DDN private line access service.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide 13 FTTO Configuration (Large-sized Enterprise Access)
Issue 01 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
1288

Huawei SmartAX MA5608T Specifications

General

Dual Power Supply	Yes
Humidity	5% to 95% (non-condensing)
Uplink Slots	2
Maximum GPON Ports	16
Input Voltage Range	-38.4 V DC to -72 V DC
Device Type	OLT
Power Supply	-48 V DC
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to 70°C
Switching Capacity	128 Gbps
Ports	GPON, XG-PON, 10GE
