Huawei SmartAX MA5608T User Manual

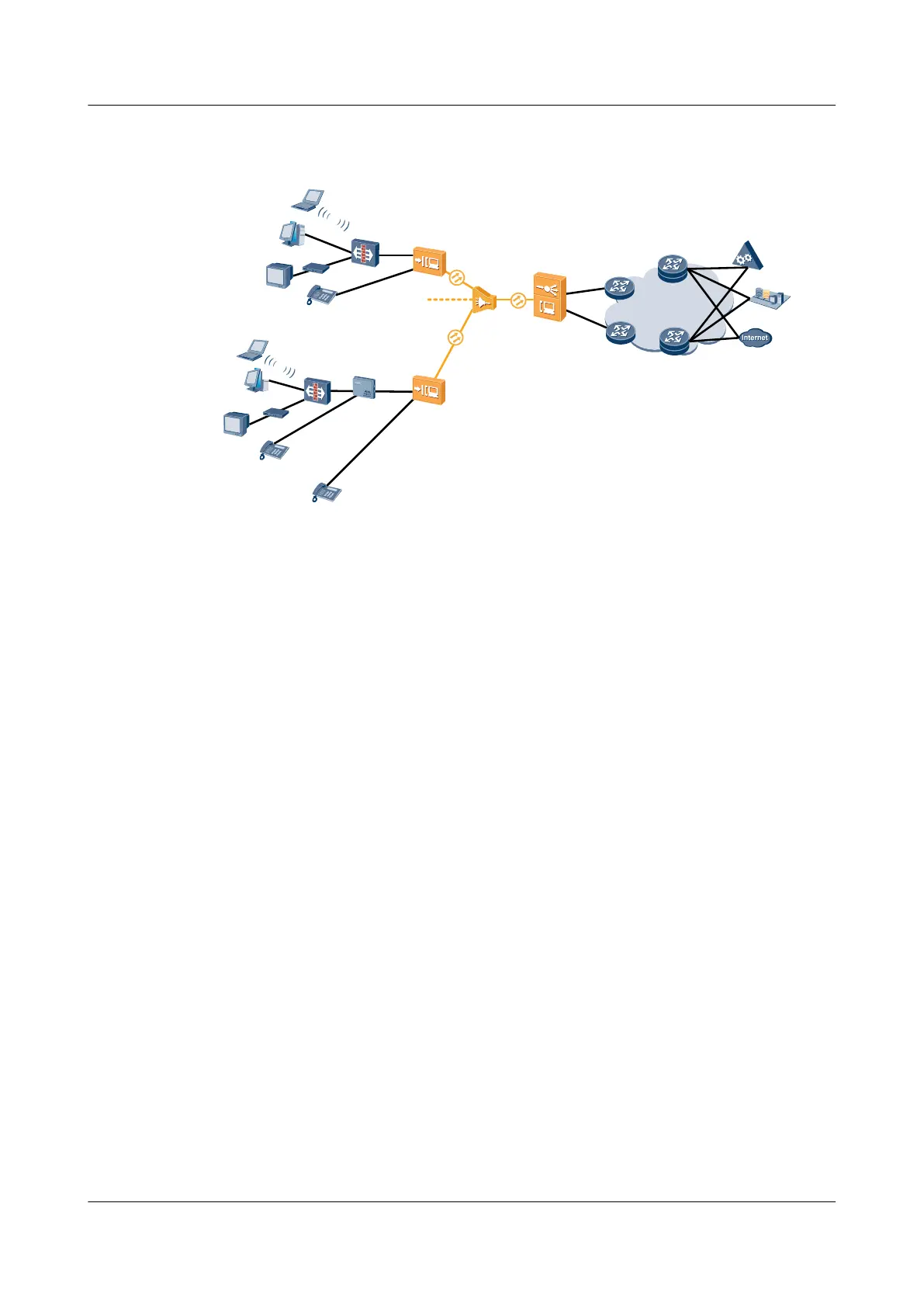

Figure 11-7 GPON FTTB+HGW networking Diagram (voice, Internet access and IPTV
services)
Metro Network
NGN/IMS
IPTV
Headend
Internet
UPE
PE-AGG
Splitter
OLT
ONU
Laptop
PC
TV
STB
Phone
ONU
HGW
LAN
PE-AGG
UPE
HGW
Laptop
PC
TV
STB
Phone
xDSL+
POTS
Splitter
Phone
P
O
T
S
11.3.3.2 Configuration Procedure
Figure 11-8 shows the configuration roadmap diagram in the FTTB+HGW networking
scenarios (ONU providing the VoIP service).
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide 11 FTTB and FTTC Solution Configuration
Issue 01 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
922

Huawei SmartAX MA5608T Specifications

General

Dual Power Supply	Yes
Humidity	5% to 95% (non-condensing)
Uplink Slots	2
Maximum GPON Ports	16
Input Voltage Range	-38.4 V DC to -72 V DC
Device Type	OLT
Power Supply	-48 V DC
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to 70°C
Switching Capacity	128 Gbps
Ports	GPON, XG-PON, 10GE
