Huawei SmartAX MA5608T - Example: Configuring TDM SHDSL for Carrying the PRA Service (Based on the SIP Protocol)

Result
The phone set connected to the PBX can communicate with a phone set in the PSTN network
in the normal state.
Configuration File
interface edt 0/3
board workmode voice
runmode service
set clockmode line 0
shdslport signal 16 CCS
quit
huawei(config)#sigtran
huawei(config-sigtran)#iua-linkset add 1 mgid 0 jointly-work enable trafficmode
override
iid-map 2 pendingtime cs-mode client
huawei(config-sigtran)#iua-link add 15 1 1401 10.13.4.116 1400 10.14.1.2
jointly-work-with primary-mgc priority 3
esl user
mgprauser add 0/3/16 0 0 terminalid 0
quit
save
3.3.12 Example: Configuring TDM SHDSL for Carrying the PRA
Service (Based on the SIP Protocol)
The MA5600T/MA5603T/MA5608T is connected to the PBX in the TDM SHDSL mode and
then connected upstream to the IP network in the GE mode.
Service Requirements
l The PBX is connected to the IP network over a long distance to carry the PRA service.
l The configuration data is transparently transmitted on the MA5600T/MA5603T/
MA5608T.
The following figure shows an example network of TDM SHDSL for carrying the PRA service.

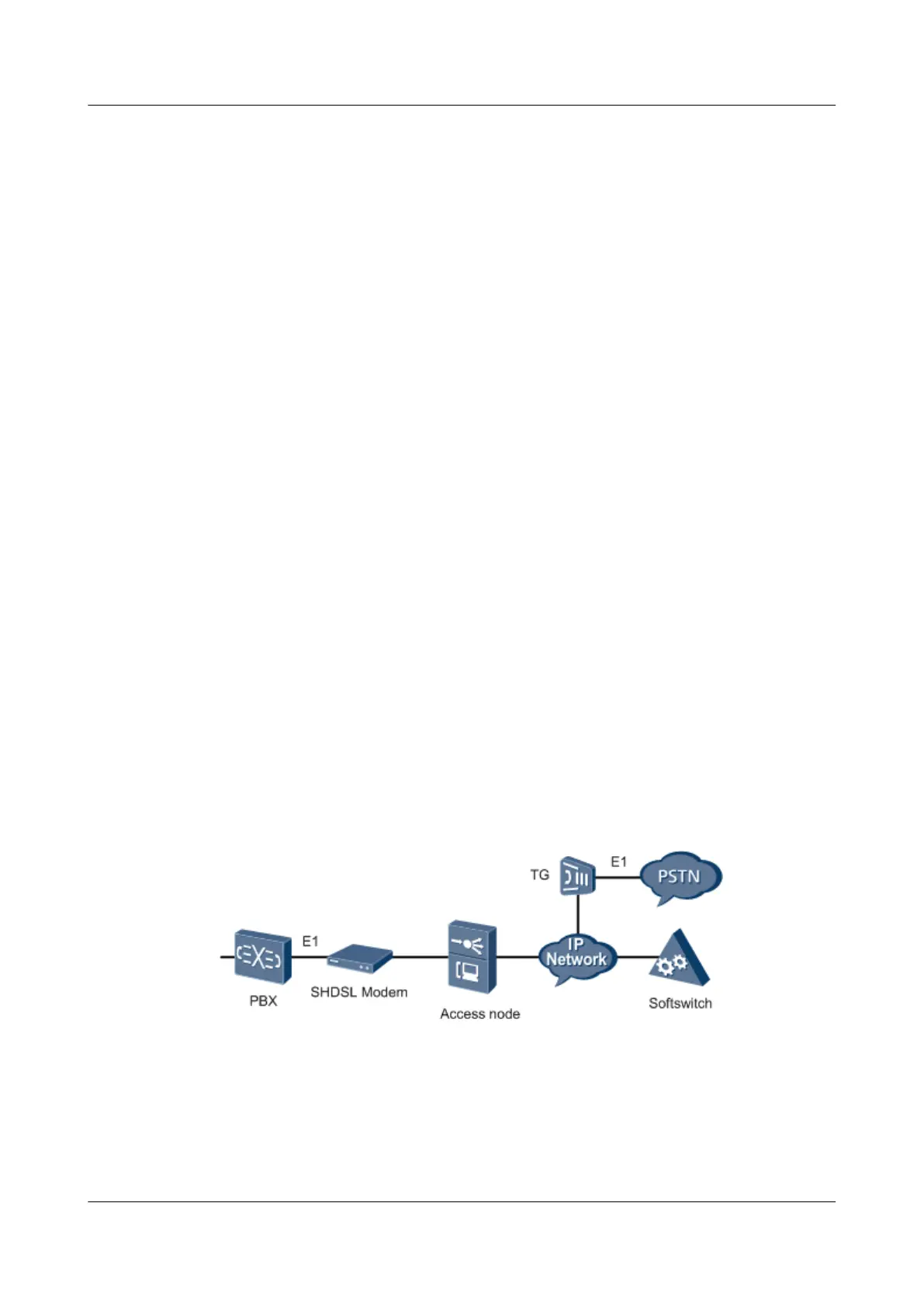

Figure 3-20 Example network of TDM SHDSL for carrying the PRA service
Data Plan
The following table lists the data plan for configuring TDM SHDSL for carrying the PRA
service.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide
3 Configuring the DSLAM Services
