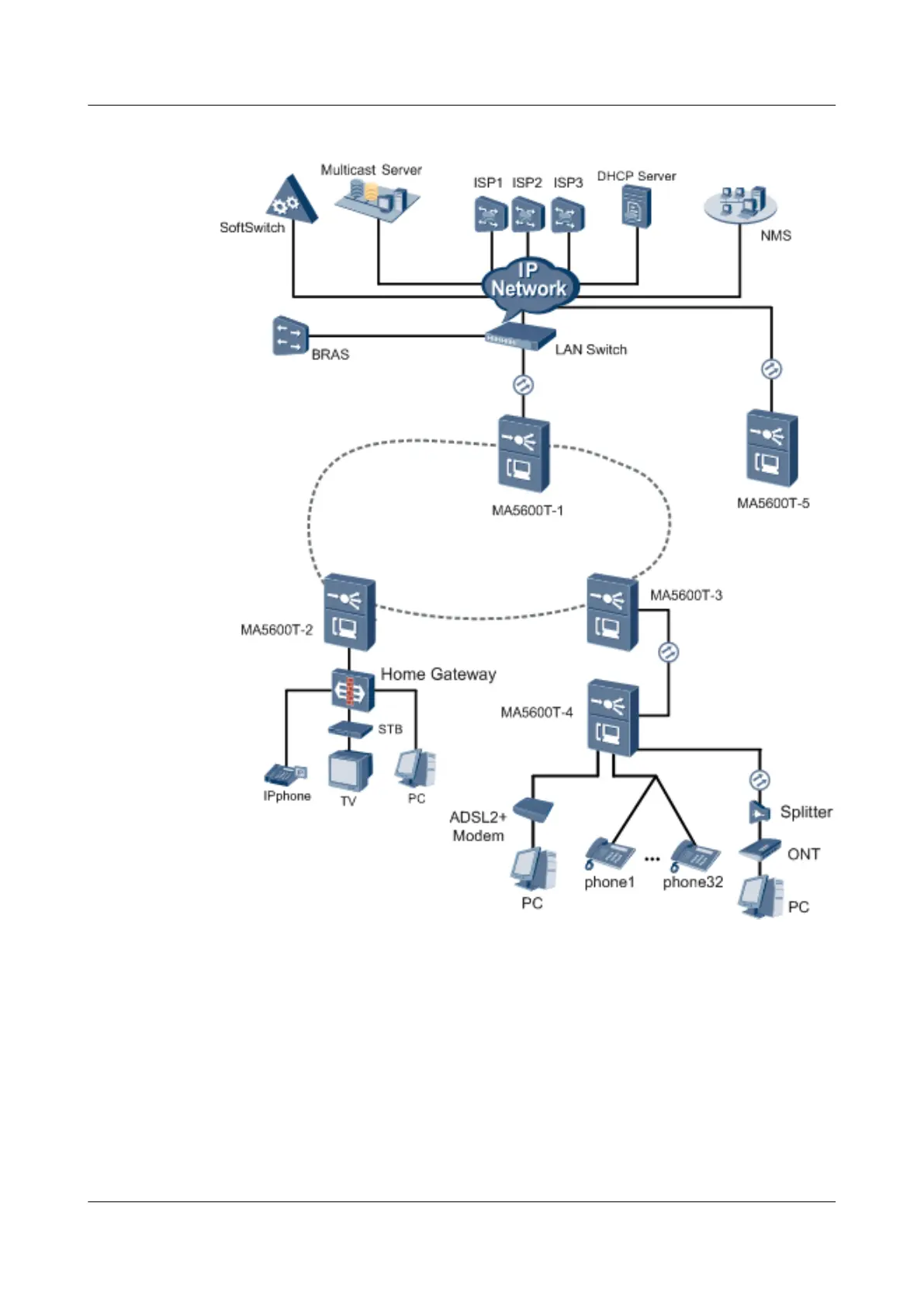

Figure 5-1 Example MSTP network of the MA5600T/MA5603T/MA5608T
5.2 MSTP Dataplan
This topic provides the data plan for the example RSTPMSTP network.
Table 5-1 provides the service and the data plan for the example network of the MA5600T/
MA5603T/MA5608T.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide
5 Configuration Example of MSTP Subtending Network
Issue 01 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
441
