Huawei SmartAX MA5608T User Manual

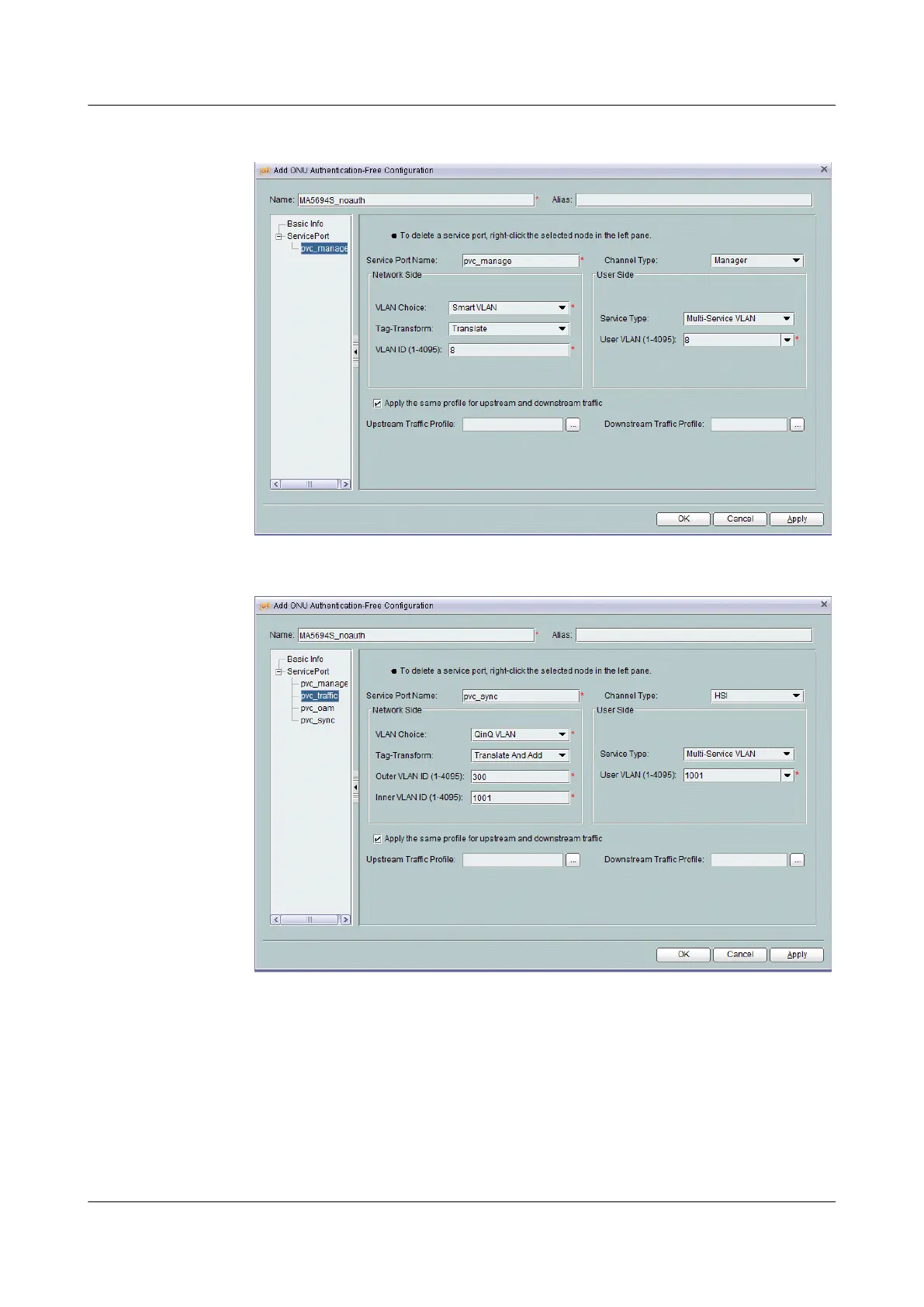

Figure 14-37 Adding a management service flow
ip-traffic-table_6 ip-traffic-table_
Figure 14-38 Adding a voice and data service flow
ip-traffic-table_11 ip-traffic-table_1
Step 2 Associate the ONU authentication-free policy with the OLT.
1. In the authentication-free policy list, select the MDU authentication-free policy and click
the NE Reference tab in the lower pane.
2. On the NE Reference tab, right-click the OLT and choose Associate from the shortcut
menu.
----End
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide
14 FTTM Configuration (Base Station Access)
Issue 01 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
1510

Huawei SmartAX MA5608T Specifications

General

Dual Power Supply	Yes
Humidity	5% to 95% (non-condensing)
Uplink Slots	2
Maximum GPON Ports	16
Input Voltage Range	-38.4 V DC to -72 V DC
Device Type	OLT
Power Supply	-48 V DC
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to 70°C
Switching Capacity	128 Gbps
Ports	GPON, XG-PON, 10GE
