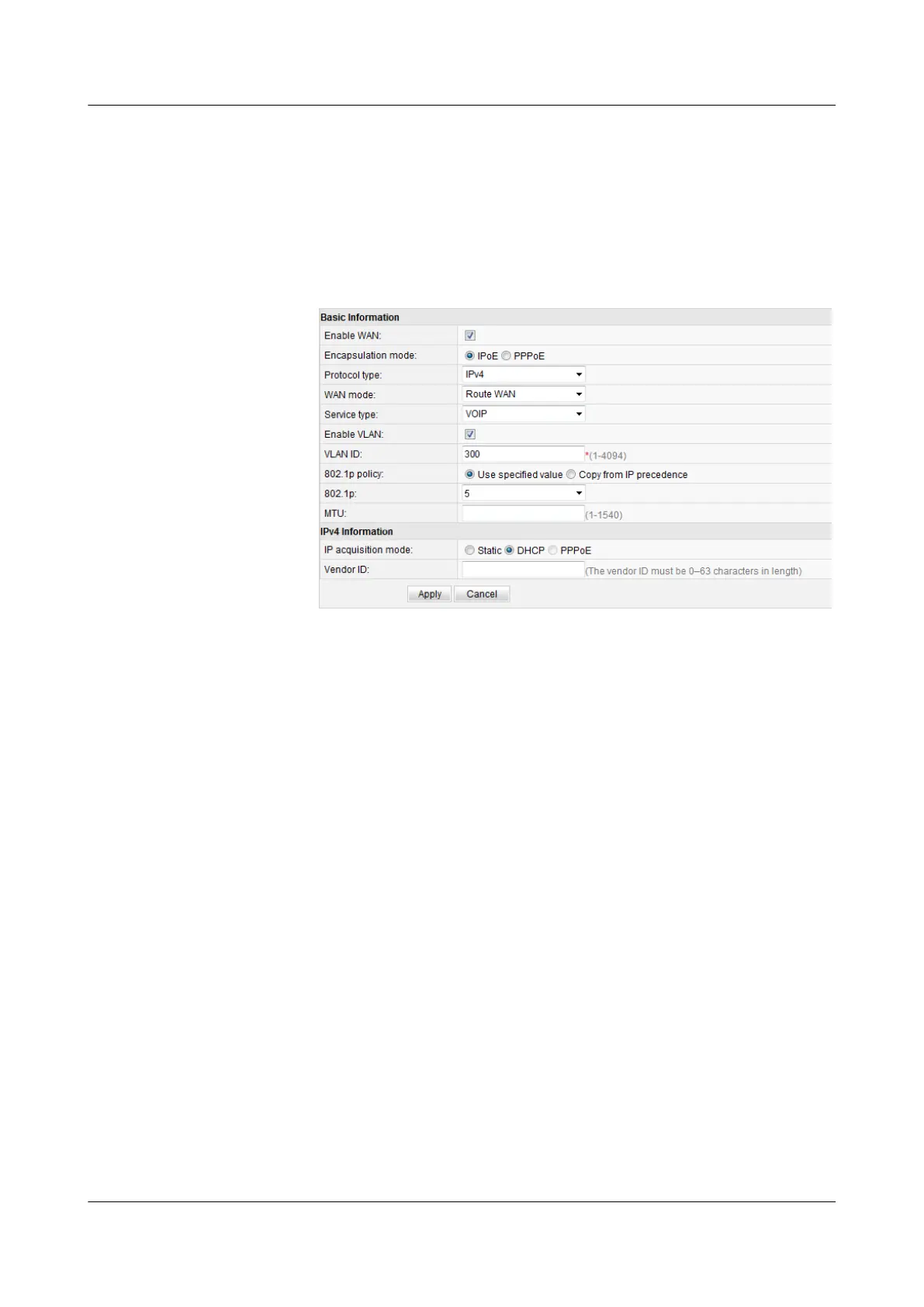

– Service List: VoIP (For configuring the VoIP service, VoIP or a combination
containing VoIP needs to be selected.)
– Mode: Route
– VLAN ID: 300 (The VLAN ID of the ONU must be the same as the user-side
VLAN ID configured on the OLT.)
– 802.1p: 5
– IP Acquisition Mode: DHCP
c. Click Apply to apply the configuration.
3. Configure the parameters of the H.248-based voice interface.
a. In the navigation tree, choose Voice > VoIP Basic Configuration.
b. In the right pane, configure the parameters of the H.248-based voice interface as
follows (other parameters use the default settings):
– Set MGC Address below Primary Server to 200.200.200.200.
– MID Format: DomainName
– MG Domain: 6877687714852901
– Signaling Port: 1_VOIP_R_VID_300
– Region: China
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide 12 FTTO Configuration(SOHO and SME)
Issue 01 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
1201
