Huawei SmartAX MA5608T User Manual

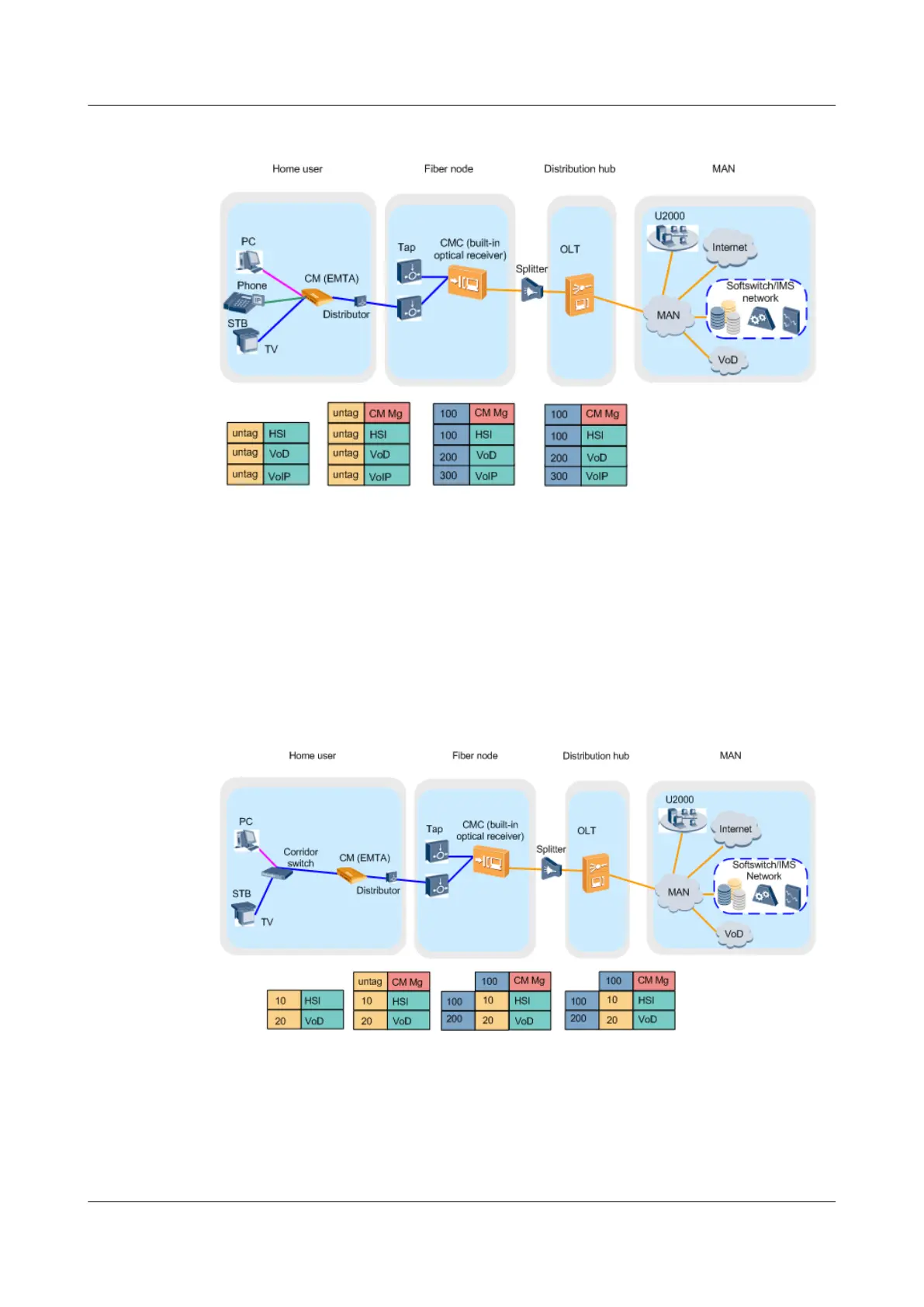

Figure 15-5 Multiple services in multiple VLANs (home access)
In the preceding network, IP addresses are allocated and service flows and VLAN tags are
processed as follows:
1. The PC, STB, and CM use dynamic IP addresses allocated by a DHCP server.
2. All packets sent by the PC and STB are untagged.
3. The CMC adds VLAN tag 100 to the HSI service packets and CM management packets
(CM Mg), adds VLAN tag 200 to the VoD service packets, and adds VLAN tag 300 to the
VoIP service packets.
Figure 15-6 VLAN QinQ (home access)
In the preceding network, IP addresses are allocated and service flows and VLAN tags are
processed as follows:
1. The CM and STB use dynamic IP addresses allocated by a DHCP server. The PC uses
PPPoE dialup.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide
15 OptiCable D-CMTS Configuration (MA5633 Working as
a Remote Extended Frame)
Issue 01 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
1534

Huawei SmartAX MA5608T Specifications

General

Dual Power Supply	Yes
Humidity	5% to 95% (non-condensing)
Uplink Slots	2
Maximum GPON Ports	16
Input Voltage Range	-38.4 V DC to -72 V DC
Device Type	OLT
Power Supply	-48 V DC
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to 70°C
Switching Capacity	128 Gbps
Ports	GPON, XG-PON, 10GE
