Huawei SmartAX MA5608T User Manual

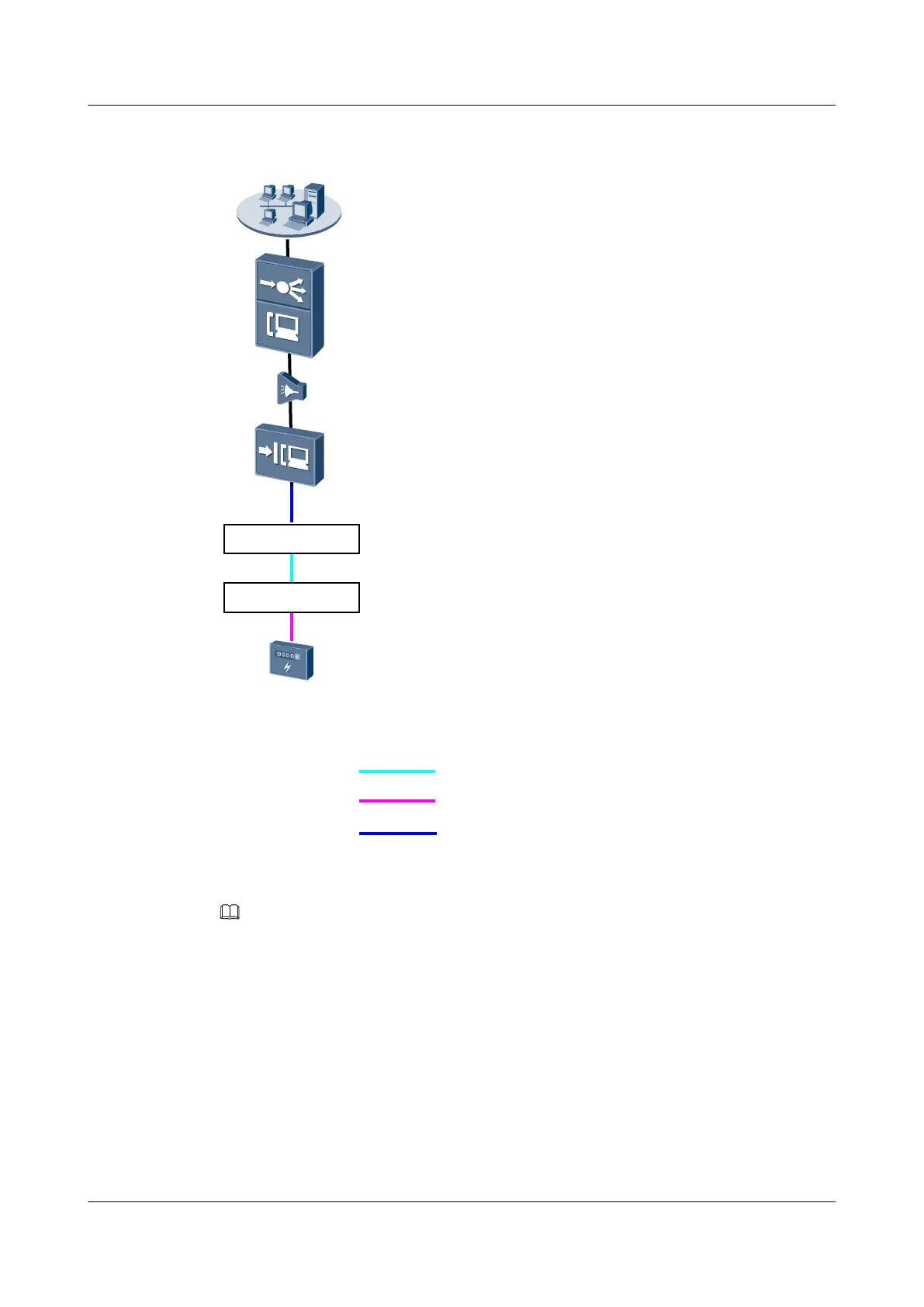

Figure 17-3 Example network for configuring intelligent collection of power consumption
information in the electrical power system over Ethernet
OLT
Splitter
ONU
Smart meter
GE/FE
Master station system
collector
Concentrator
Network cable
Electric cable
Serial port cable
NOTE
In this example, an MA5621 is used as the ONU.
Configuration Flowchart
Figure 17-4 provides the procedure for configuring intelligent collection of power consumption
information in the electrical power system over Ethernet
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide
17 Electrical Service Configuration
Issue 01 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
1806

Huawei SmartAX MA5608T Specifications

General

Dual Power Supply	Yes
Humidity	5% to 95% (non-condensing)
Uplink Slots	2
Maximum GPON Ports	16
Input Voltage Range	-38.4 V DC to -72 V DC
Device Type	OLT
Power Supply	-48 V DC
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to 70°C
Switching Capacity	128 Gbps
Ports	GPON, XG-PON, 10GE
