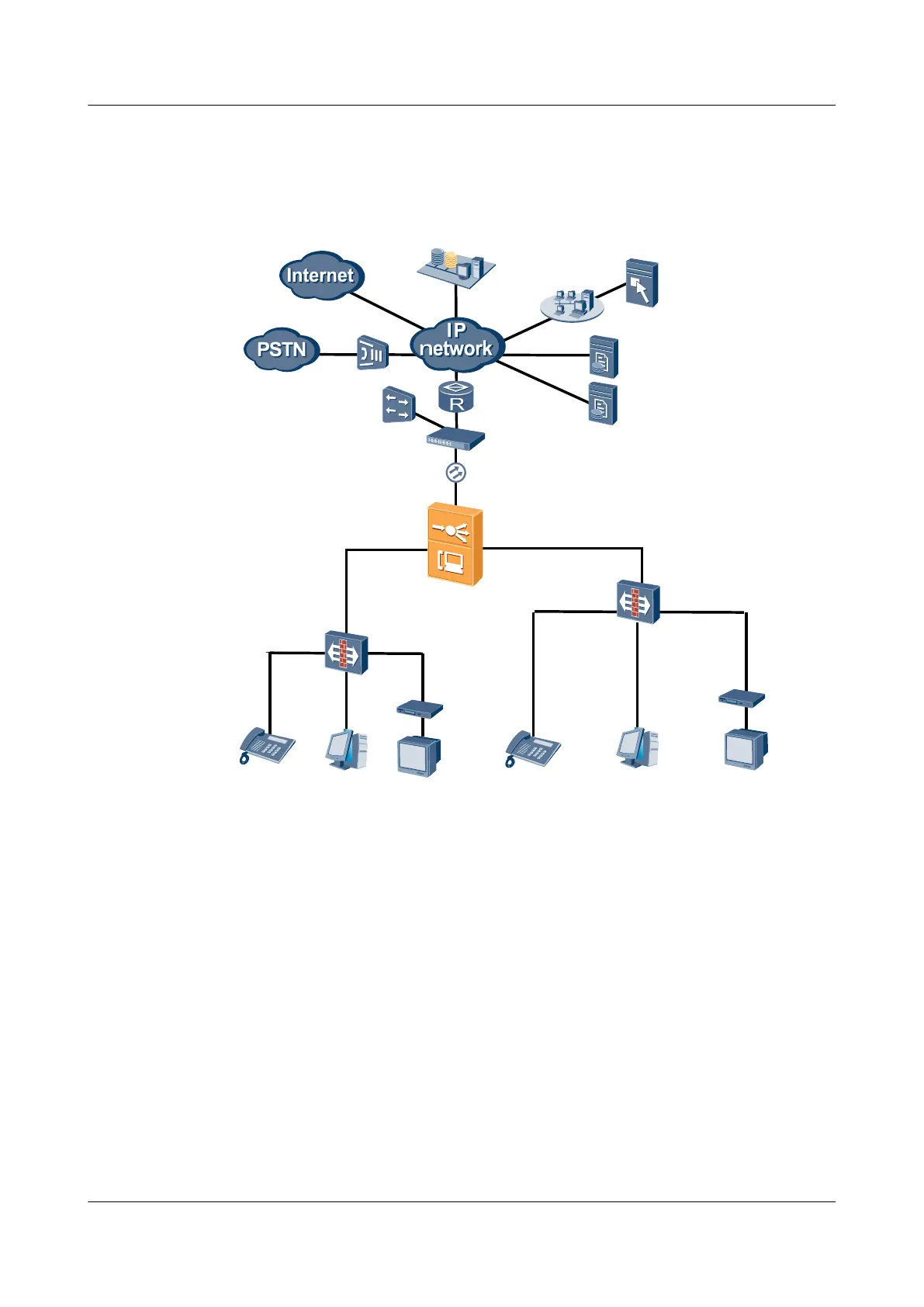

Figure 3-24 Example network of the triple play service in the single-PVC for multiple services
mode
Access node
TVPC
DHCPDHCP PPPoE
TVEphone PC
DHCPDHCP PPPoE
LSW
STB
STB
GW
IPTV DHCP
Server
BMS
OSS & RADIUS Server/RADIUS Proxy
BRAS
VoIP DHCP
Server
Ephone
Muticast source
Router
Home Gateway 2
Home Gateway 1
Program1:224.1.1.1
Program2:224.1.1.2
User 1
User 2
IP1:20.2.2.2
IP2:20.2.2.3
IP1:20.1.1.2
IP2:20.1.1.3
Data Plan
Table 3-18 shows the key data for configuring the triple play in single-PVC for multiple services
mode on the MA5600T/MA5603T/MA5608T.
