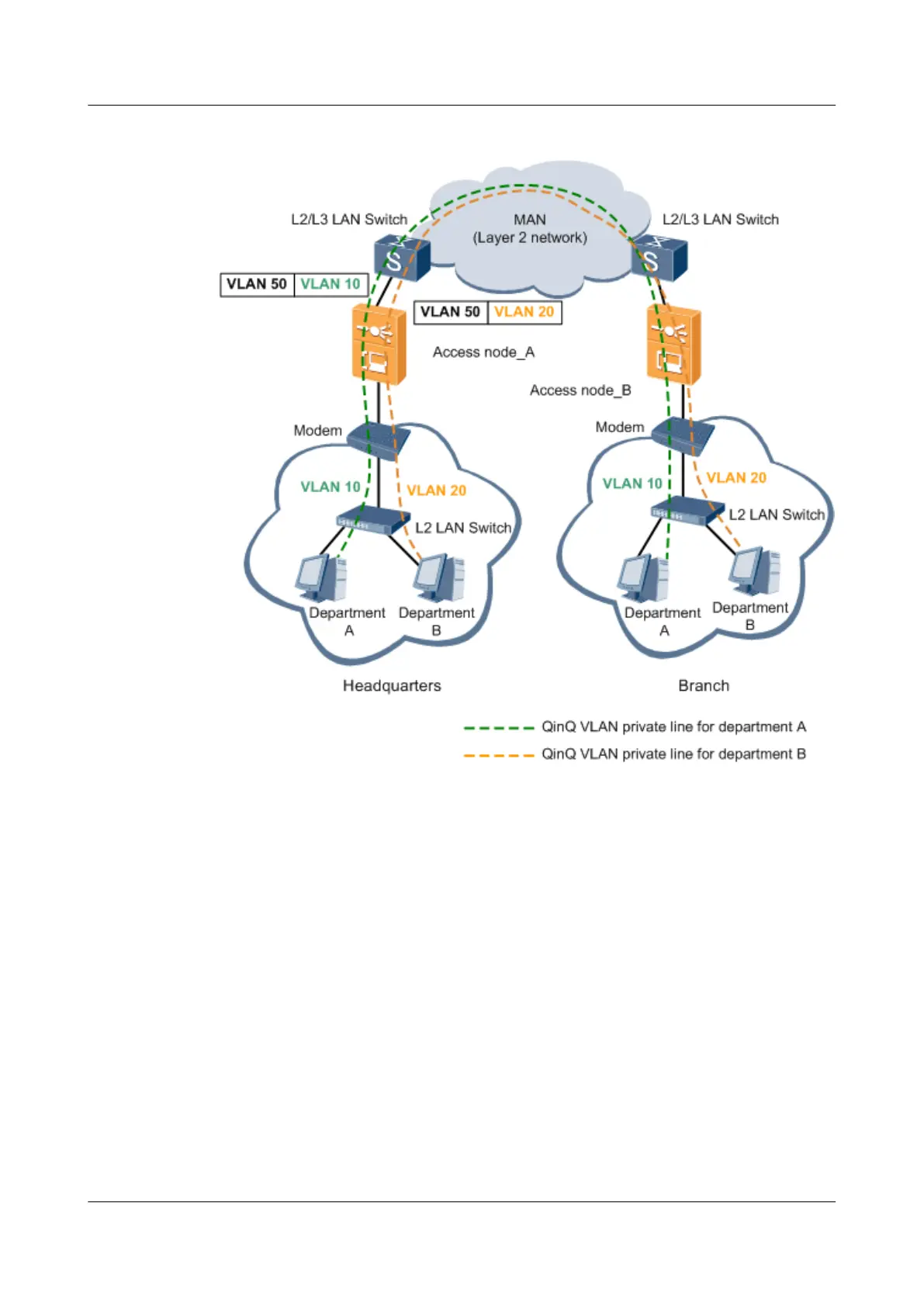

Figure 4-1 Example network for configuring the private line service
The configuration on MA5600T/MA5603T/MA5608T_A is the same as the configuration on
MA5600T/MA5603T/MA5608T_B. The following uses the configuration on MA5600T/
MA5603T/MA5608T_A and VDSL2 access as examples to describe how to configure the
private line service implemented through a QinQ VLAN.
Data Plan
Table 4-1 lists the key data planning of the QinQ VLAN private line service on MA5600T/
MA5603T/MA5608T_A.
