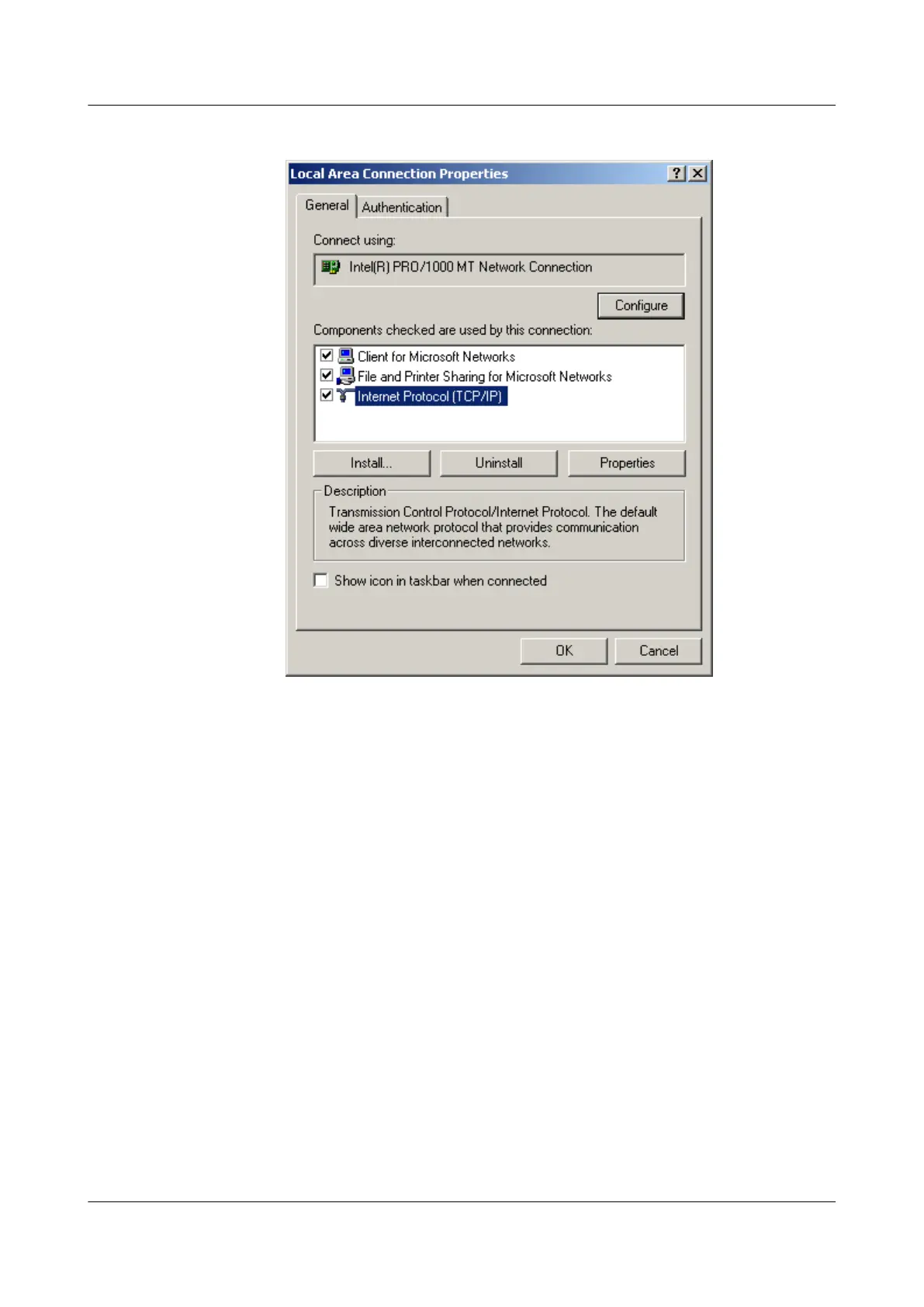

Figure 1-8 Configure the local area connection properties
4. Click Properties to display the Internet Protocol (TCP/IP) Properties dialog box.
5. Click General, and then select Use the following IP address: to configure the IP
address and the subnet mask, as shown in the following figure.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide 1 Commissioning
Issue 01 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
19
