Huawei SmartAX MA5608T User Manual

c. Click Apply.

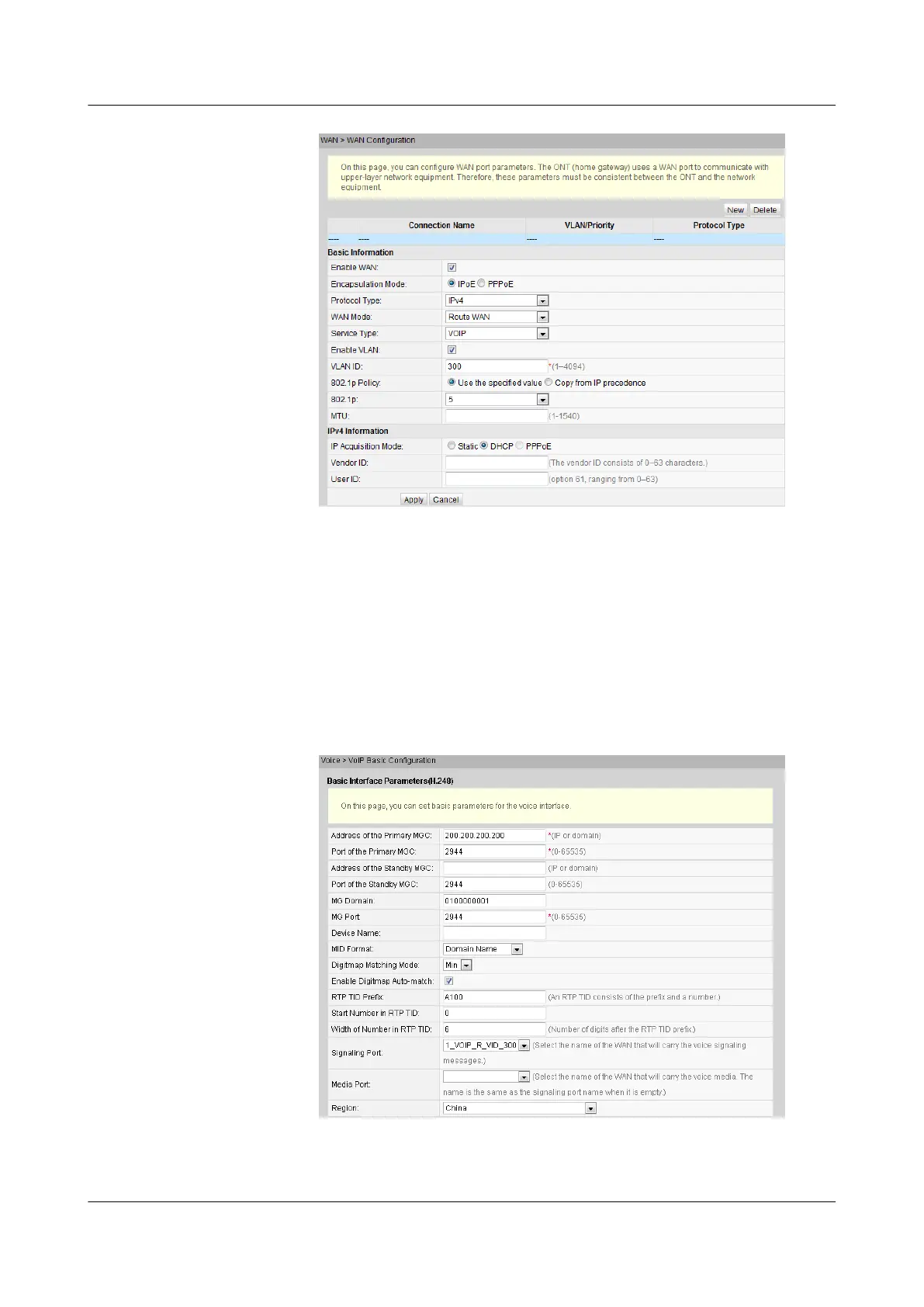

3. Configure parameters for the H.248-based voice interface.
a. Choose Voice > VoIP Basic Configuration.
b. In the Basic Interface Parameters(H.248) window, configure the parameters
as follows:
– Set Address of the Primary MGC to 200.200.200.200.
– Set MID Format to Domain Name and MG Domain to 0100000001.
– Set Signaling Port to 1_VOIP_R_VID_300.
– Set Region to China.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide 9 FTTH Configuration
Issue 01 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
591

Huawei SmartAX MA5608T Specifications

General

Dual Power Supply	Yes
Humidity	5% to 95% (non-condensing)
Uplink Slots	2
Maximum GPON Ports	16
Input Voltage Range	-38.4 V DC to -72 V DC
Device Type	OLT
Power Supply	-48 V DC
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to 70°C
Switching Capacity	128 Gbps
Ports	GPON, XG-PON, 10GE
