h. Click Next.

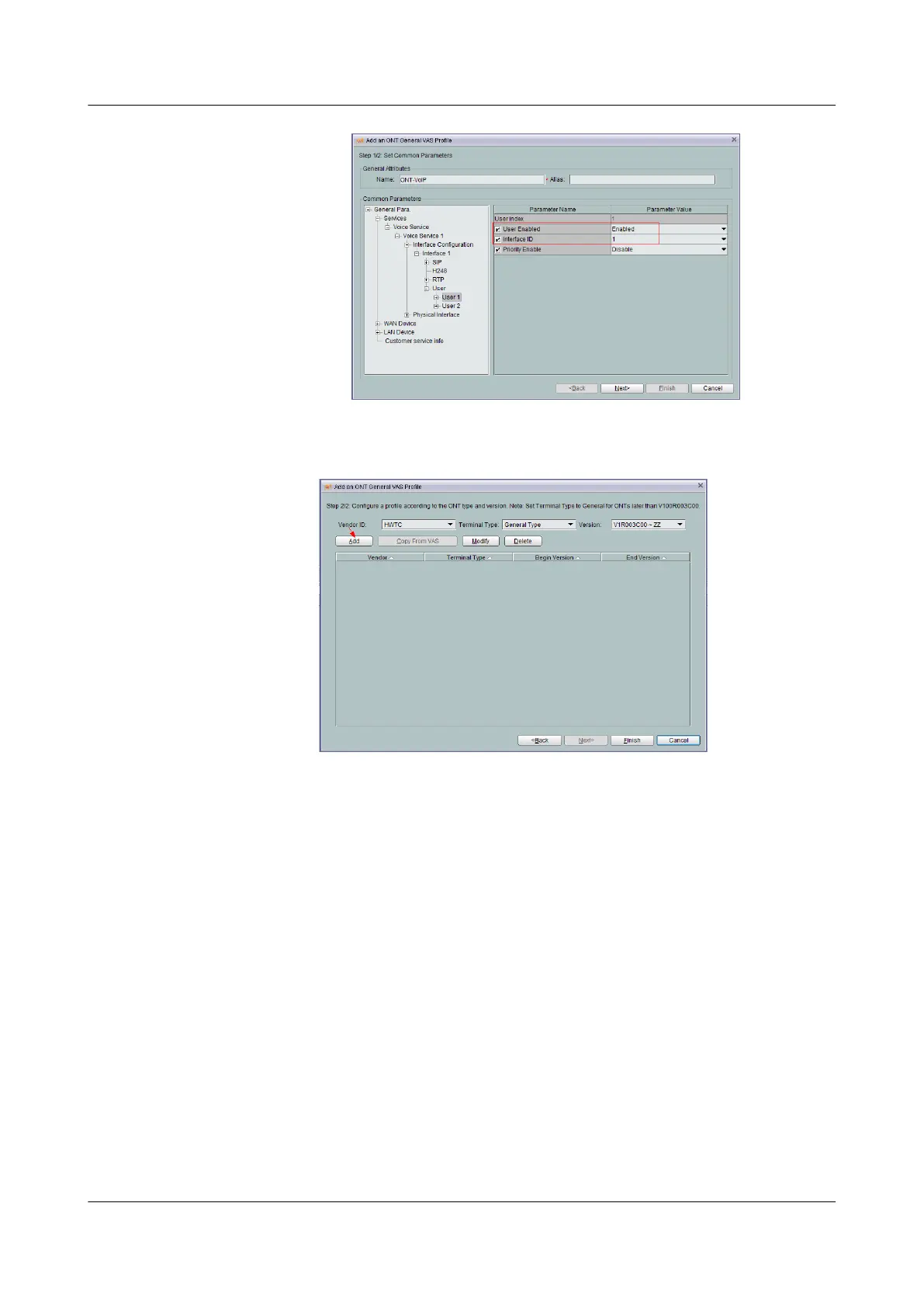

i. In the dialog box that is displayed, set vendor ID to HWTC, Terminal Type to
General Type, and Version to V1R003C00-ZZ, click Add.
j. In the dialog box that is displayed, set the parameters.
– Choose General Type Config Info > Services > Voice Service > Voice
Service 1 > Interface Configuration > Interface 1 from the navigation tree,
and set Region to China.
– Choose General Type Config Info > WAN Device > WAN Device 1 >
WAN Connection > WAN Connection 1 > WAN IP Interface > WAN IP
Interface 1 from the navigation tree, and set WAN Interface Name to ONT-
VoIP, Service Type to VOIP.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide 9 FTTH Configuration
Issue 01 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
596
