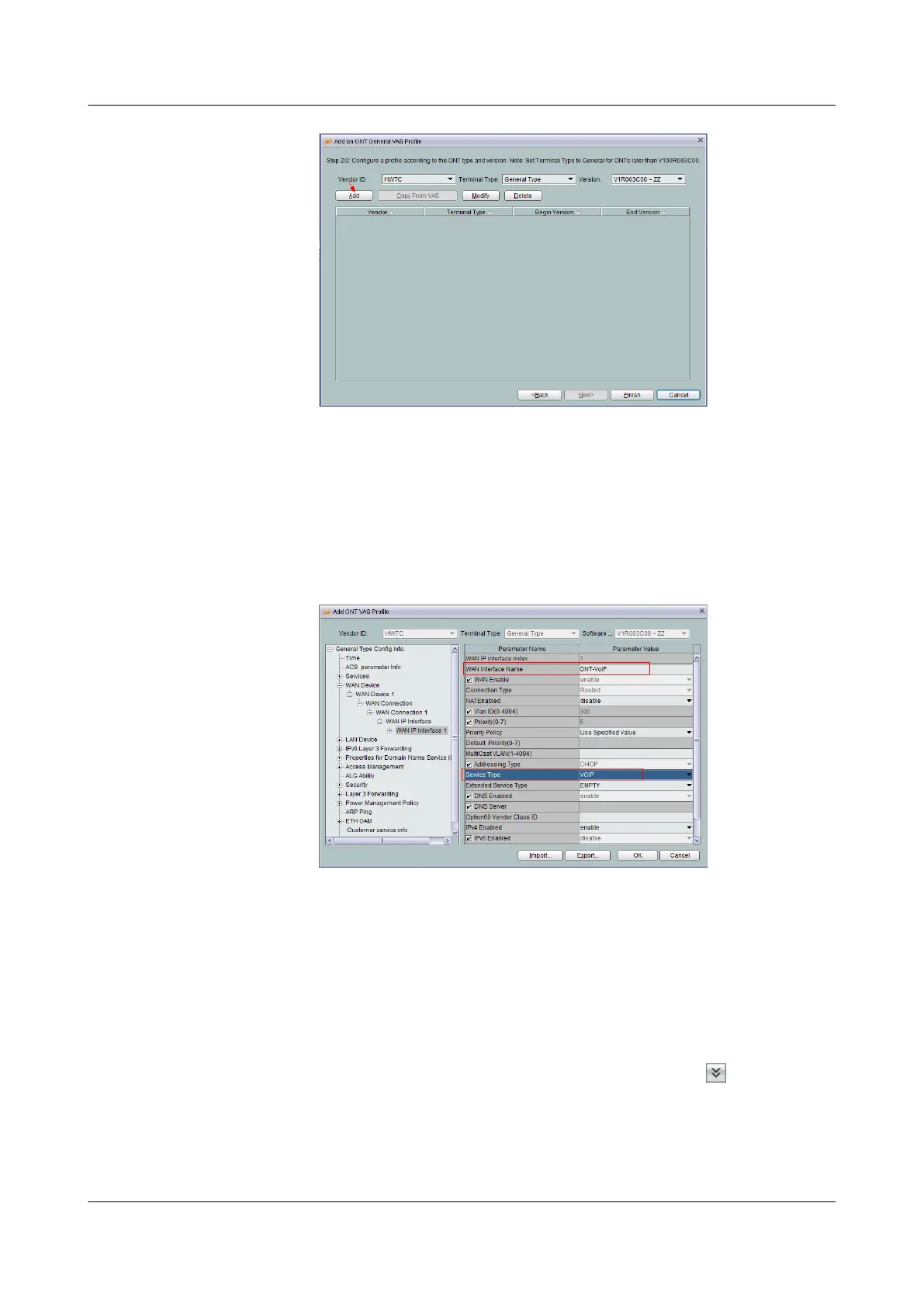

j. In the dialog box that is displayed, set the parameters.
– Choose General Type Config Info > Services > Voice Service > Voice
Service 1 > Interface Configuration > Interface 1 from the navigation tree,
and set Region to China.
– Choose General Type Config Info > WAN Device > WAN Device 1 >
WAN Connection > WAN Connection 1 > WAN IP Interface > WAN IP
Interface 1 from the navigation tree, and set WAN Interface Name to ONT-
VoIP, Service Type to VOIP.
k. Click OK.
2. Bind a general VAS profile.
a. In the Main Topology, double-click the required OLT in the Physical Root
navigation tree; or right-click the required OLT and choose NE Explorer from
the shortcut menu.
b. Choose GPON > GPON Management from the navigation tree.
c. In the window on the right, choose GPON ONU.
d. On the GPON ONU tab page, set the filter criteria or click
to display the
GPON ONUs.
e. Select an ONT from the list, right-click, and choose Bind General VAS
Profile from the shortcut menu. In the dialog box that is displayed, select the
created profile, and click OK to complete profile binding.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide
9 FTTH Configuration
Issue 01 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
610
