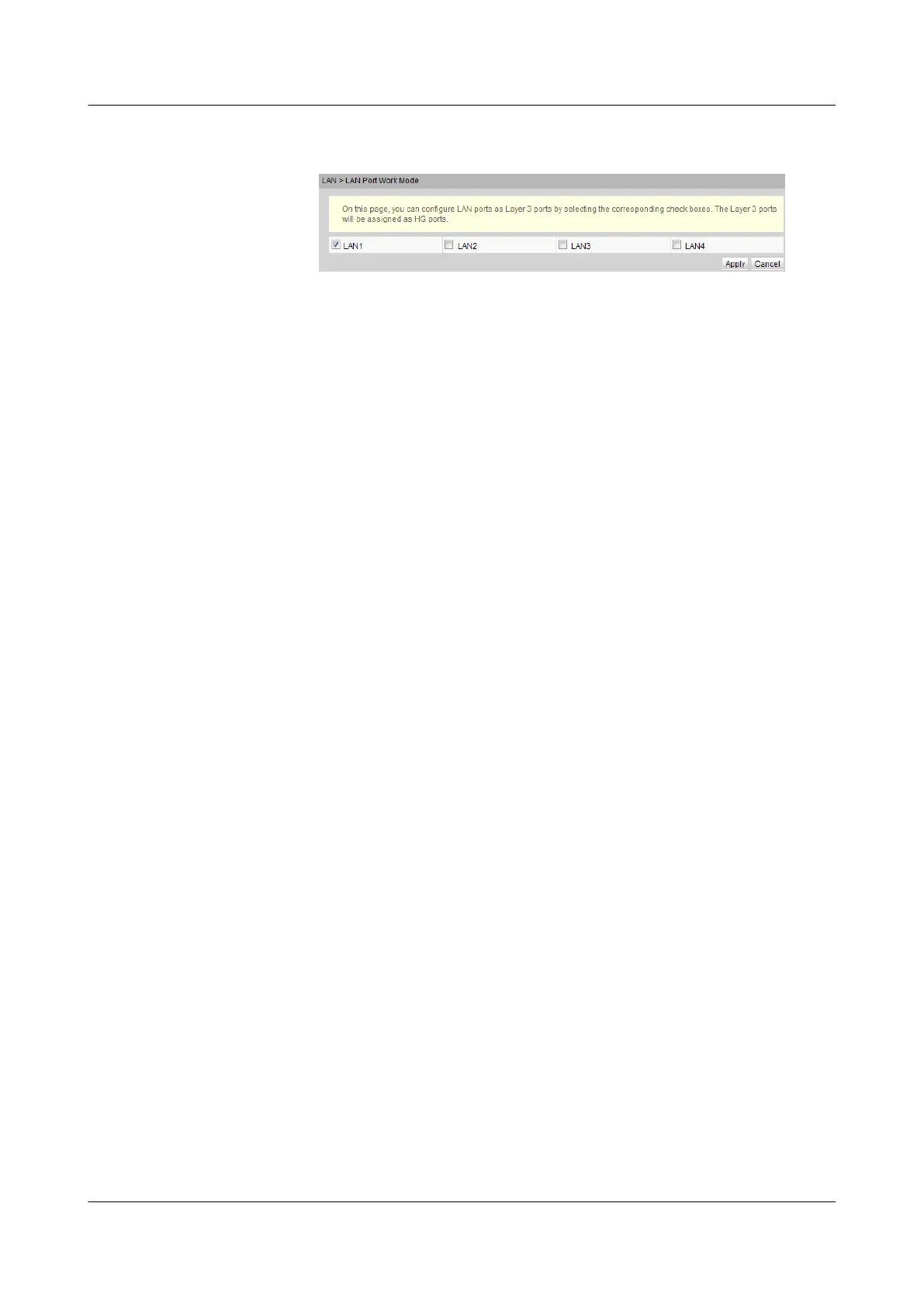

a. In the navigation tree, choose LAN > LAN Port Work Mode. Select the check
box of LAN 1 and set LAN1 to work in the Layer 3 mode.
b. Click Apply.
2. Configure parameters of a WAN port.
a. In the navigation tree, choose WAN > WAN Configuration.
b. In the right pane, click New. In the dialog box that is displayed, configure
parameters of a WAN port as follows:
Select Enable WAN Connection to enable the new WAN connection.
Set Encapsulation mode to PPPoE.
Set Mode to Route WAN.
Set Service List to INTERNET. (For configuring the Internet access service,
INTERNET or a combination containing INTERNET needs to be selected.)
Select Enable VLAN.
Set VLAN ID to 1001. (The VLAN ID of the ONT must be the same as the
user-side VLAN ID configured on the OLT.)
Set 802.1p to 0.
Set User Name to iadtest@pppoe and Password to iadtest. (The user name
and password must be the same as the user name and password configured
on the BRAS.)
Select the check box next to LAN1 in the Binding options area, indicating
that the WAN port is bound to LAN1.
Set IP Acquisition Mode to PPPoE.
Select Enable NAT to enable the NAT function. (NAT must be enabled to
configure the Internet access service.)
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide 9 FTTH Configuration
Issue 01 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
665
