4. Operation
4.2 Operation in Positioner Mode
4-90 ME0342-4B
[2] Features of LS Signals (LS0 to 2)
The LS* signals are not complete signals for positioning commands such as those for other PIO
patterns. Just as it does in detection with a sensor, the applicable LS* Signal should turn ON
once the actuator gets in the range of the setting values regardless of the indicated position
number.

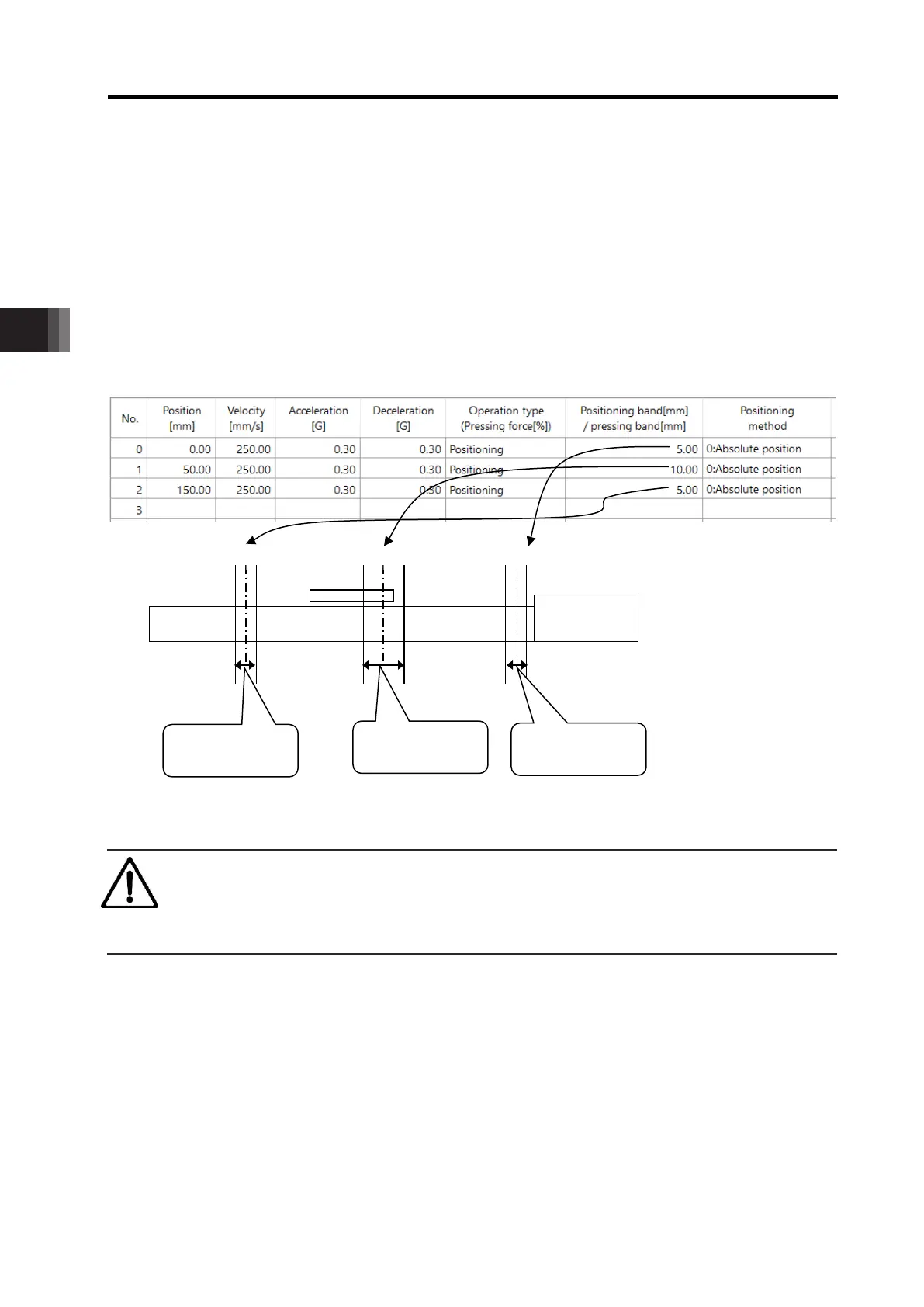

(Example) The figure below shows the position table and the position at which each of the LS
signals is turned ON. It turns ON if the actuator is in the set range even when in
operation to another position number or with the actuator in a manual operation by
hand while the servo is OFF.
Caution
LS* signal would not be output if the positioning width is set less than the minimum
resolution.
Home=0mm
70mm
150mm
LS0 is ON
5mm
LS1 is ON
70±10mm
LS2 is ON
150±5mm
