4. Operation
4.5 Absolute Reset
4-130 ME0342-4B
4.5.1 How to Perform Absolute Reset
The absolute reset is performed by using a teaching tool such as PC software or PIO.
Each of the absolute reset procedures is described below.
[1] Absolute Reset Procedure from Teaching Tool
1) Connect the controller with the actuator. Refer to [3.1.3 [2]]
2) For simple absolute type, connect the absolute battery (Enclosed battery if starting up for the
first time, new battery if replacing) to the absolute battery connecting connector on the front
panel of the controller. Refer to [3.1.3 [3]]
3) Connect the teaching tool and turn ON the power of the controller.
4) The absolute encoder error appears on the teaching tool. Perform alarm reset. If the
condition is in an emergency stop state, release the stop.
5) Perform home-return operation. Once the home return is complete, the point of origin is
memorized at the same time the origin point is established.
In below explains the procedure using each teaching tool:

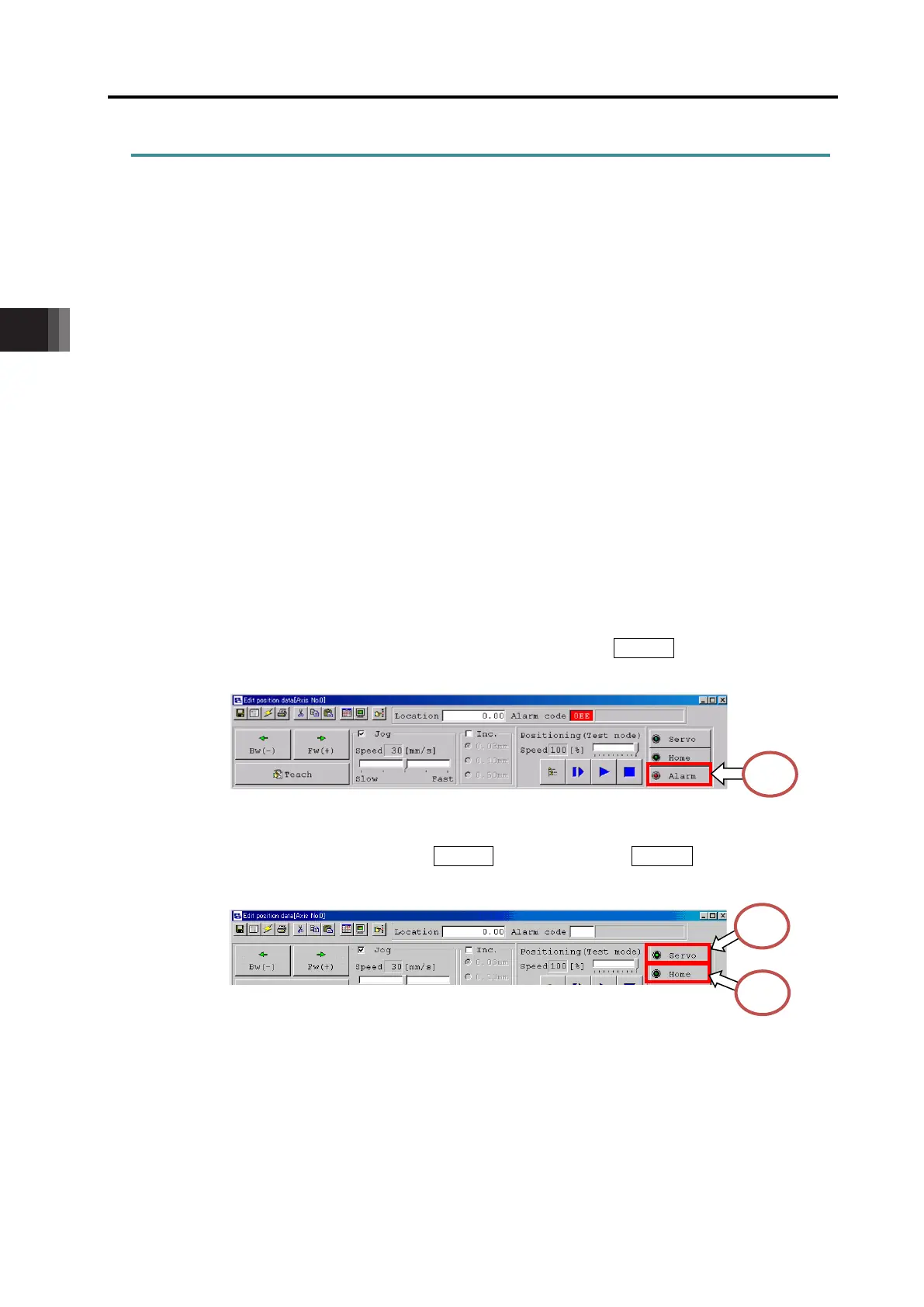

[For PC software (RCM-101-*-*)]
Select the position data from the main screen and press the Alarm button.
After turning the servo ON with the Servo button, press the Home button.
Push
Push
Push
To Next Page
