IAI PCON-CB series User Manual

2. Specications
2.1 Product Check
2-2 ME0342-4B
2.1.2 Teaching Tool
Refer to the following instruction manuals for how to operate a PC software and a teaching
pendant. The instruction manual (first step guide) for IA-OS an introduction booklet for the way
to install and launch. For how to operate, follow the instructions in a window on IA-OS or help
guidances.
Part Name Model
Instruction Manual
PC software
IA-OS ME0391
RCM-101-* ME0155
Teaching pendant
TB-01(D/DR)
(Note 1)
ME0324
TB-02(D)
ME0355
TB-03
ME0376
Note 1 PCON-CBP/CGBP types should not be available.
Instruction Manual is available for download in our website.
The latest version of IA-OS (update) is available to download in our website.
2.1 Product Check
ME0342-4B 2-3
2.1.3 How to Read the Model Plate

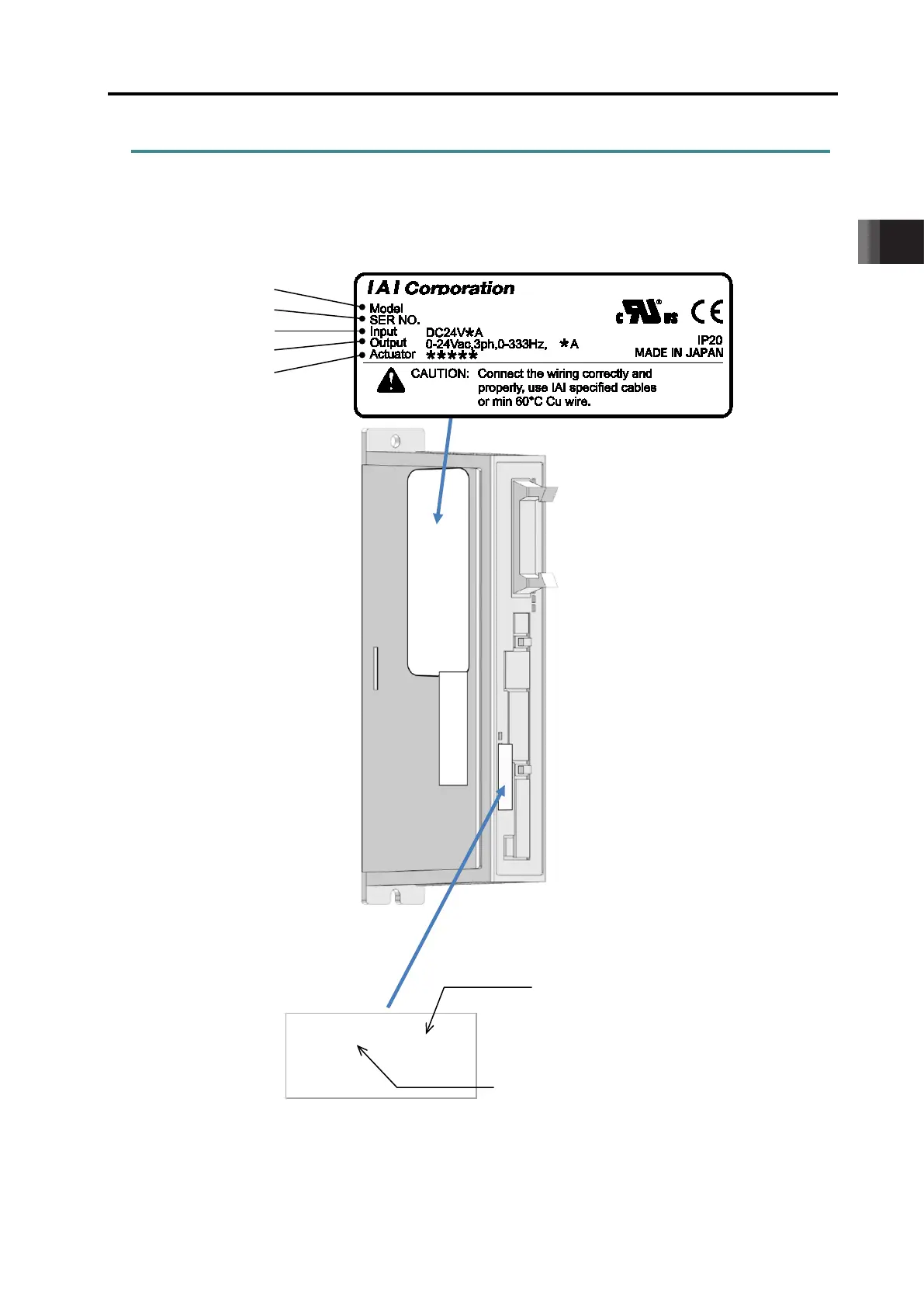

The places to attach the model code plates on this product and how to read them are as shown
below.
SN: B00000000
PCON-CB-42PWAI-NP-0-0
L=12
ST=200
RCP6-SA6C
Type
1) CB/CGB
(Standard type)
2) CFB/CGFB (High-thrust actuator connection type)
3) CBP/CGBP (Dedicated for pulse pressing)
Serial number
1) NP/PN (Dedicated for positioner operation)
2) PLN/PLP
(Select from positioner and pulse train)
3) Others (Dedicated for field network control)
C
ontroller model
Serial number
I
nput Power
O
utput Power
Actuator
model
