2. Specications
2.4 External View ························································ 2-13
2.4.1 CB/CBP Type…For Battery-less Absolute/Incremental
Screw-fixed Type ···················································· 2-13
2.4.2 CB/CBP Type…For Battery-less Absolute/Incremental
DIN rail-fixed Type ·················································· 2-14
2.4.3 CB TypeSimple Absolute Screw-fixed Type ··············· 2-15
2.4.4 CB TypeFor Simple Absolute DIN rail-fixed Type ········ 2-16
2.4.5 CFB TypeFor Incremental Screw-fixed Type ·············· 2-17
2.4.6 CFB TypeFor Incremental DIN rail-fixed Type ············ 2-18
2.4.7 Absolute Battery Unit (Option for Simple Absolute Type) ·· 2-19
2.5 I/O Specifications ··················································· 2-20
2.5.1 PIO Input and Output Interface ·································· 2-20
2.5.2 Pulse Train Input Output Interface ······························ 2-21
2.6 Options ································································ 2-22
2.6.1 Pulse Converter (Model: AK-04)································· 2-22
2.6.2 Absolute BatteryAbsolute Battery Unit ······················ 2-23
2.6.3 Loadcell ································································ 2-24
2.7 Installation and Storage Environment ························· 2-26
2.7.1 Installation Environment ··········································· 2-26
2.7.2 Storage and Preservation Environment ······················· 2-26
2.8 Noise Elimination and Mounting Method ····················· 2-27
2.8.1 Noise Elimination ···················································· 2-27
2.8.2 Installation and Mounting ·········································· 2-28

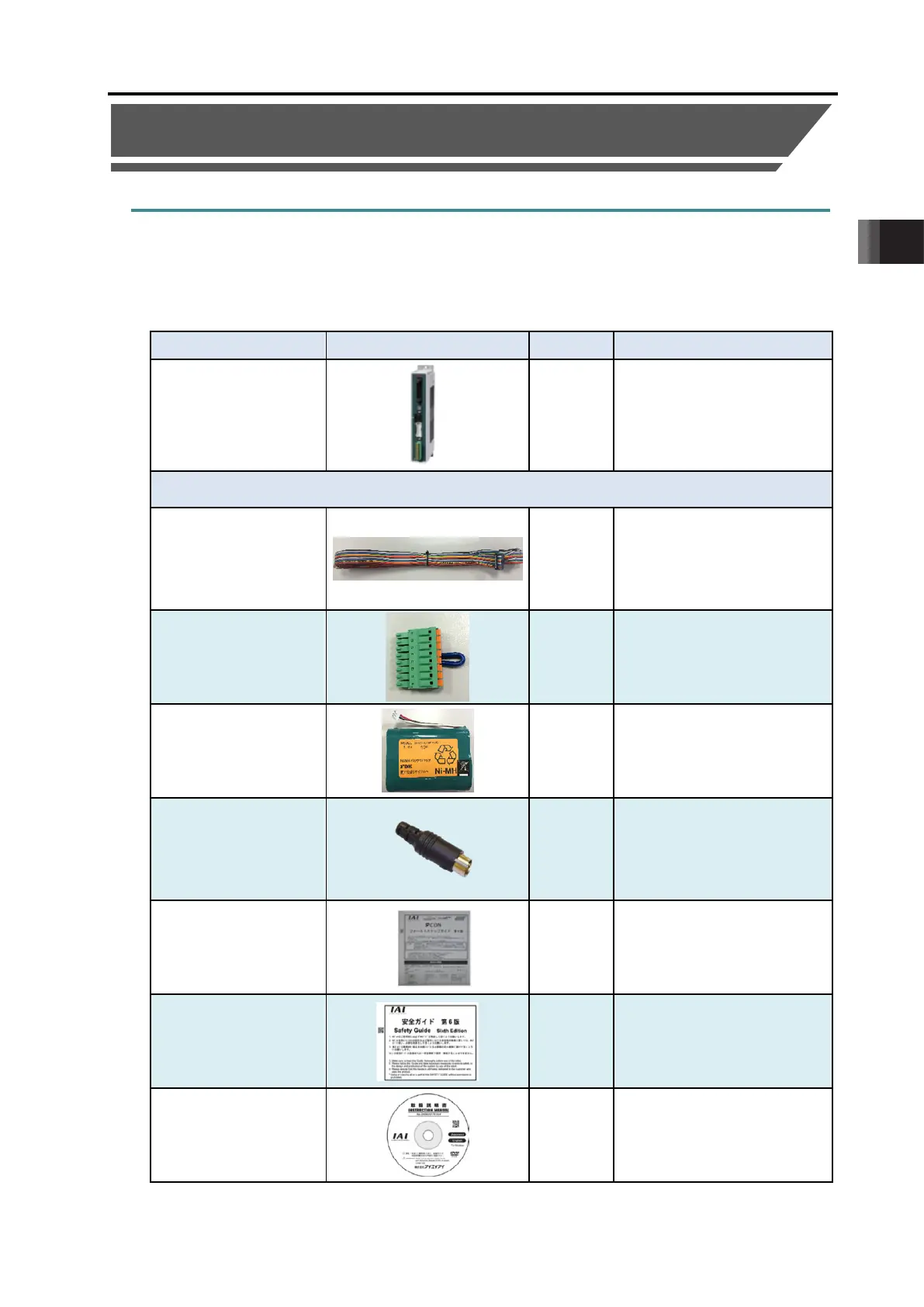

2.1 Product Check
ME0342-4B 2-1
2.1 Product Check
2.1.1 Parts
Shown in the table below are the product structures in the standard types.
Check the accessories in the packaging details. If you find any fault in the contained model or
any missing parts, contact us or our distributor.
Part Name
Shape
Quantity
Remarks
Controller
1
Model code should be
described in [2.1.4 How to
Read the Model]
Accessories
I/O Flat Cable
Cable model :
CB-PAC-PIO□□□
(Example)
□□□ : 020 = 2 [m]
* It is not enclosed for the field
network type.
Power Connector
1
Single product model number:
FMC1.5/8-ST-3.5
(Phoenix Contact)
Absolute Battery
(Option)
1
Used for simple absolute type
Model : AB-7 or SEP-ABU
Dummy Plug
1
Single product model
number : DP-5
(Supplied with PCON-
CGB/CGFB/CGPB
specification)
First Step Guide
1
Shown in the figure is an
image.
Safety Guide
1
Shown in the figure is an
image.
Instruction Manual
(DVD)
1
Shown in the figure is an
image.
