2. Specications
2.6 Options
2-22 ME0342-4B
2.6 Options
2.6.1 Pulse Converter (Model: AK-04)
The pulse converter converts command pulses in the open collector mode to those in the
differential mode.
Use this converter if the host controller sends output pulses in the open collector mode.
Item Specification
Input Power Supply
24V DC ±10% (MAX. 50mA)
Input Pulse Open collector (Collector current MAX. 12mA)
Input Frequency 200kpps or less
Output Pulse Differential output equivalent to 26C31 (MAX. 10mA)
Mass 10g or less (excluding cable connector)
Accessories
37104-3122-000FL (e-CON Connector) 2 Units
Cover Color : YW
Applicable wire AWG No.24 to 26 (Less than 0.14 to
0.3mm
2
, finished O.D. φ1.0 to 1.2mm)
Caution
● Use the pulse converter in the surrounding temperature range between 0°C and 40°C.
● The temperature increase of about 30°C occurs during operation. Accordingly, neither
install several pulse converters in close contact nor install them within a duct. Do not
install the pulse converter near other heating devices.
● If more than one pulse converter are installed, set a pulse converter apart from another
by 10mm or more.
● The device is not available for connection to a PNP pulse train type (Model Code: PLP)
controller.
2.6 Options
ME0342-4B 2-23

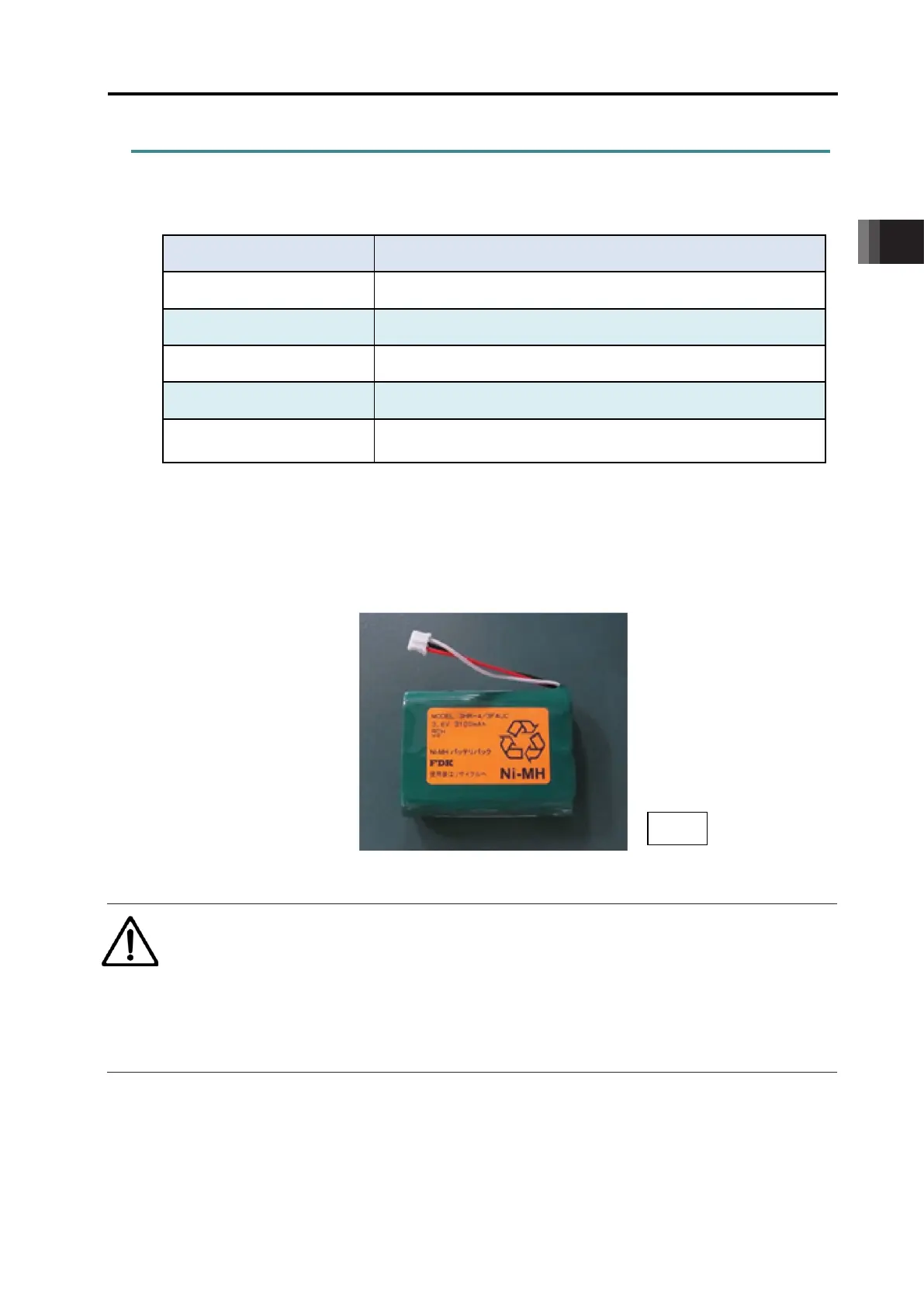

2.6.2 Absolute Battery • Absolute Battery Unit
Shown below is the specifications of the absolute battery used for the simple absolute type
controller.
Item Specifications
Model AB-7 (For absolute battery unit *: SEP-ABU)
Battery voltage 3.6V
Current capacity 3,300mAh
Mass 173g
Reference for battery
replacing timing
Approx. 3 years
* A dedicated cable should be used when the absolute battery unit is to be connected to a
controller (cable model code: CB-APSEP-AB005).
Refer to [2.4.7 Absolute Battery Unit (Option for Simple Absolute Type)] for the external
view of the absolute battery unit.
Caution
● Please have the battery charged for more than 72 hours before using for the first time
or after replacing with a new one. The battery gets charged while the controller is
supplied with 24V power.
● It is possible to retain the encoder data for the duration shown below for each hour of
battery charge.
AB-7
