9. Appendix

9.2 Conformity to Safety Category

9-18 ME0342-4B

9.2.4 TP Adapter and Accessories

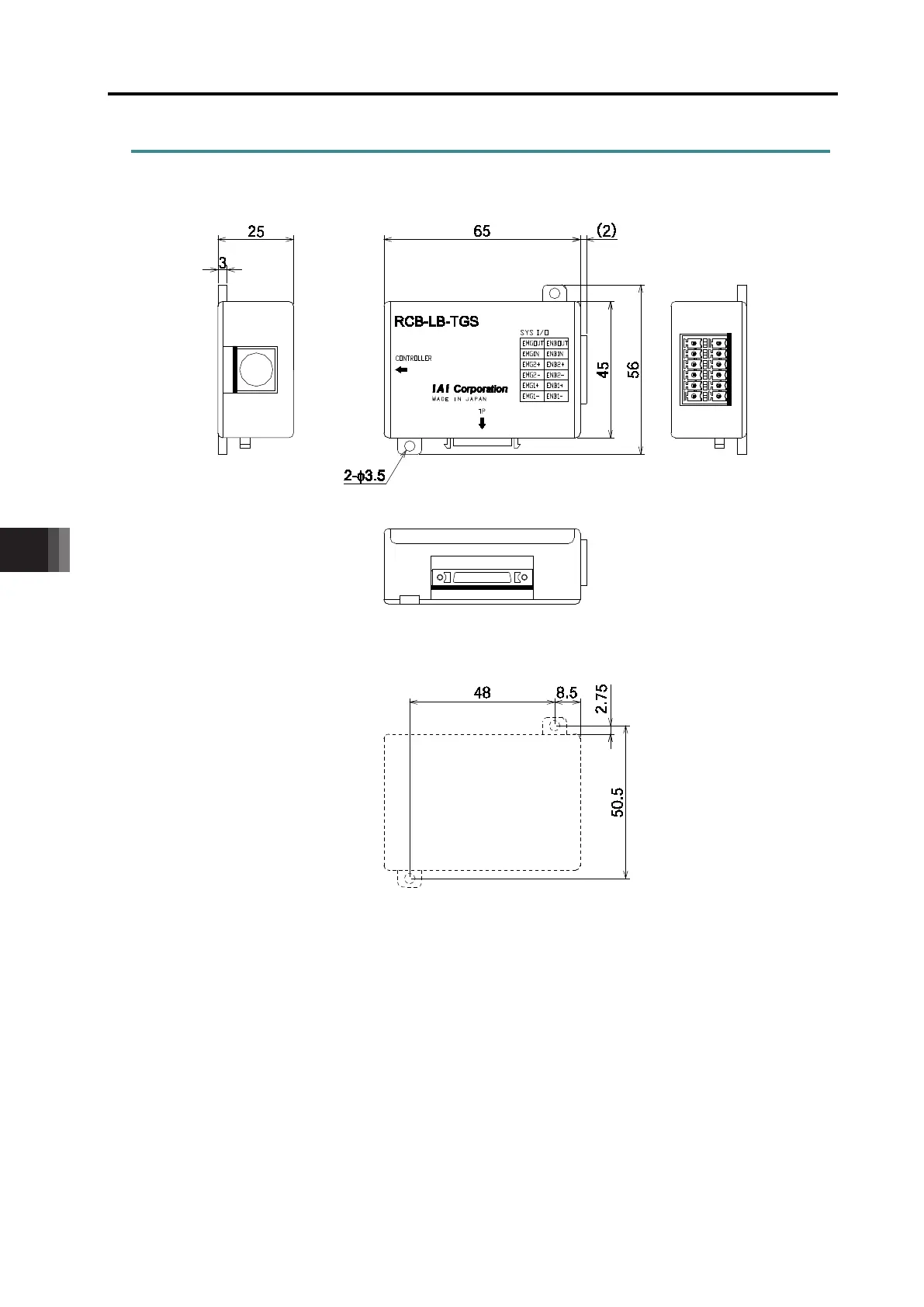

[1] TP adapter external dimensions
