9. Appendix
9.2 Conformi
ty to Saf
ety Category
9-
18
ME0342-4B
9.2.4
TP Adapter
and Accessories
[1]
TP
adapter external dimensions
9.2 Conformi
ty to Saf
ety Category
ME0342-4B
9-
19

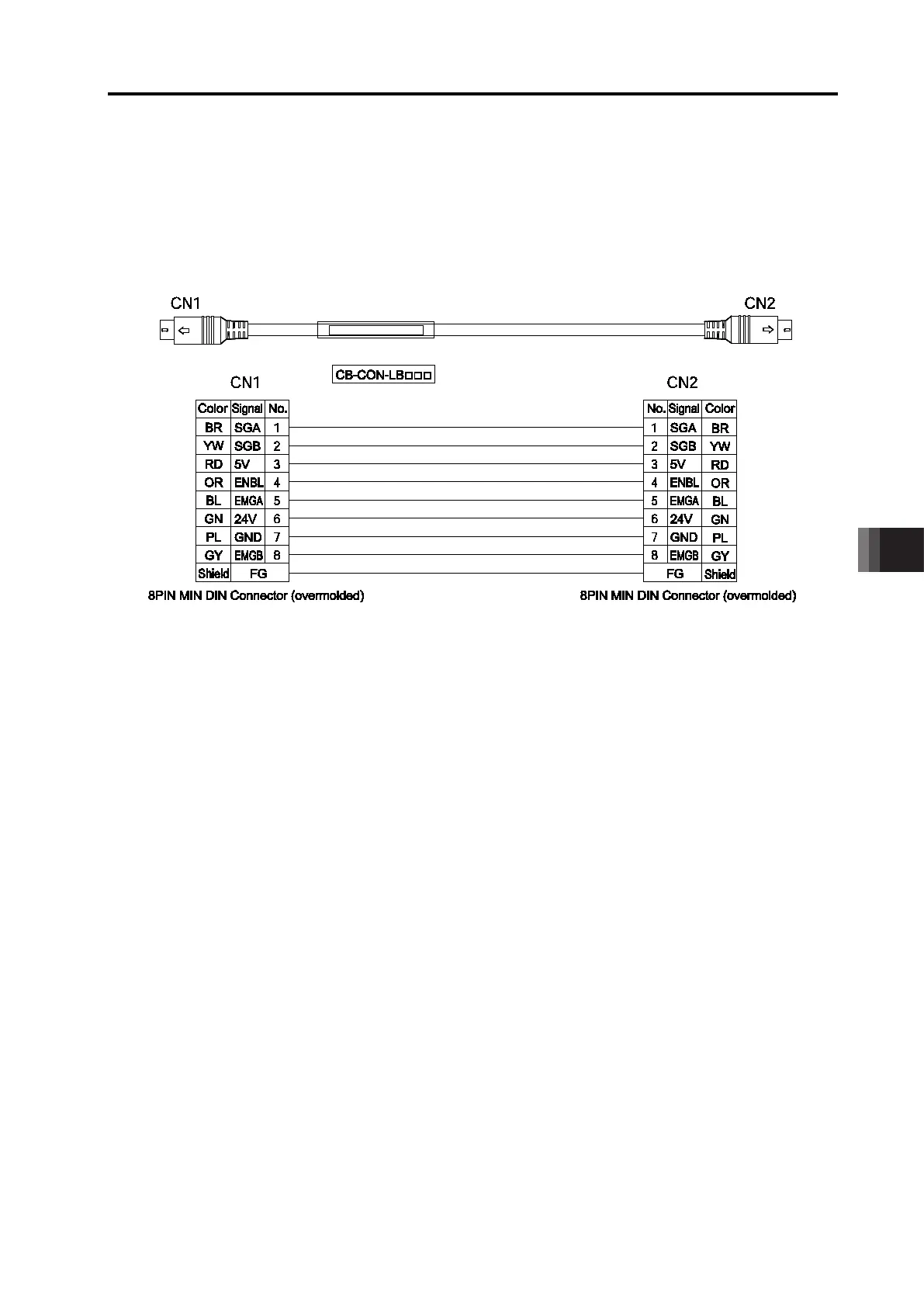

[2]
Connection Cable
•
Controller/TP
A
daptor Connecti
on Cable
Use this cable to c
onnect the controll
er and TP
adapter (RCB
-
LB
-
TG).
Model
: CB
-
CON
-
LB005 (standard c
able length : 0.
5m)
Maximum cabl
e length
: 2.0m
402
404
