1. Controller Overview
1.2 System Configuration
1-3 ME0342-4B
1.2 System Configuration
The following shows the system configuration.
Teaching tool
Model : TB-02
TB-03
M
odel : IA-OS
RCM-101-MW
RCM-101-USB
Power supply unit
Model : PSA-24
Field network
RCP6
Simple Absolute Battery
Battery Unit
: AB-7
Simple
Absolute Battery Unit
：
PCON-ABU
PLC
Connectable actuators
RCP5
RCP4
RCP3
RCP2
1.3 Name for Each Parts and Their Functions
ME0342-4B 1-4

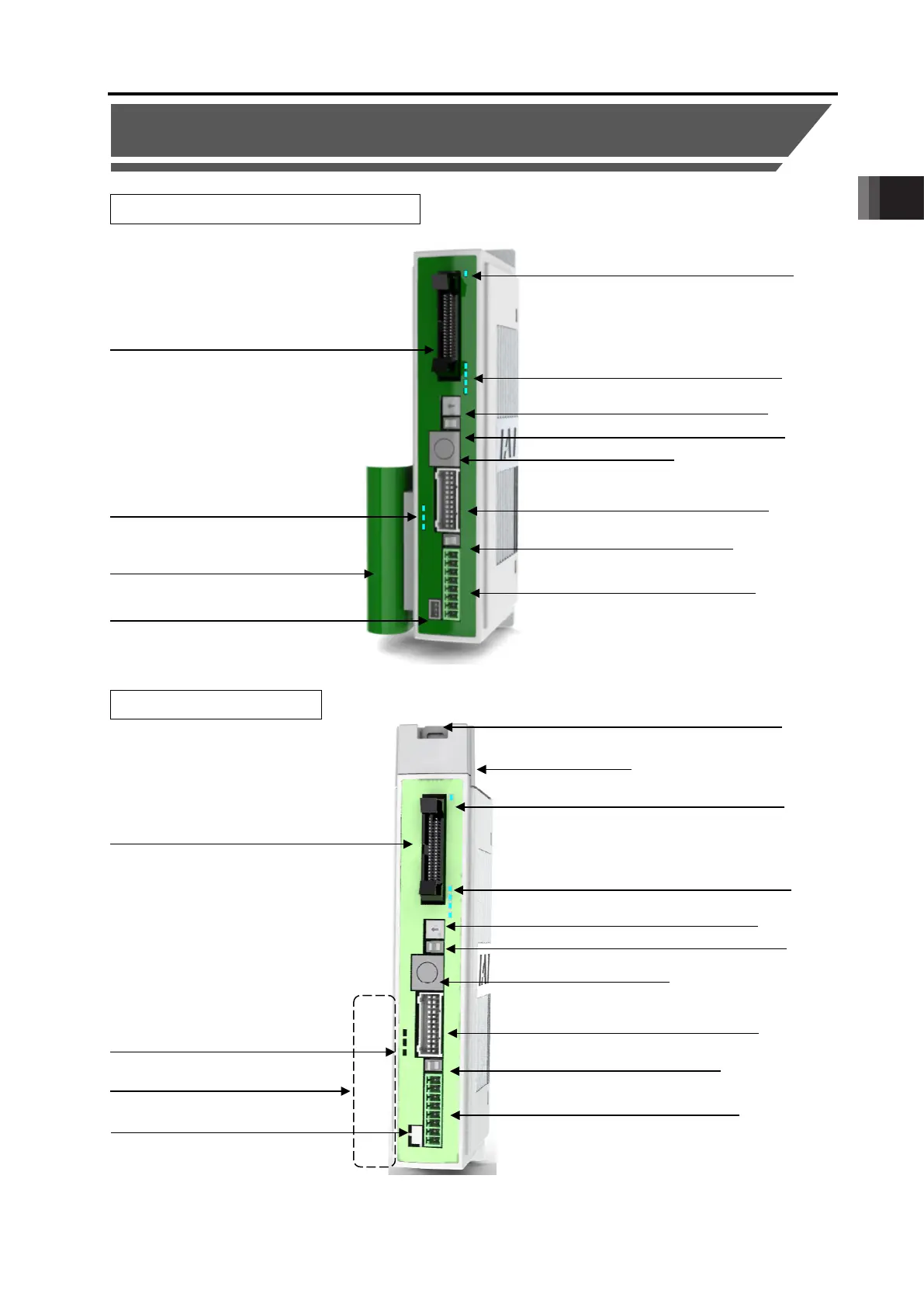

1.3 Name for Each Parts and Their Functions
CB/CGB/CBP/CGBP Type
CFB/CGFB Type
1) Absolute Battery Connector
(Note 1)
(For Simple Absolute Type)
2) Absolute Battery
(Note 1)
(For Simple Absolute Type)
3) Absolute Battery
Status Indicator LED
(Note 1)
(For Simple Absolute Type)
5) Controller Status Indicator LED
7) Axis Number Setting Switch
8) Operation Mode Setting Switch
9) SIO Connector
10) Motor • Encoder Connector
11) Brake Release Switch
12) Power Supply Connector
4) PIO Connector
/Field Network Connector
6) LED for Power/Alarm Monitoring
1) Absolute Battery Connector
(Not to be used)
13) Fan Unit
3) Absolute Battery
Status Indicator LED
(Not to be used)
5) Controller Status Indicator LED
7) Axis Number Setting Switch
8) Operation Mode Setting Switch
9) SIO Connector
10) Motor • Encoder Connector
11) Brake Release Switch
12) Power Supply Connector
4) PIO Connector
/Field Network Connector
6) LED for Power/Alarm Monitoring
2) Absolute Battery
(Unavailable)
14) Fan Unit Desorption Lever
Note 1 PCON-CBP/CGBP types are not applicable
for the simple absolute specifications.
