4. Operation
4.1 Basic Operation
4-2 ME0342-4B
4.1.2 Basic Operation Methods
There are two types, Positioner Mode and Pulse Train Control Mode, for the operation. Select the
suitable one considering the system function.
There are various types of actuators including slider, rod, rotary and gripper types. The same
operation control method is applicable unless particular descriptions are contained in this
manual.

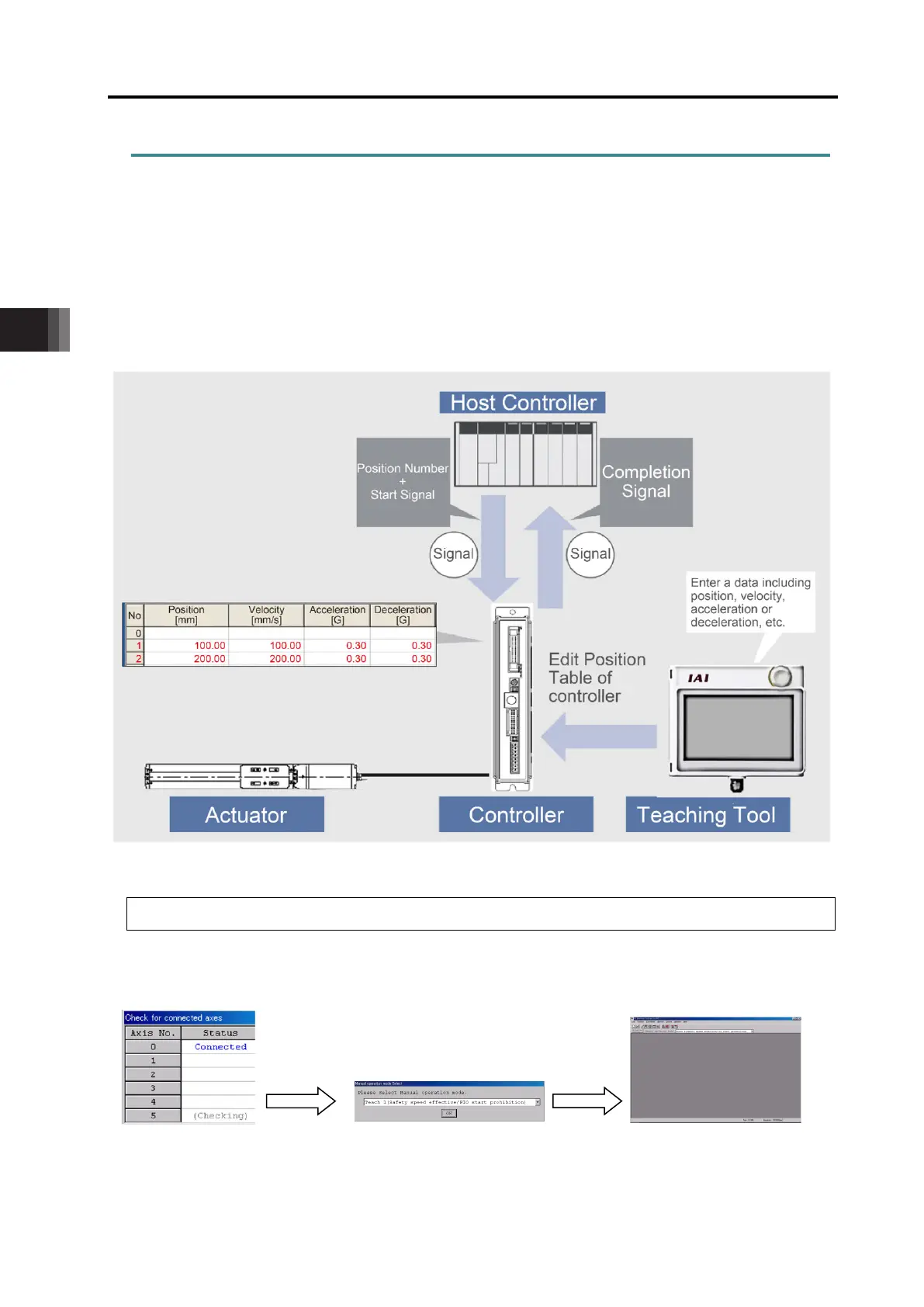

[1] Positioner Mode
 Operation Ready････Resistration of Position Data (Example of Registration of PC Software)
• Procedure 1 : Turn ON the controller.
• Procedure 2 : Start up the PC software and establish connection to the controller.
Automatically connected
to connectable controller
Press the OK
(Connection mode check)
Startup PC Software
