9. Appendix
9.1 Way to Set Multiple Controllers with 1 Teaching Tool
9-4 ME0342-4B
9.1.3 Axis No. Setting
Set an axis number by using the axis number setting switch on the front panel of PCON.
Possible axis numbers range from 0 to F by 16 axes.
After the setting, turn off the power of PCON and then on it again.
Caution
The axis number must be unique.
Adjust the arrow to a
desired position using a
flathead screwdriver.
9.1 Way to Set Multiple Controllers with 1 Teaching Tool
ME0342-4B 9-5

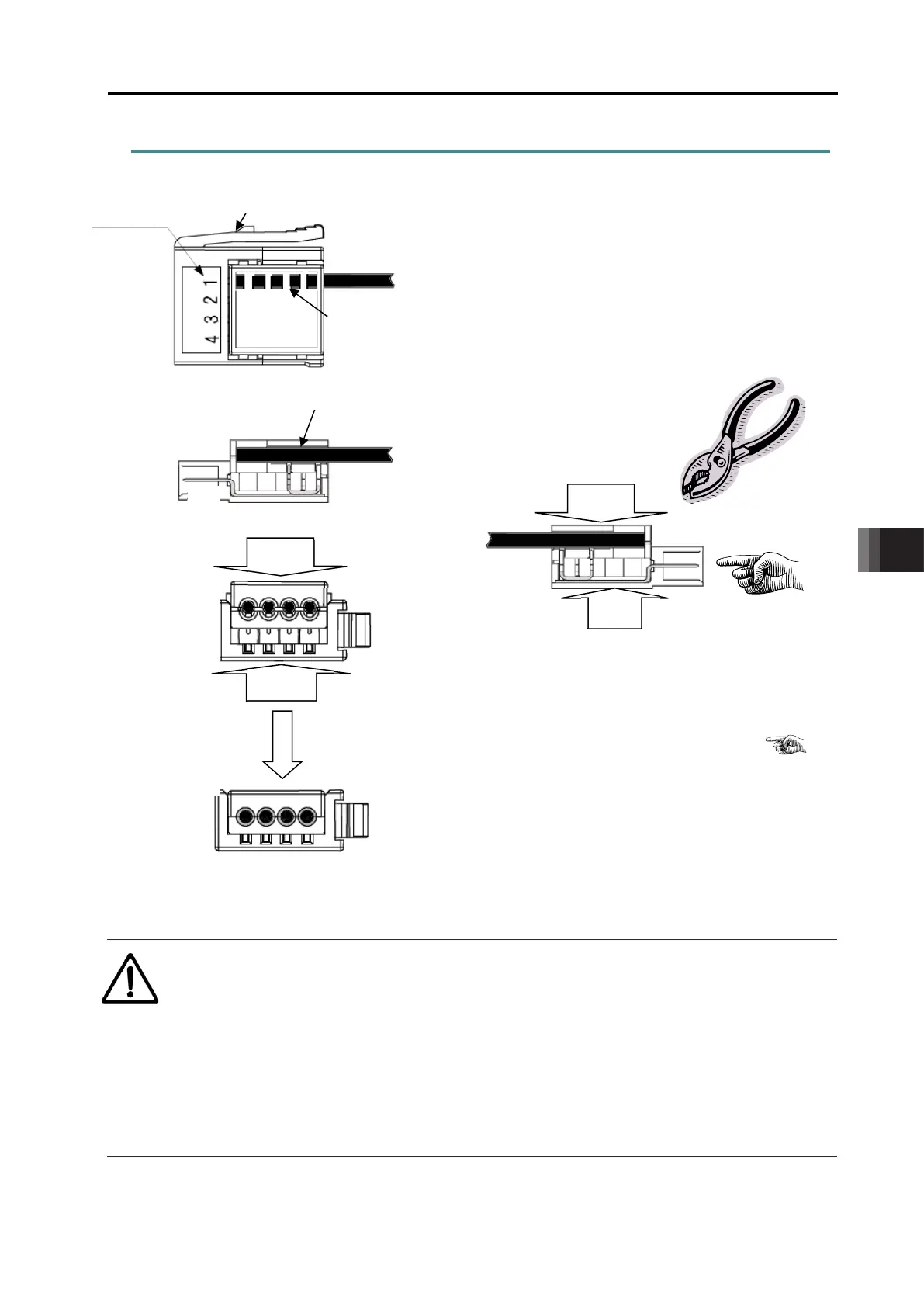

9.1.4 Handling of e-CON Connector (How to Connect)
Caution
● e-CON connector cannot be reused once the press-welding is failed. Use a new
connector to retry the press-welding.
● When connecting to the socket, hold the connector with care not to touch the clamp
lever, insert the connector in parallel to the socket until the clamp lever makes a “click”
sound.
● After joining to the socket, do not pull the cables or pull the connector without releasing
the lock of the clamp lever.
1) Check the applicable cable size.
Check the applicable cable. If it is not applicable, it
may cause a connection failure or a breakage of the
connector.
2) Check the pin numbers, do not reveal the sheath,
and insert the cable till it reaches the end.
Revealing the sheath may cause a failure such as
short circuit or cable fall out.
welding
welding
3) Use a (generally purposed) parallel plier with the width
of 10mm or more to press-weld the cable from top and
bottom.
Use the parallel plier from the direction of , grip
it while checking the condition of press-
make sure the press is in right angle and press it until
it becomes completely flat to the housing.
If the inserting is not enough, it may not be able to
attach to the socket or may cause a contact failure.
4) After finishing the press-welding, pull the cable lightly
to confirm that won’t come out.
welding
To Next Page
