IAI PCON-CB series User Manual

2. Specications
2.8 Noise Elimination and Mounting Method
2-28 ME0342-4B
2.8.2 Installation and Mounting
(1) Heat Radiation and Installation
Consider such facts as size of control panel, layout of a controller and cooling performance in
design and setup so the ambient temperature falls into the range from 0 to 40°C.
To fix the units in the control box, use the attachment holes on top and bottom of the unit for
the screw fixed type, and use the DIN rails for the DIN rail fixed type.

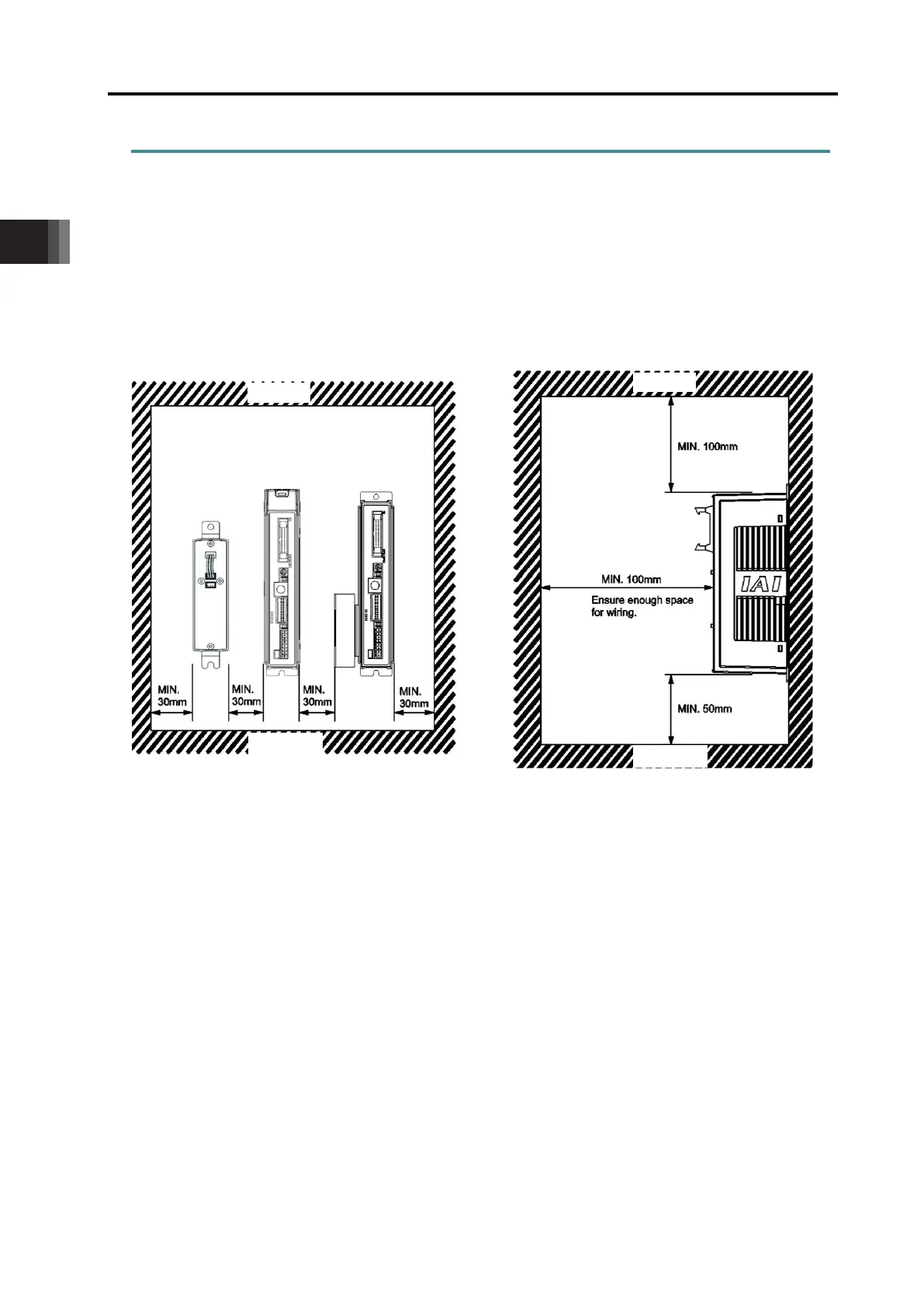

Install in the orientation shown in the figure below for heat radiation.
Floor
Floor
Ceiling
Ceiling
