IAI PCON-CB series - Pulse Train Input Output Interface

2. Specications
2.5 I/O Specifications
2-20 ME0342-4B
2.5 I/O Specifications
2.5.1 PIO Input and Output Interface
Input Section Output Section
Specification
Input Voltage 24V DC ±10% Load Voltage 24V DC
Input Current 5mA 1circuit
Peak Load
Electric Current
50mA 1circuit
ON/OFF
Voltage
ON Voltage MIN. 18V DC
OFF Voltage MAX. 6V
DC
Leakage Current MAX. 2mA/1point
NPN
PNP
I/O Cable Refer to [3.1.3 [4] PIO Circuit]
Insulated Insulation with Photocoupler
NPN Specification PNP Specification
2.5 I/O Specifications
ME0342-4B 2-21
2.5.2 Pulse Train Input Output Interface

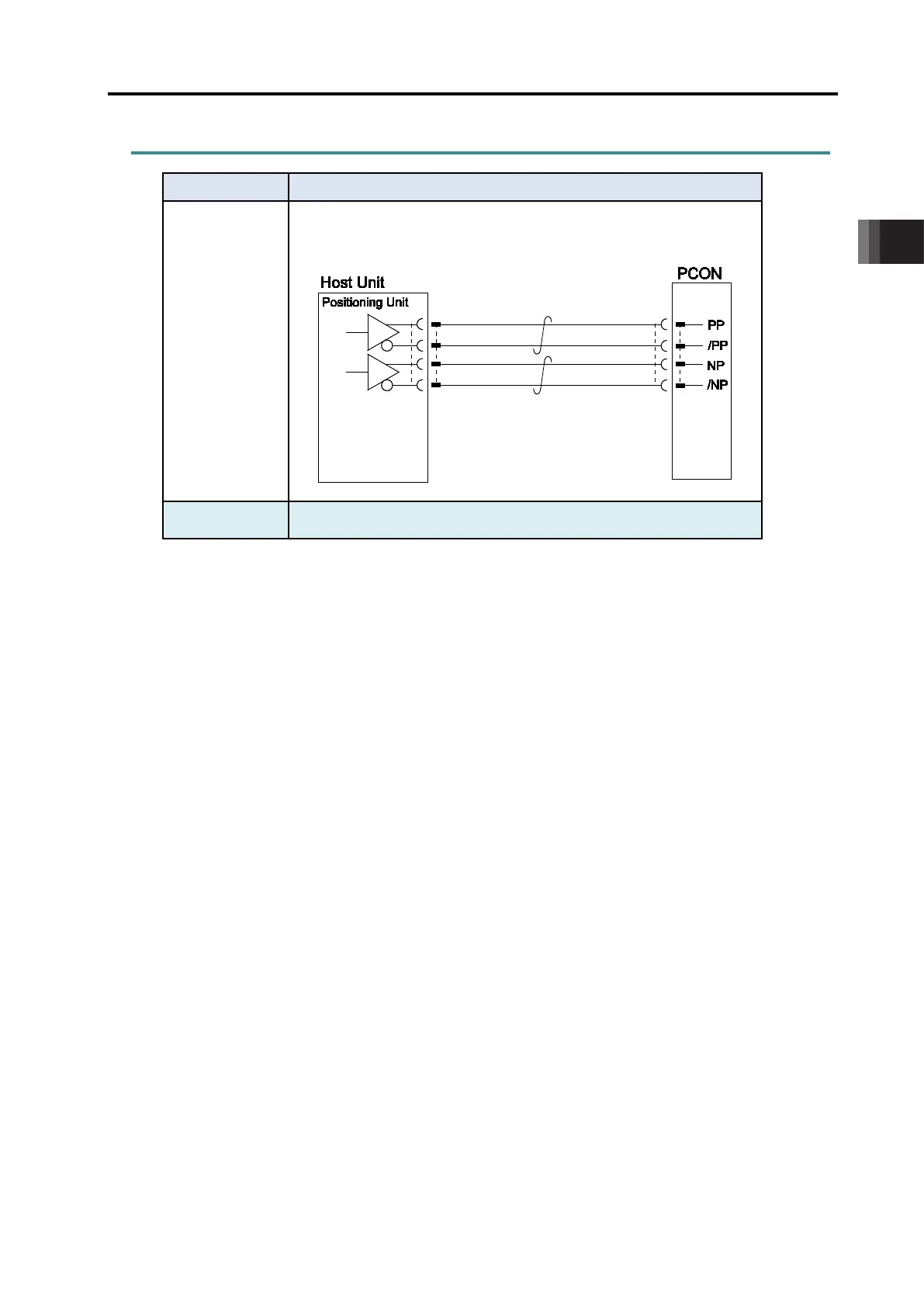

Line Driver Input
Specification
Sends input pulse (differential voltage: approx. 4V) from the host
unit that is installed with a line driver 26C31 or equivalent
Pulse Train
Form
Including active high and active low
