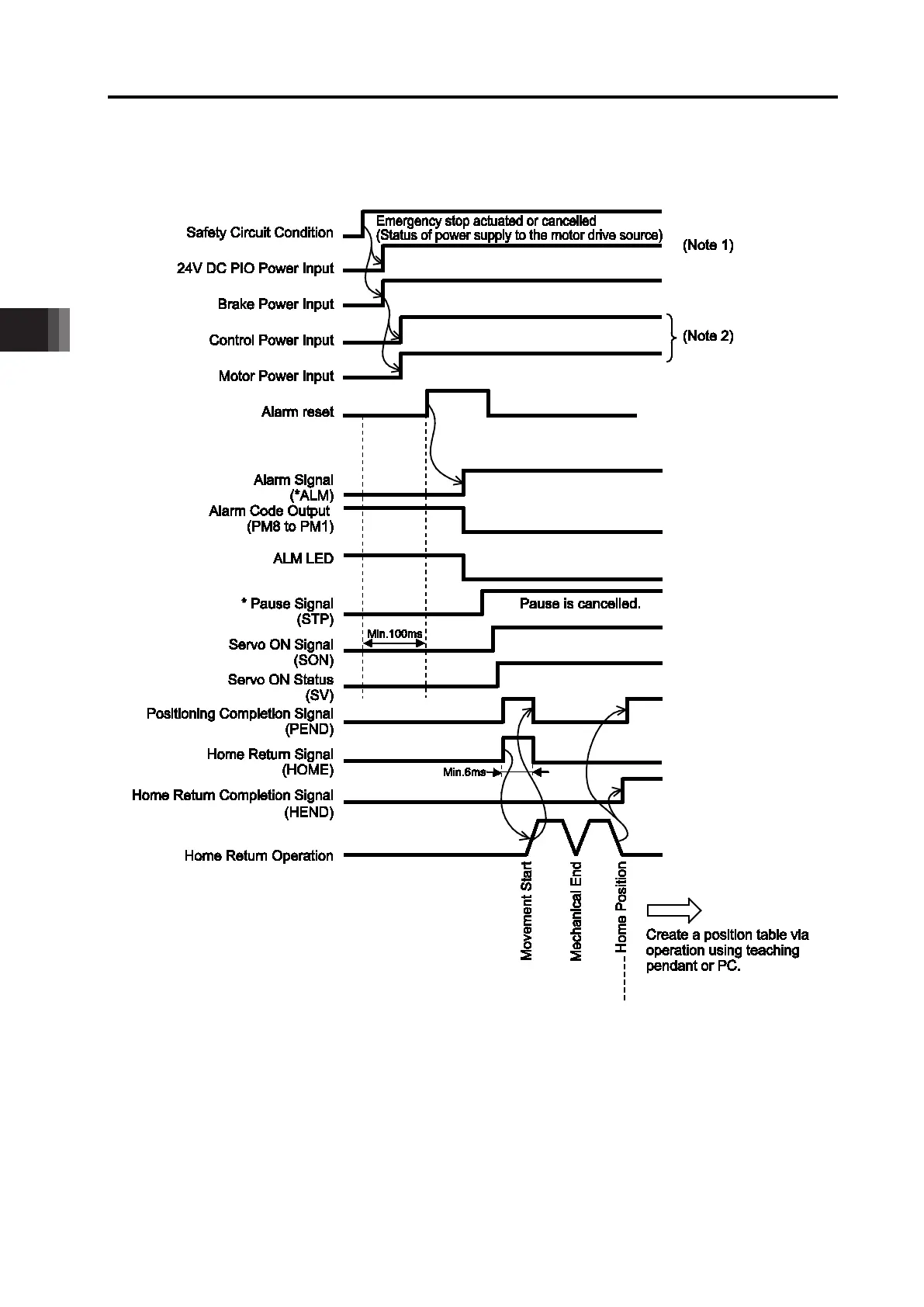

4. Operation
4
.5
Abs
olute Reset
4-
134
ME0342-4B
[Abs
olute Reset Process
]
Note 1
T
urn ON 24V power supply
for PIO (and 24V power s
upply for brake if t
he actuator is
equipped with a brak
e) prior to turn ON the c
ontrol power supply
or motor power supply
.
Note 2
Have the control power s
upply and motor power s
upply in common, and ha
ve them
turned ON that the s
ame time.
