9. Appendix

9.3 Example of Basic Positioning Sequence (PIO pattern 0 to 3)

9-24 ME0342-4B

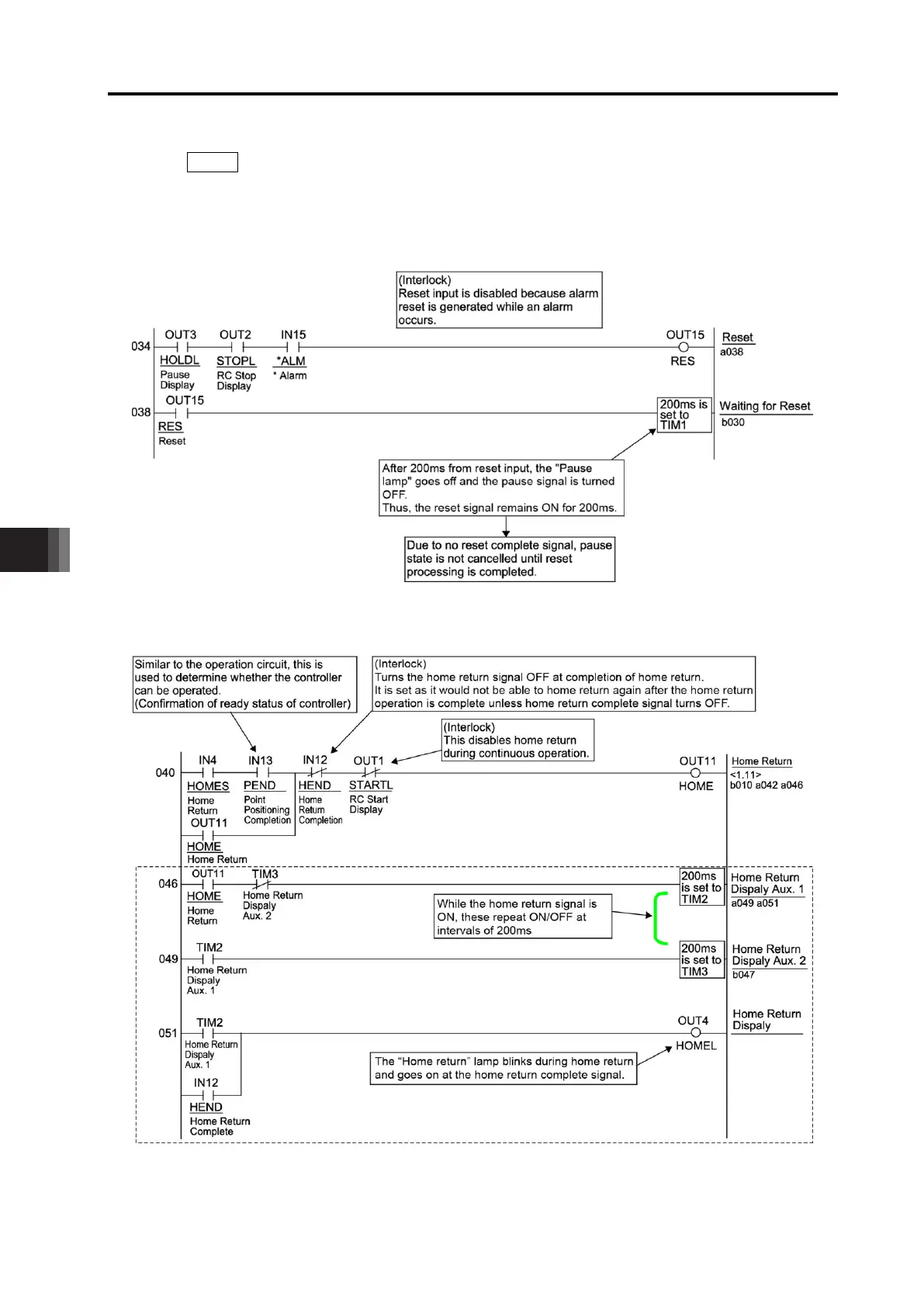

[4] Reset Circuit

If the Stop button on the operation box is pushed during pause, the reset signal RES sent

from PLC to PCON is turned ON and the remaining moving distance is cancelled. In addition,

this operation releases the pause. (It is because the pause is not required with no remaining

moving distance.)

[5] Home Return Circuit
