9. Appendix

9.4 List of Specifications of Connectable Actuators

9-76 ME0342-4B

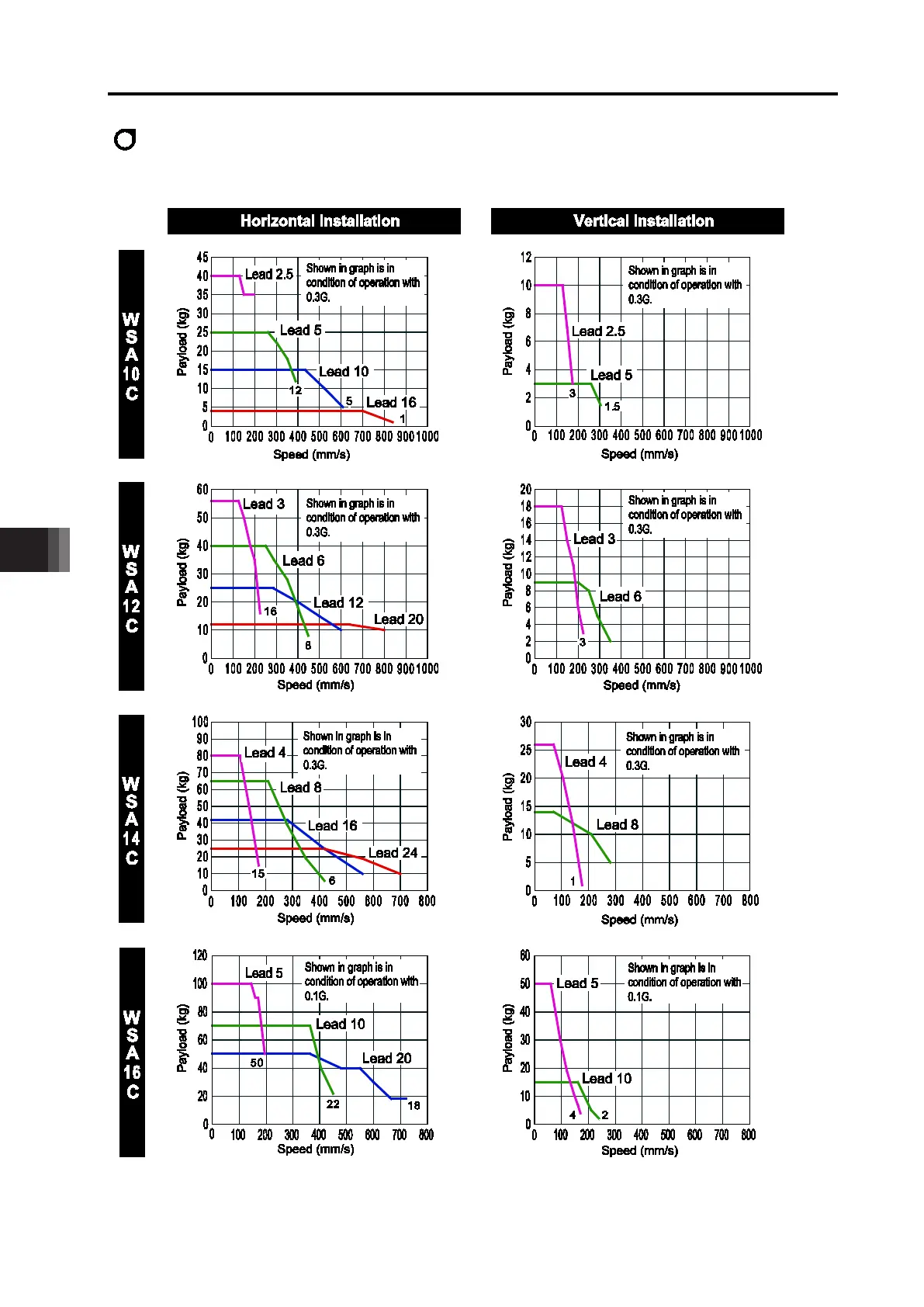

Correlation diagram of speed and payload for the RCP6 wide slider type (High

output effective)

* Characteristics should be the same for Cleanroom type.
