2. Specications
2.6 Options
2-24 ME0342-4B
2.6.3 Loadcell
It is a pressing force detection unit used in the force sensor used pressing.
It should be used by connecting to an actuator applicable for the force sensor used pressing.
A controller applicable for the force sensor used pressing should be ʺPCON-CBP/CGBPʺ.
Loadcell Specifications
Item Specifications
Loadcell System Strain Gauge
Rated Capacity [N] 600 2000
Repetition Load Accuracy [% F.S.] ±1
Allowable Overload [% F.S.] 200
Environmental
Specifications
Ambient operating
temperature
Ambient operating
humidity
85％RH or less (Should be no condensation)
Ambient Atmosphere in Use Should be no corrosive gas
Ambient storage temperature -10 to 60 °C
Ambient Humidity for Storage 90％RH or less (Should be no condensation)
Vibration resistance
In X, Y and Z Directions 10 to 57Hz
Width on One Side 0.035mm (Continuous),
Insulation withstanding voltage [V] 50V DC
* F.S. : Withstand Load (Full Scale)
(Note) The frequency of the calibration periods should basically be determined by the customer.
For the reference of the calibration frequency, check in [7.1 Calibration Frequency in
Pulse Pressing Instruction Manual].
Also, for how to take off and put back on the loadcell when calibration should refer to [4.8
How to Replace Loadcell in Pulse Pressing Instruction Manual].
(Note) The number of actuators available to connect should differ depending on the rated
capacity of a loadcell.
2.6 Options
ME0342-4B 2-25

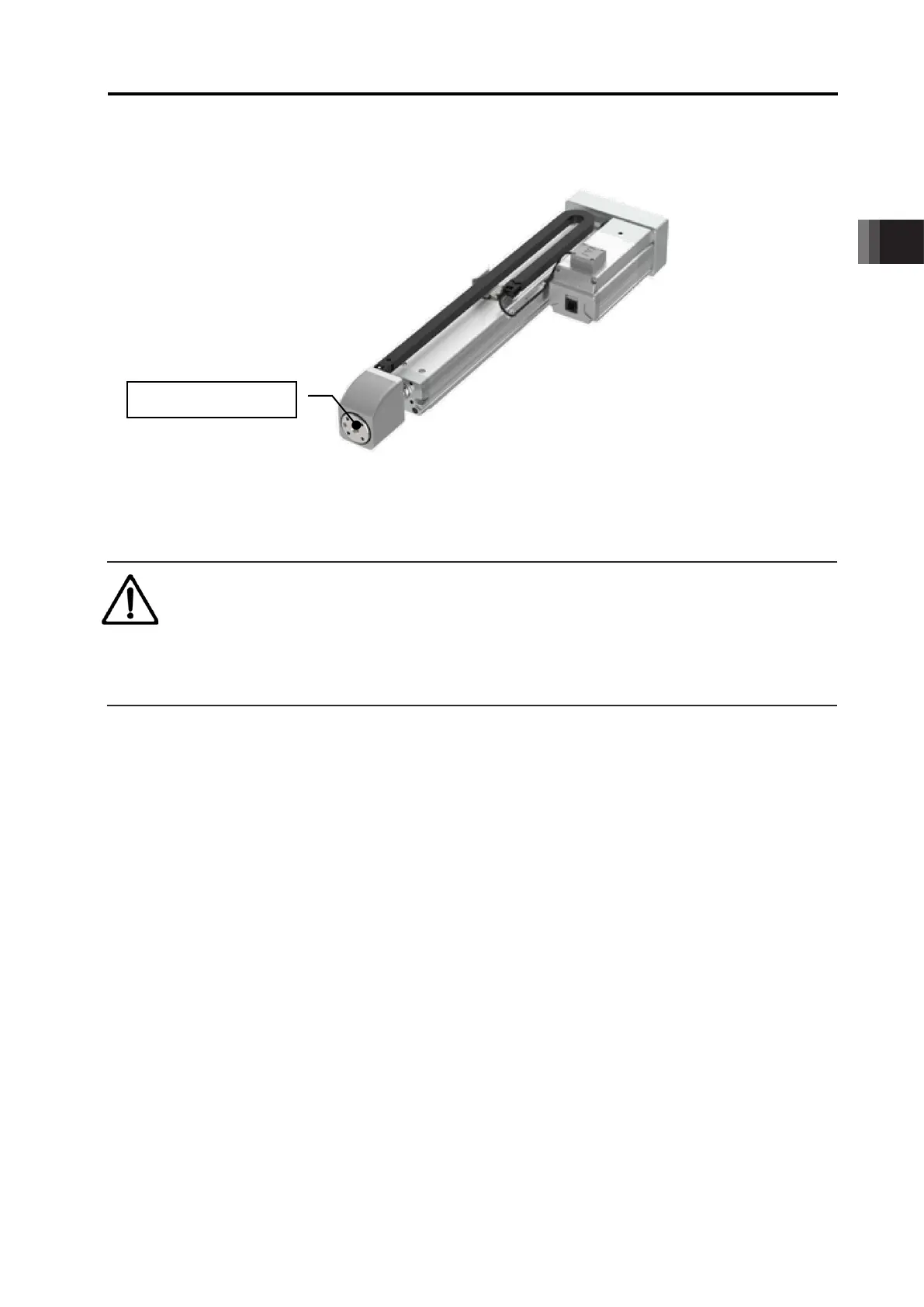

[Installation]
When installed on RCP6-RRA6R
Refer to [Pulse Press Instruction Manual (ME3807)] for how to install and details of dimensions.
Caution
● Do not apply impact on the loadcell main body. Also, do not attempt to have it subject to
collision.
As a loadcell is a precise measurement device, it may get damaged with an impact or
collision.
To Next Page
