3. Wiring
3
.1 Positioner Mode (P
IO Control)
3-
17
ME0342-4B
[3]

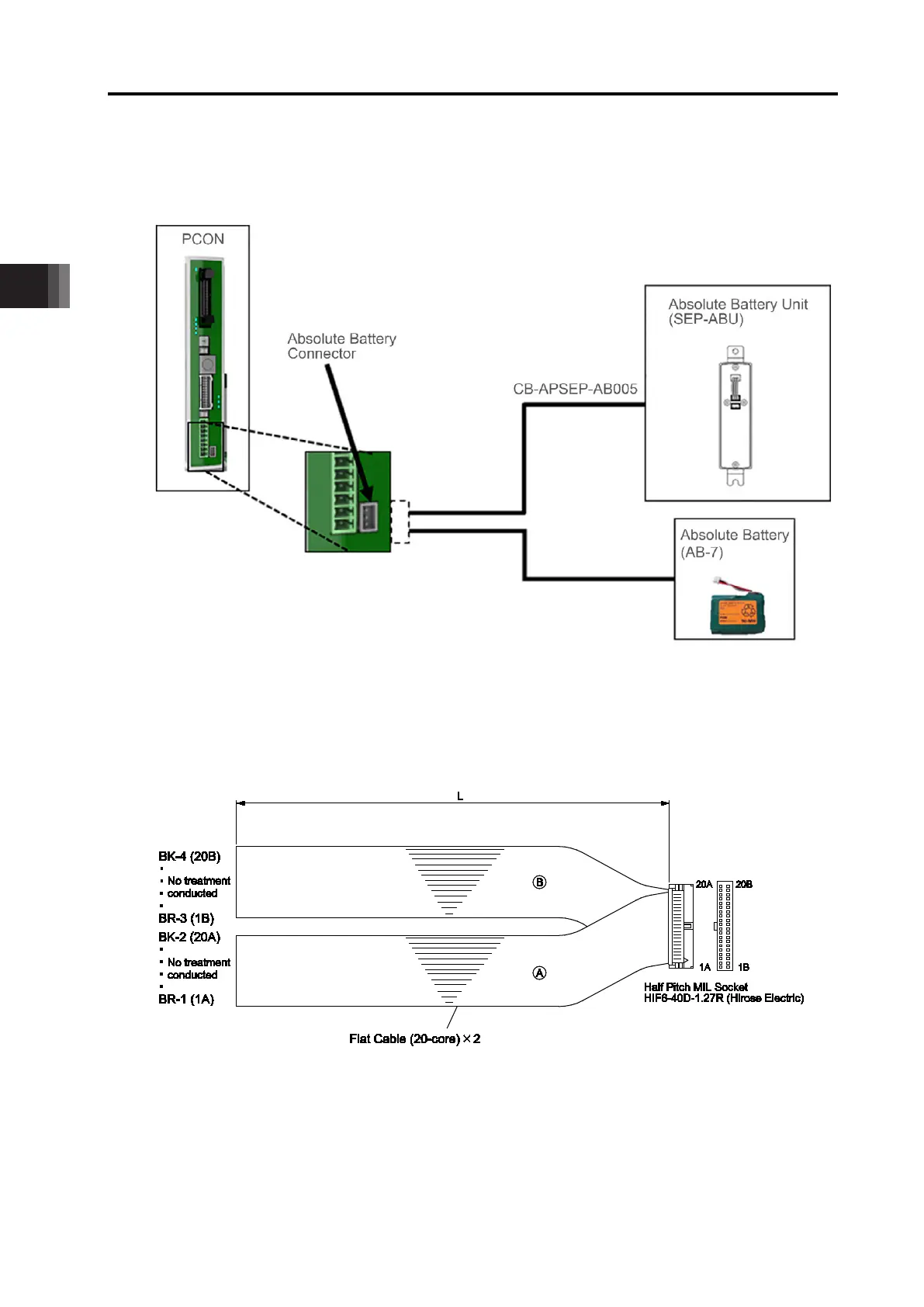

Absolute Circuit (
For Simplified
Absolute T
ype Only)
Connect to the absol
ute battery unit or abs
olute batt
ery
.
[4]
PIO Circuit
●
Use the attached cable f
or the I/O connection.
Model : CB
-
PA
C
-
PIO□□□ (□
□□ indicates the
cable length L. Ex
ample. 020
=
2m)
See 1) to
8
) in this sec
tion for the signal as
signments for each wiring c
ables.
