INVT SV-DA200 Series User Manual

SV-DA200 series AC servo drive Function codes
-97-
P0.15
Default monitoring
parameters
Setting range
Default
Unit
Available mode
0–22
0
-
P
S
T

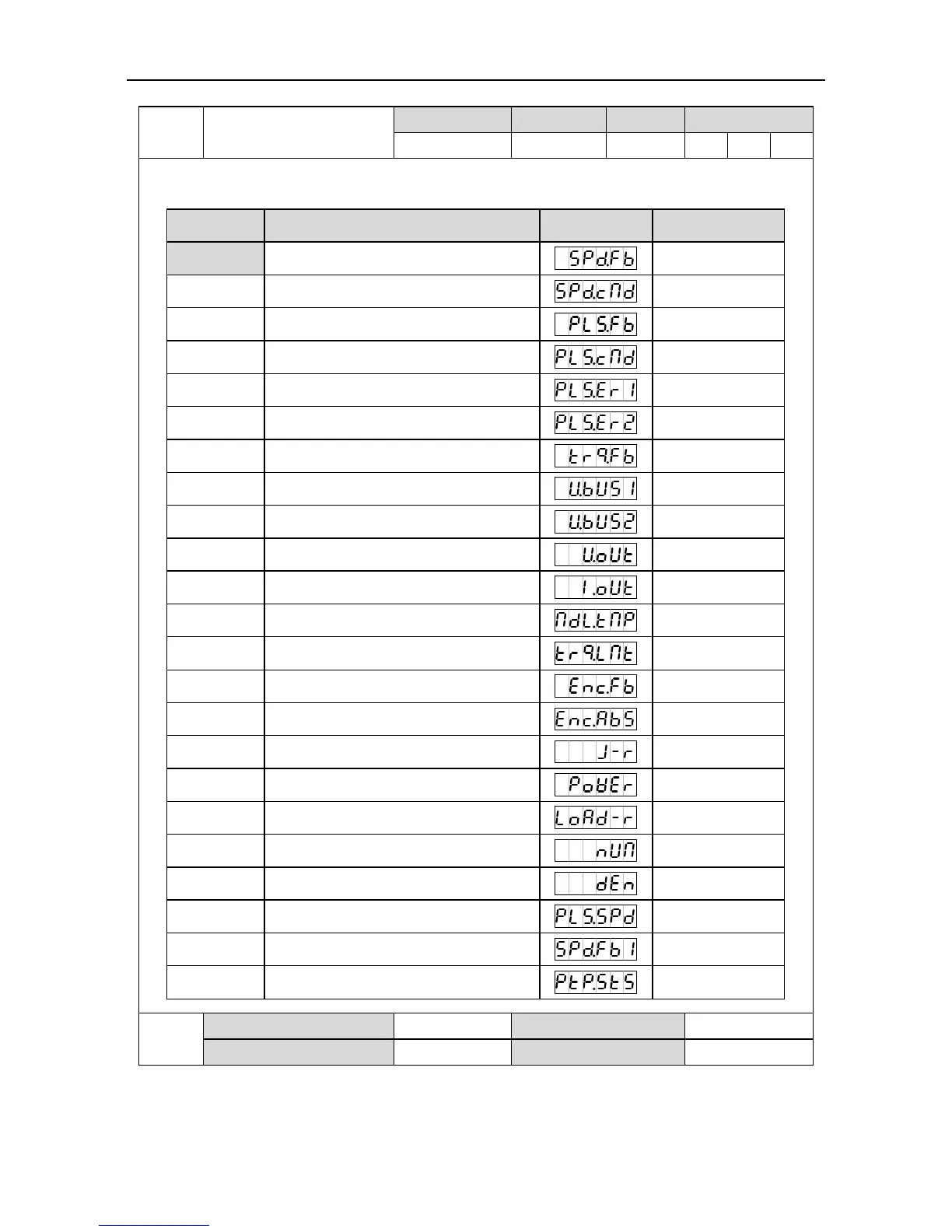

This parameter is used to set the parameters which can be monitored while powering-on of the
system:
Setting value
Parameter meaning
Sign
Unit
[0]
Motor rotation speed
r/min
1
Speed command
r/min
2
Pulse feedback accumulation
reference unit
3
Pulse command accumulation
reference unit
4
Retention pulse
reference unit
5
Hybrid control deviation
reference unit
6
Current torque
%
7
Main circuit DC voltage
V
8
Voltage of control power
V
9
Output voltage
Vrms
10
Output current
Arms
11
Drive temperature

12
Torque limit
%
13
Encoder feedback value
pulse
14
Rotor position to Z pulse
pulse
15
Load inertia ratio
%
16
Output power
%
17
Motor load rate
%
18
Molecule of actual electronic gear
-
19
Denominator of actual electronic gear
-
20
Pulse speed command
r/min
21
Instant speed
r/min
22
PTP state
-
P0.15
Data size
16bit
Data format
DEC
Modbus address
1030,1031
CANopen address
0x200F, 0x00
