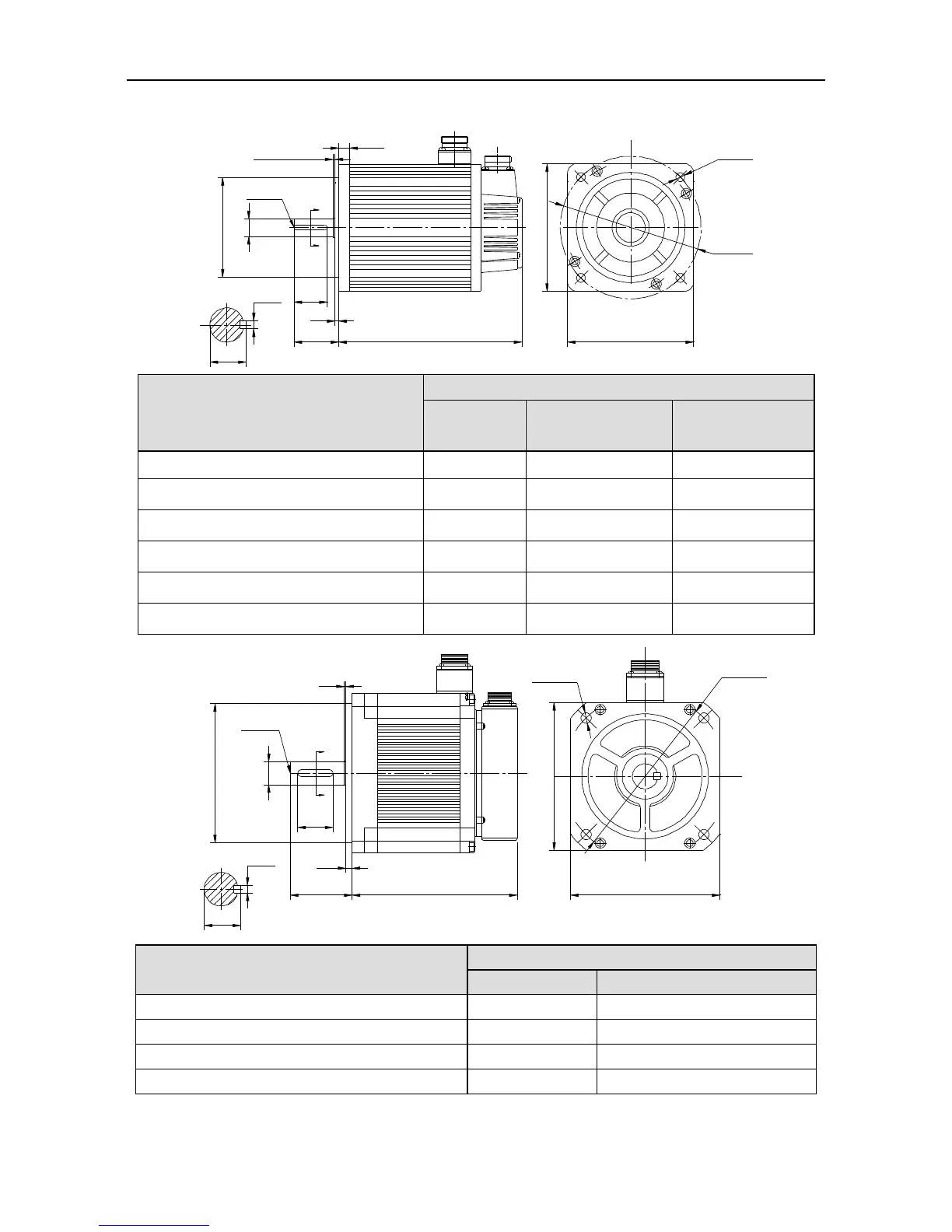

2.3.5 Outline and installation dimension for 130 base (mm)
130
130
Φ145
Φ110h7
44
Φ22h7
12
6
55 L
M6 depth 22
6h9
A-A
24.5
4-Φ9
A
A
Φ24.4×2
Motor model (2500-PPR/multi-turn
absolute value/rotary transformer)
L(mm)
W/o brake
Permanent magnet
brake
Electromagnetic
brake
SV-MM13-1R0E--A
143
185
185
SV-MM13-1R5E--A
159
201
201
SV-MM13-2R0E--A
175
217
217
SV-MM13-3R0E--A
207
249
249
SV-MH13-0R8B--A
167
209
209
SV-MH13-1R3B--A
202
244
244
Φ110h7
Φ22h7
58
6
L
35
130
Φ145
4-Φ9
130
M6 depth 15
6h9
A-A
24.5
A
A
2
Motor model
(17-bit single-turn encoder)
L(mm)
W/o brake
Electromagnetic brake
SV-MM13-1R0E--3A
165
220
SV-MM13-1R5E--3A
185
240
SV-MM13-2R0E--3A
215
270
SV-MM13-3R0E--3A
265
320
