SV-DA200 series AC servo drive Wiring instruction
-42-

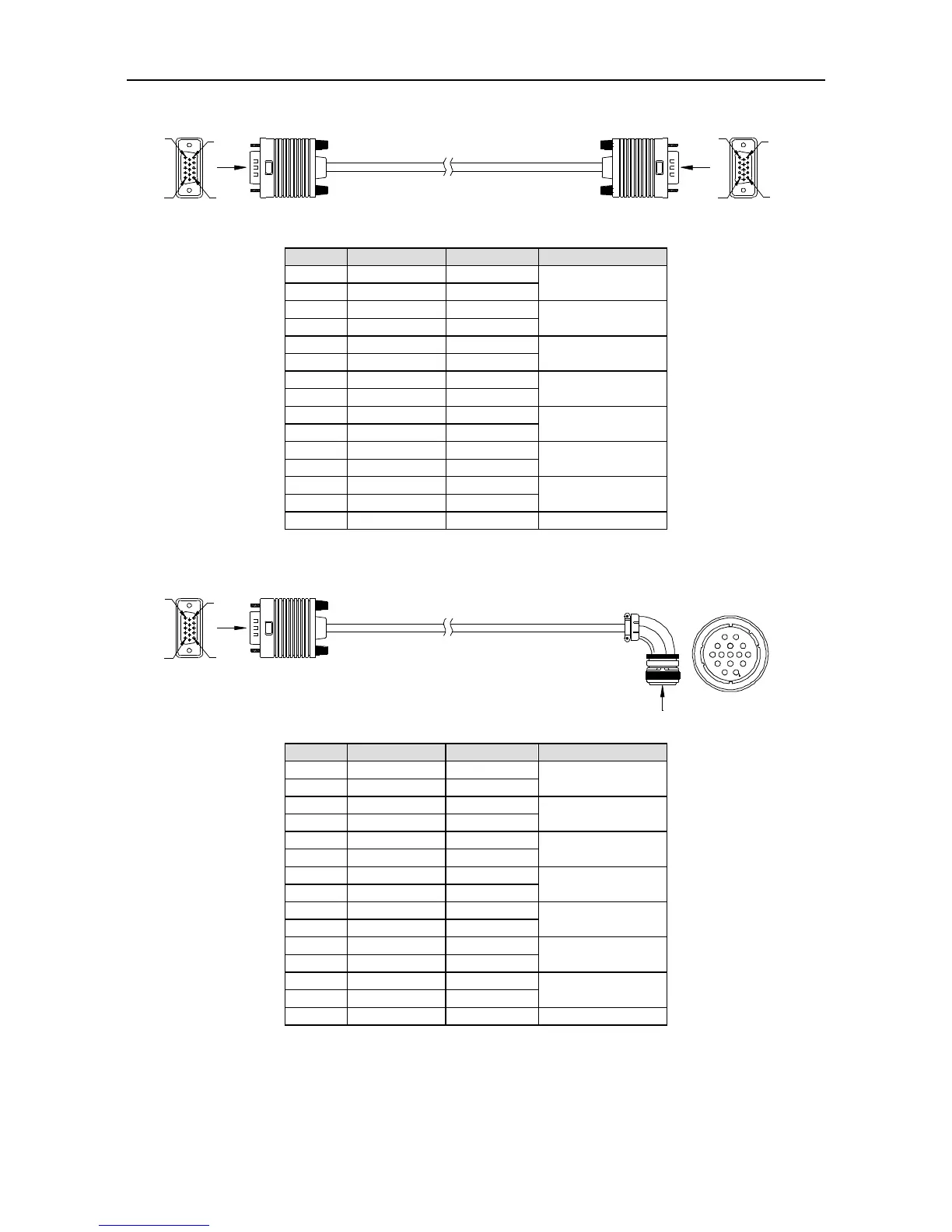

3.5.2 2500-PPR 40, 60, 80-base encoder cable
1
11
15
5
X2
B
B dire ction view
1
11
15
5
6
10
X1
A
6
10
A dire ction view
Wiring relation
Signal
X1
X2
Core wire structure
V+
X1.1
X2.1
Twisted pair
V-
X1.7
X2.7
W+
X1.2
X2.2
Twisted pair
W-
X1.8
X2.8
A+
X1.3
X2.3
Twisted pair
A-
X1.4
X2.4
U+
X1.6
X2.6
Twisted pair
U-
X1.11
X2.11
B-
X1.9
X2.9
Twisted pair
B+
X1.10
X2.10
Z-
X1.13
X2.13
Twisted pair
Z+
X1.14
X2.14
5V
X1.5
X2.5
Twisted pair
GND
X1.12
X2.12
PE
Steel casing
Steel casing
3.5.3 2500-PPR 110, 130, 180, 200 base encoder cable
12
5 3
610
1113
15 14
1
11
15
5
6
10
X1
X2
A
B
B dire ction v iew
A dire ction v iew
Wiring relation
Signal
X1
X2
Core wire structure
V+
X1.1
X2.11
Twisted pair
V-
X1.7
X2.14
W+
X1.2
X2.12
Twisted pair
W-
X1.8
X2.15
A+
X1.3
X2.7
Twisted pair
A-
X1.4
X2.4
U+
X1.6
X2.10
Twisted pair
U-
X1.11
X2.13
B-
X1.9
X2.8
Twisted pair
B+
X1.10
X2.5
Z-
X1.13
X2.9
Twisted pair
Z+
X1.14
X2.6
5V
X1.5
X2.2
Twisted pair
GND
X1.12
X2.3
PE
Steel casing
Steel casing
