REPAIR
DISASSEMBLY (See Figure 8E-2)
1. Before disassembly mark pump sections, starting
at drive shaft end, to ensure correct order of part
reassembly. Recommended method of marking
body sections is to use a fine point metal punch,
making one indentation in line on each section.
HYDRAULICS
SECTION 8E. IMPLEMENT PUMP
8E-2
Never pry pump sections apart as damage to
sealing areas can result. Use of a soft face ham-
mer to tap sections apart is recommended.

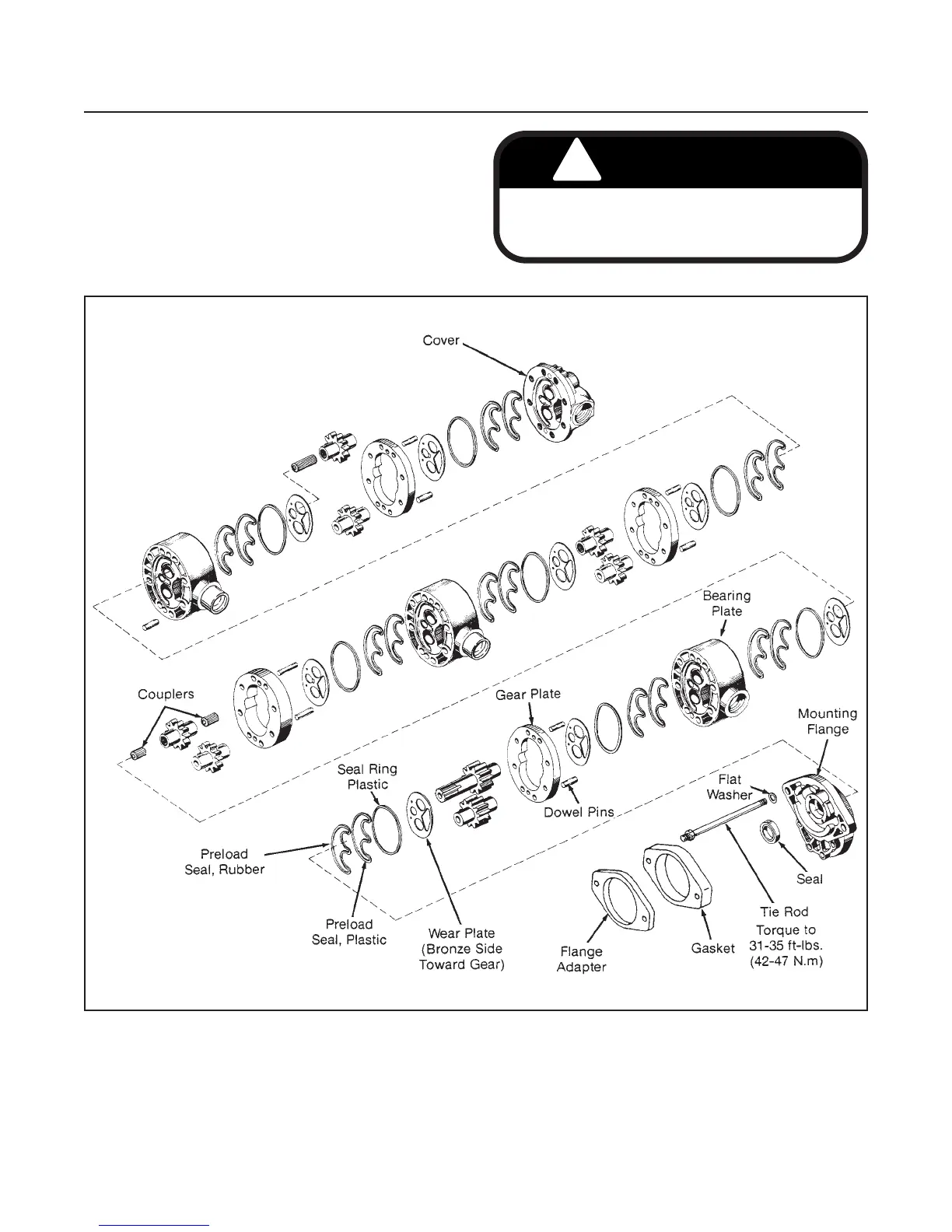

Figure 8E-2. Implement Pump Disassembly
