Keysight B1505A Configuration and Connection Guide 5-29
Connection Guide for Wafer Prober and Your Own Test Fixture
To Connect Module Selector

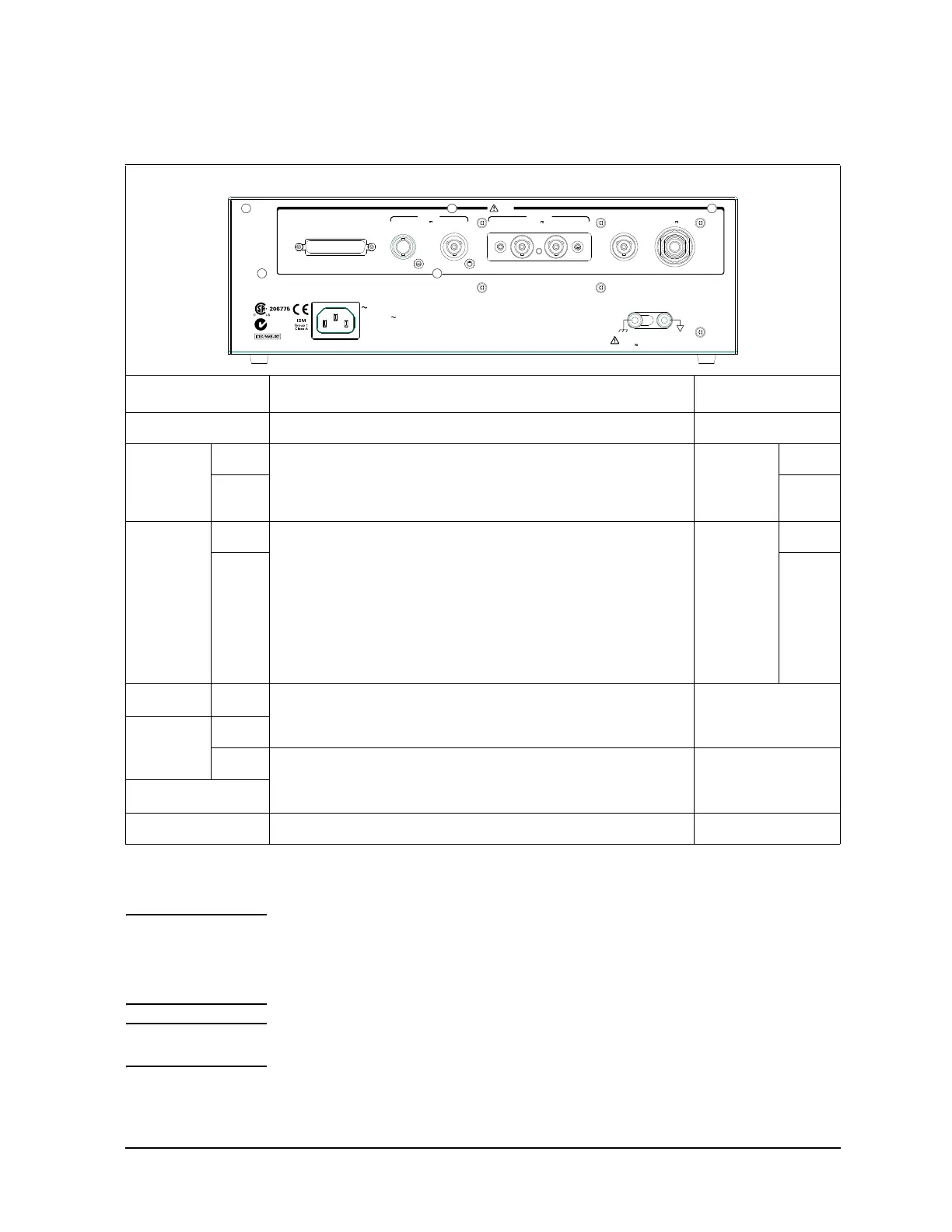

Table 5-20 To Connect N1258A Input
WARNING The connector cap must be connected to the unused input connectors.
If the Circuit Common terminal is not connected to the frame ground terminal (for
floating measurement), a potential shock hazard may present. Do not touch any of
measurement circuit at any time while a floating measurement is in progress.
CAUTION For floating measurement, do not apply voltage more than ± 42 V to the Circuit Common
terminal. Failure to heed this caution may result in damage to the N1258A.
B1505A terminals Required cables N1258A terminals
Digital I/O 16493G Digital I/O connection cable, 3 m or 1.5 m Digital I/O
HCSMU
or
DHCSMU
Force 16493S HCSMU cable, 3 m or 1.5 m, 1 ea. for HCSMU
16493S HCSMU cable, 3 m or 1.5 m, 2 ea. and 16493S-021 Dual
HCSMU adapter, 1 ea. for DHCSMU
HCSMU
Force
Sense Sense
HPSMU
or
MPSMU
Force 16494A Triaxial cable, 3 m or 1.5 m, 1 ea., for the non-Kelvin
connection, connect it between the Force connectors.
For the Kelvin connection, prepare additional one more cable and
connect it between the Sense connectors. Or use 16493K Kelvin
triaxial cable instead of 16494A.
Use 16493K cable if the High output terminals are connected to
the prober chuck.
HPSMU
Force
Sense Sense
HVSMU
Force 16493T HVSMU cable, 3 m or 1.5 m
HVSMU
HVMCU
1
1. HVMCU is configured by using the N1266A, HVSMU, GNDU, and two MCSMU. See "To Connect
HVSMU Current Expander" on page 5-34.
High
Low 16493L GNDU cable, 3 m or 1.5 m
GNDU
GNDU
Power cable, for connecting to power line LINE, 65 VA Max.
GNDU
HPSMU
±200 V Max
HCSMU
±40 V Max
Digital I/O
SenseForce SenseForce
N10149
HVSMU
LINE
100–240 V
50/60 Hz
65 VA Max
Circuit
Common
For floating measurements disconnect
shorting bar. Do not apply more than
±42 V
to Circuit Common.
Input
±3 kV Max
