Keysight Technologies B1505A Configuration Guide

1-66 Keysight B1505A Configuration and Connection Guide
Configuration Guide

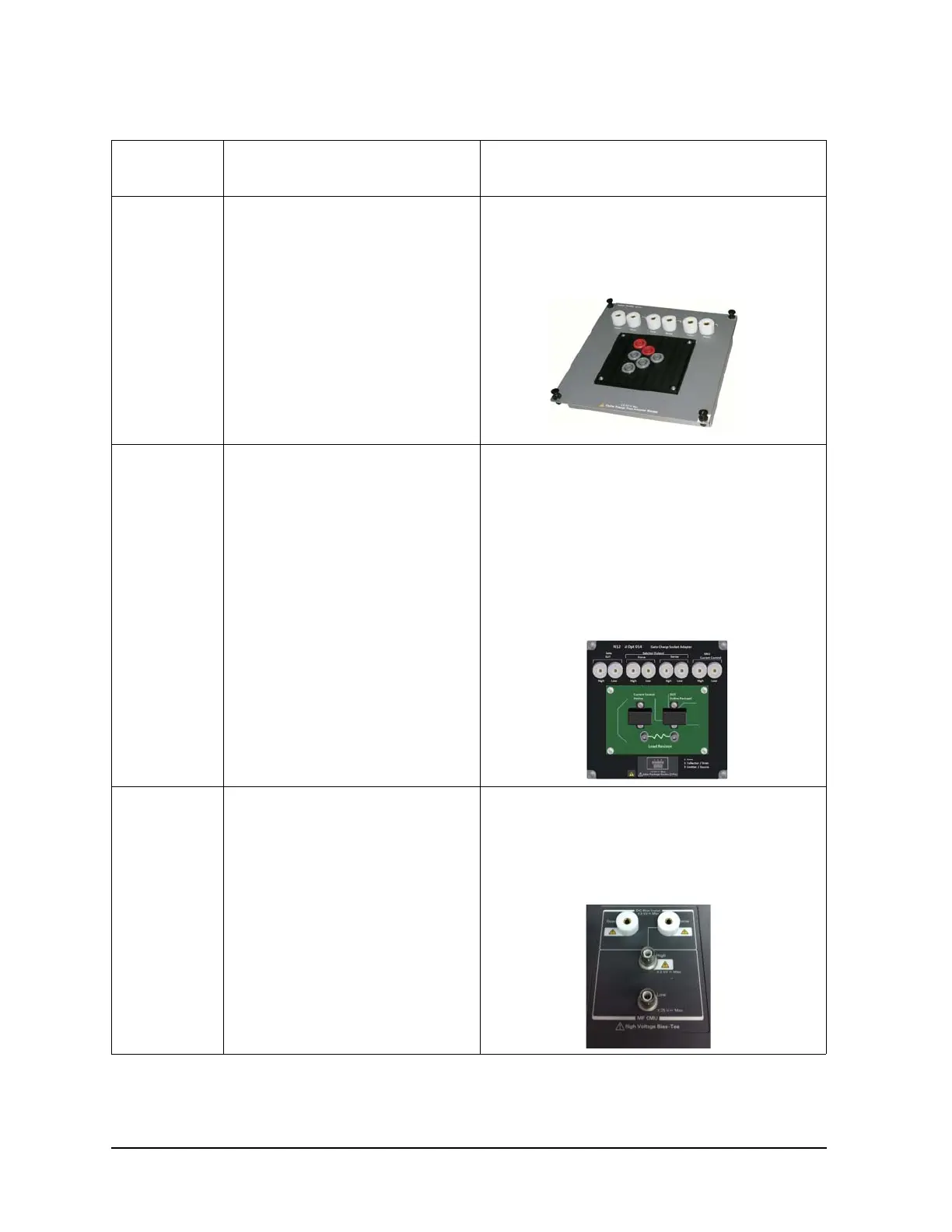

Upgrade Kit for N1259AU Test Fixture
N1259AU-013 Curve Tracer Test Adapter Socket
Module
• The N1259AU-013 is the same as the
N1265AU-013 Curve Tracer Test Adapter
Socket Module.
• Maximum voltage and current is 3 kV and 500
A.
N1259AU-014 Gate Charge Socket Module • The N1259AU-014 is the same as the
N1265AU-014 Gate Charge Socket Module.
• The N1259AU-014 option is furnished with the
following wires:
- Four red long wires (N1254A-508)
- Four black long wires (N1254A-509)
- Two red short wires (N1265-61751)
- Two black long wires (N1265-61752)
• Maximum voltage and current is 3 kV and 20 A.
N1259AU-020 High Voltage Bias-Tee • The N1259AU-020 High Voltage Bias-Tee is
furnished with two SHV-SHV cables
(N1254A-512) and two SHV-banana adapters
(N1254A-513).
• Installation must be done at Keysight Service
Center.
Model/
Option
Description Note
Collector / Drain
Emier / Source Base / Gate
N1259A Opt 013
Force Sense
Force Sense
Force Sense
Curve Tracer Test Adapter Socket
1
2
5
6
4
3
A
BC
59
