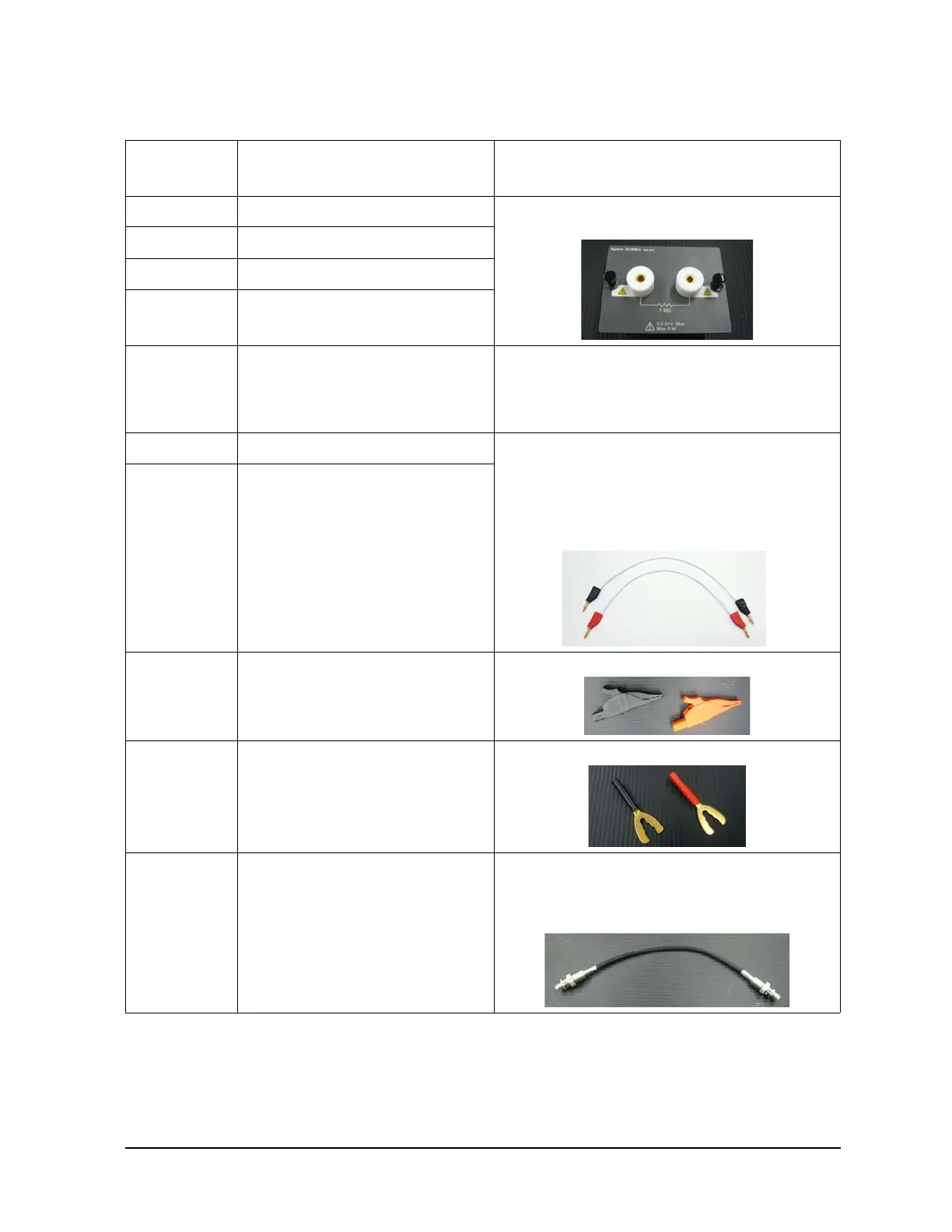

Keysight B1505A Configuration and Connection Guide 1-67
Configuration Guide
Upgrade Kit for N1259AU Test Fixture
N1259AU-021 1Mohm R-box • R-box can be replaced with other R-box easily
by users.
N1259AU-022 100 kohm R-box
N1259AU-030 1 kohm R-box for gate
N1259AU-035 Universal R-Box
N1259AU-300 Module Selector • Furnished with a Digital I/O control cable
(16493G-001), maximum 35VA.
• Installation must be done at Keysight Service
Center.
N1254A-508 Connection wire, red 1 ea. • The N1254A-508/509 Connection Wire supports
40A current, but does not support 500 A/1500 A
current flow on the N1265A Ultra High Current
Expander/Fixture.
• Max voltage and current are 3 kV and 40 A.
• The cable length is 250 mm.
N1254A-509 Connection wire, black 1 ea.
N1254A-510 Dolphin clip adapter, black 1 ea. and
red 1ea.
N1254A-511 Cable lug adapter, black 1 ea. and red
1ea.
N1254A-512 SHV Cable 250 mm, 1ea • The N1259AU-020 High Voltage Bias-tee is
furnished with two N1254A-512 cables.
• The N1254A-513 adapter is required to connect
a banana plug.
Model/
Option
Description Note
