N9030B PXA Signal Analyzer Service Guide 453
Assembly Replacement Procedures
RF Area (Options 503, 508, 513, 526)
5. Refer to Figure 16-19. Remove cable W15 (E4410-20164) from bottom
switch center port to Front End Assembly J9.
6. Remove cable W53 (N9020-20144) from top switch port 2 to center switch
center port.
7. Remove cable W13 (N9020-20210) between attenuator (connected to
center switch port 1 and bottom switch port 1.

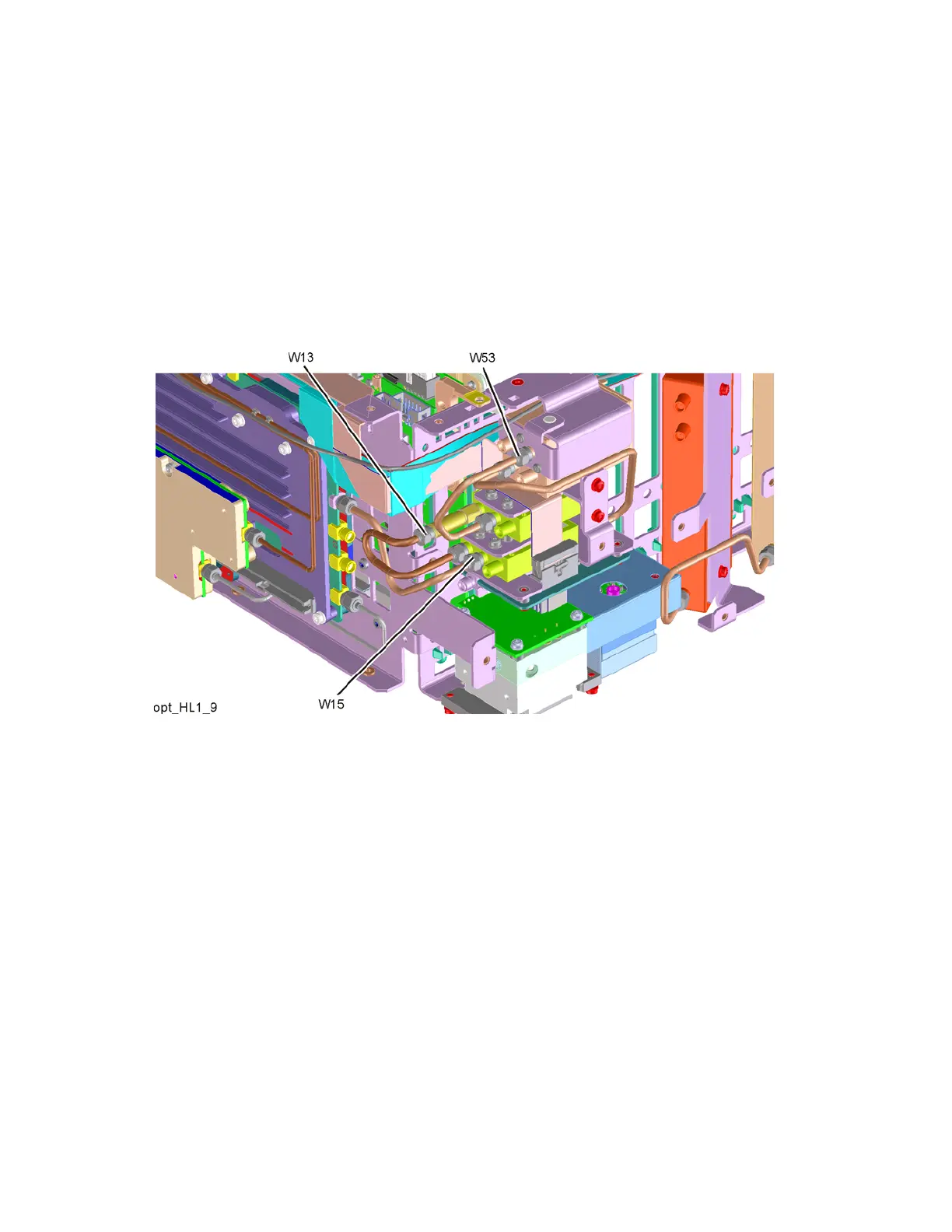

Figure 16-19 W13, W15, and W53 Cables Removal
