Section 5 Scan Mode - Color 5-2
1. 0 Scan Mode – Color

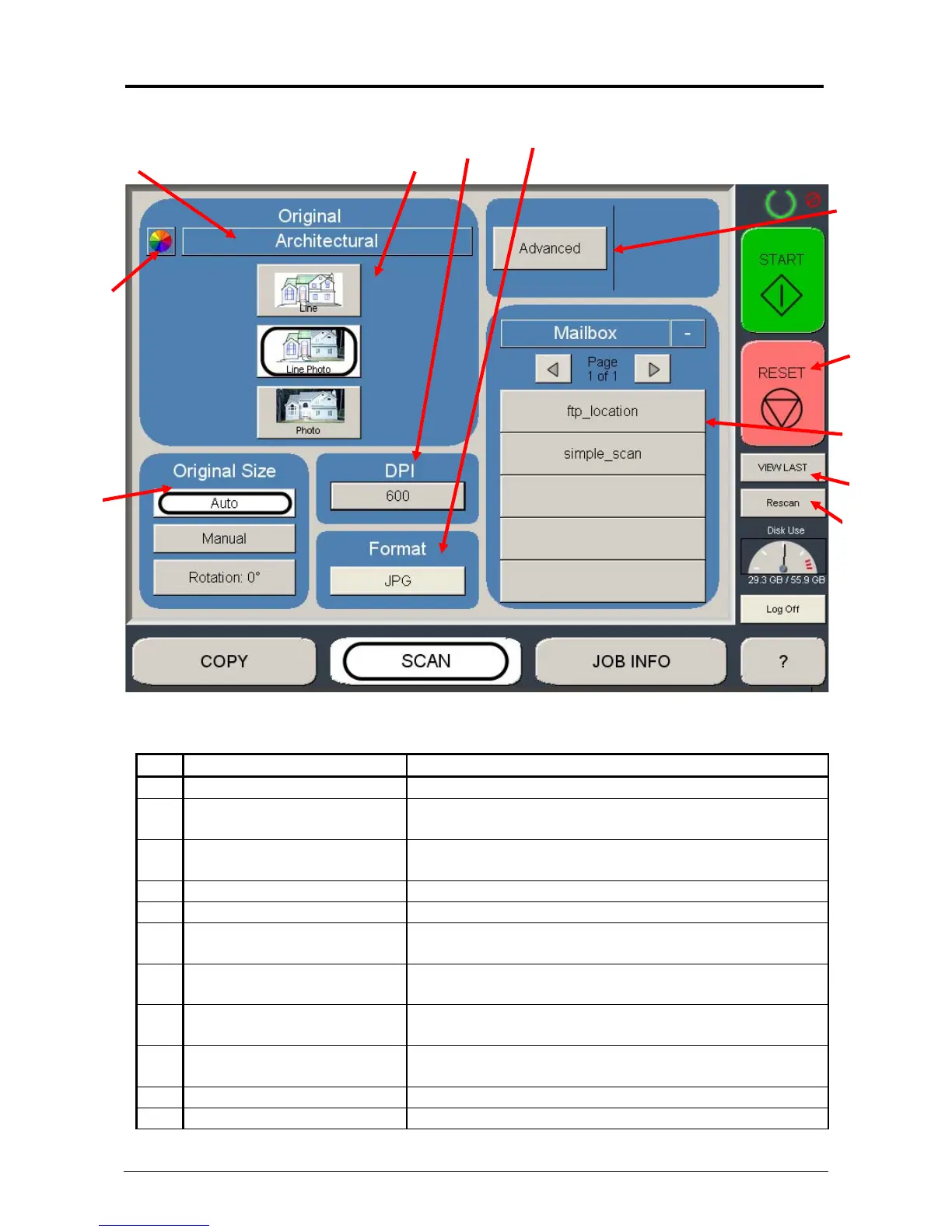

1.1 Main Screen
No. Name Function
1 Mode Selects “Color Mode” while in Scan mode
2 Original Size Use automatic settings or manually set width, length
and rotation of the image.
3 Original Type User Selects the type of original to scan. Also select
either Eng/Arch Mode here.
4 Quality Select the original image type to be scanned - Input
5 DPI Scroll through the image resolution. (DPI)
6 Format Scroll through formats the file will be saved to -
output
7 Advanced Settings Invert, mirror, and edge adjustments preformed /
displayed with this button (sub screen)
8 Reset / Stop Resets the system to default settings. Stops a scan
in process
9 Mailbox Select where the image will be stored after the scan
(KIP Mailbox, FTP, SMB)
10 View Last View the last scanned image
11 Rescan Rescans the last image (replaces)
1
2
3 4
6
7
8
5
10
9
11
To Next Page
