Section 2 Copy Mode - Monochrome 2-8
2. 0 Operation Details

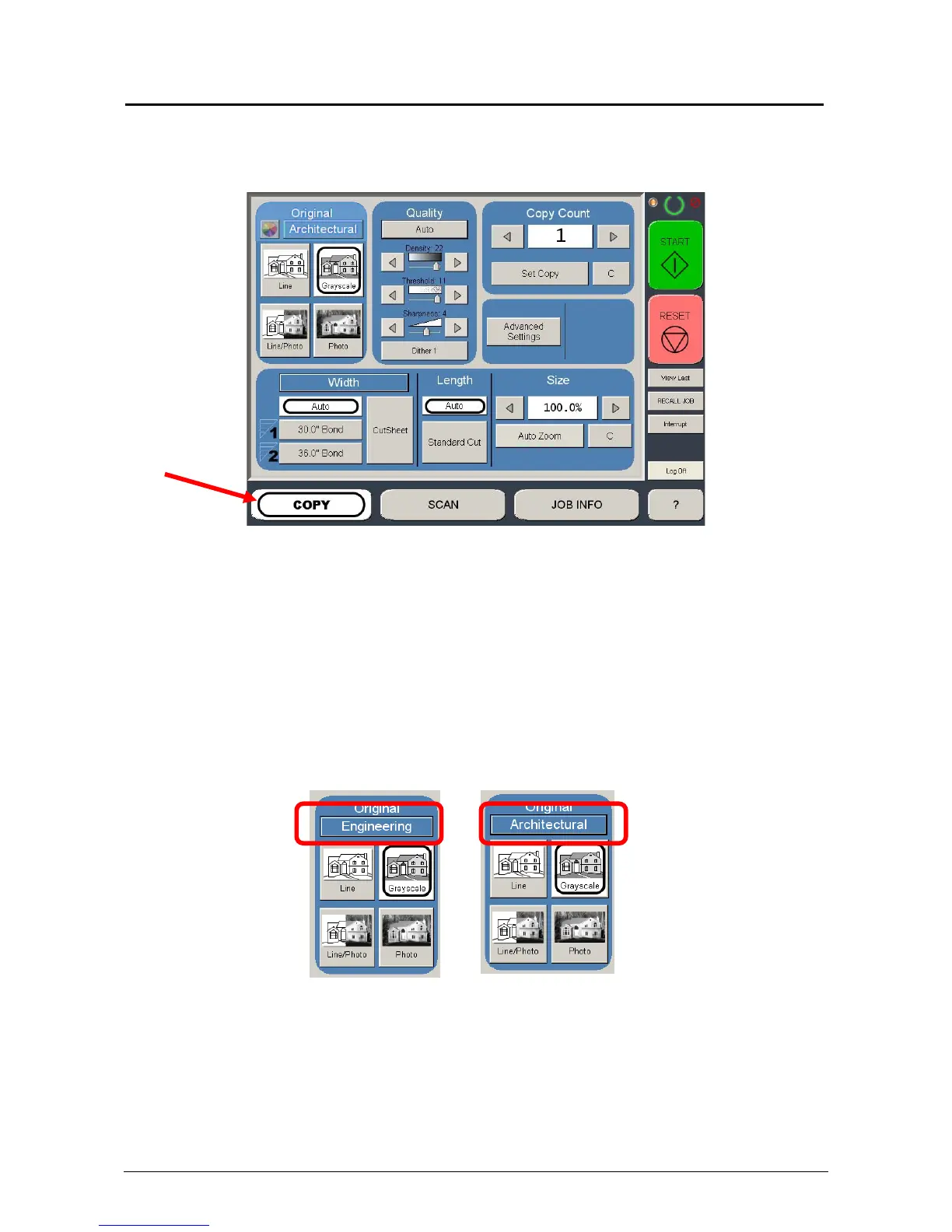

2.1 Main Screen
The main Copy screen is selected with the Copy Button.
This screen contains all user functions for copying. The following pages details the
functions and settings of each button and sub screens that can be used to adjust the
copy mode parameters to achieve the required result.
2.2 Original
This region allows the setting of the Size Mode (Engineering or Architectural) and the
original image type.
2.2.1 Original Size Mode
This button is used to select the Size Mode of Engineering or Architectural.
This will allow the automatic width detection system to determine the image width
when an original is placed in the KIP 3000.
Engineering widths = 34, 22, 17, 11, and 8.5 inches
Architectural widths = 36, 30, 24, 18, 12, and 9 inches
